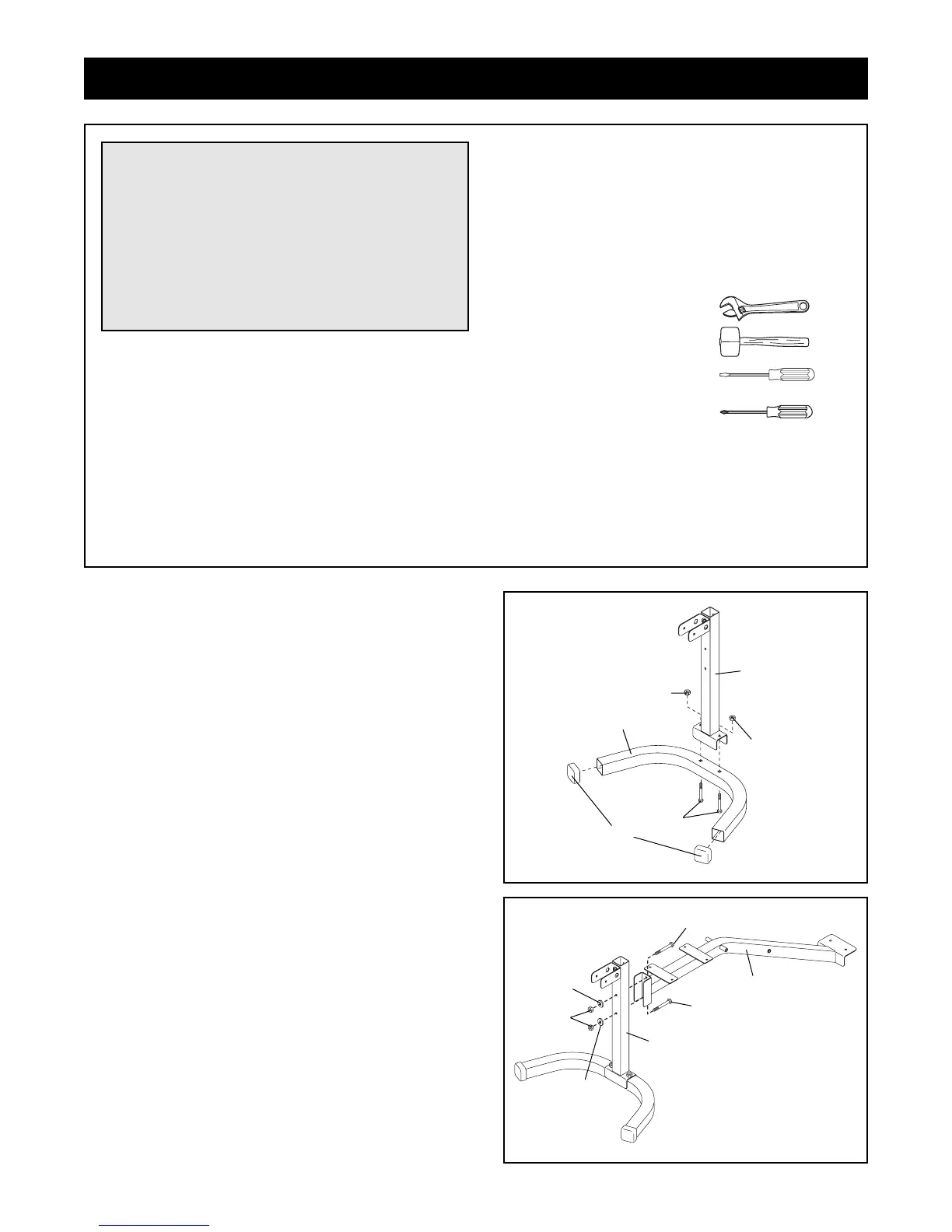

6
1. Before beginning assembly, make sure you
understand the information in the box above.
Important: Some of the parts described in the
assembly steps may be pre-assembled.
Press a 50mm Square Outer Cap (63) onto each
end of the ÒUÓ Base (33).
Attach the Bench Leg (30) to the ÒUÓ Base (33)
using two M10 x 58mm Carriage Bolts (84) and two
M10 Nylon Locknuts (68).
1
Before beginning assembly, carefully read the
following information and instructions:
¥ Assembly requires two people.
¥ Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
¥ Tighten all parts as you assemble them, unless
instructed to do otherwise.
¥ As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
¥ For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
The following tools (not included) are required
for assembly:
¥ Two adjustable wrenches
¥ One rubber mallet
¥ One standard screwdriver
¥ One Phillips screwdriver
¥ Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Assembly
Make Things Easier for Yourself!
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by anyone. However, it is important to
realize that the versatile weight bench has many
parts and that the assembly process will take
time. Most people find that by setting aside plen-
ty of time, assembly will go smoothly.
63
84
68
68
33
30
2. Attach the Bench Frame (26) to the Bench Leg (30)
using two M10 x 65mm Bolts (83), two M10 Flat
Washers (76), and two M10 Nylon Locknuts (68).
2
30
83
83
68
76
76
26
