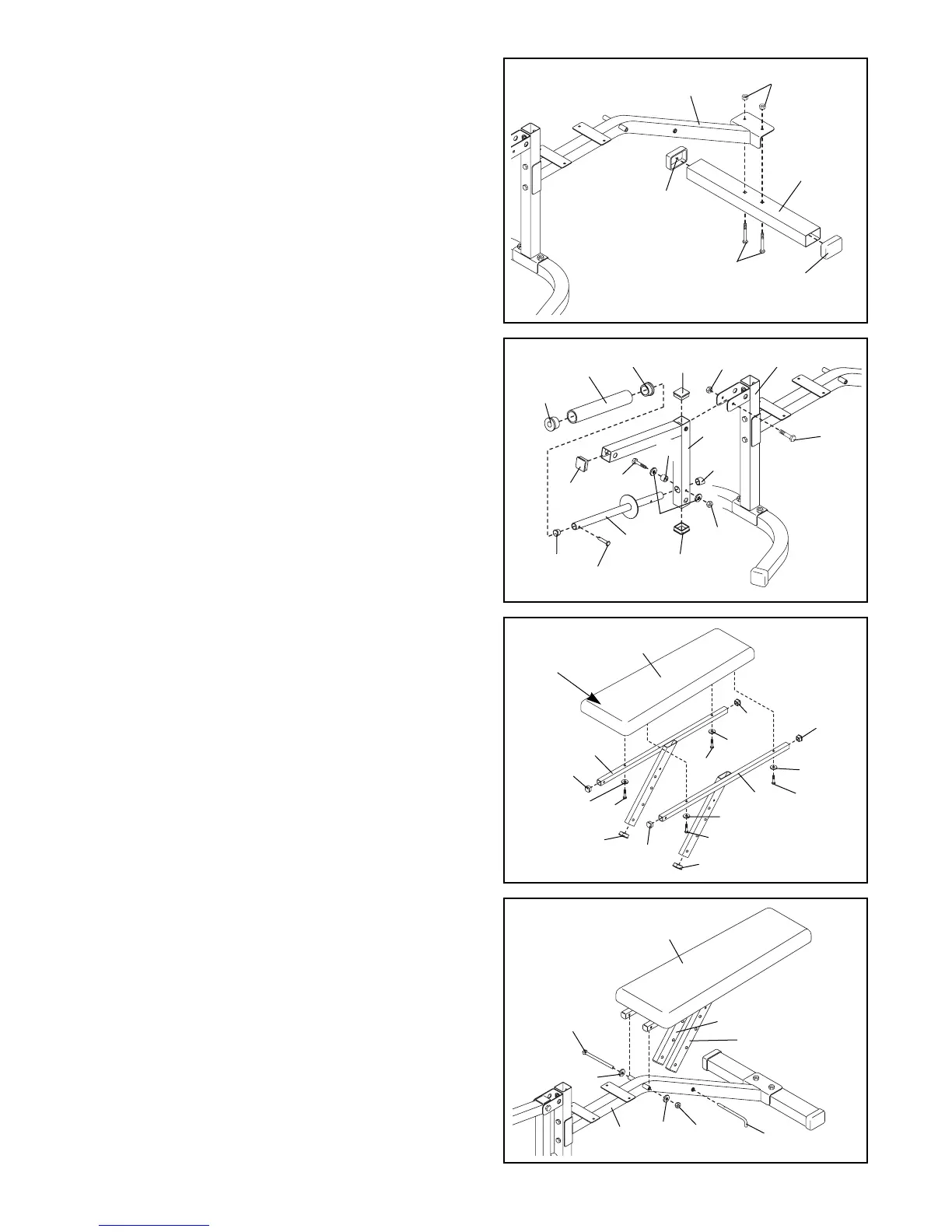

6. Lubricate the M10 x 178mm Bolt (81). Attach the
Backrest Frames (23, 24) to the Bench Frame (26)
with the Bolt, two M10 Flat Washers (76), and an
M10 Nylon Locknut (68).
Secure the Backrest (25) at the desired height by
inserting the Backrest Pin (40) through one of the
sets of holes in the Backrest Frames (23, 24) and
through the hole in the Bench Frame (26).
Make sure the Backrest Pin is completely insert-
ed through both Backrest Frames.
5
7
5. Press the four 1Ó Square Inner Caps (58) into the
ends of the Right and Left Backrest Frames (23,
24). Press the two 1Ó x 2Ó Inner Caps (59) into the
adjustment tubes of the Backrest Frames.
Attach the Backrest (25) to the Backrest Frames
(23, 24) with four M6 x 38mm Screws (85) and four
M6 Washers (86). The Backrest Frames and the
Backrest must be oriented as shown.
4
4. Press three 45mm Square inner Caps (61) into the
Leg Lever (31). Press a 1Ó Round Inner Cap (65)
into the indicated end of the Weight Tube (32).
Insert the Weight Tube into the Leg Lever (31) and
press an Angled Cap (66) onto the other end of the
Weight Tube. Secure the Weight Tube using an M8
x 58mm Bolt (87), two M8 Flat Washers (75), a
10mm Spacer (88), and an M8 Nylon Locknut (69).
Press two Weight Adapter Bushings (37) into the
ends of the Weight Adapter (36). Slide the Weight
Adapter onto the Weight Tube (32) and secure it
with the Weight Adapter Pin (67).
Lubricate an M10 x 65mm Bolt (83). Attach the Leg
Lever (31) to the bracket on the Bench Leg (30)
with the Bolt and an M10 Nylon Locknut (68). Do
not overtighten the Nylon Locknut; the Leg
Lever must pivot freely.
3
62
26
68
84
34
62
6
61
36
37
37
31
66
69
75
88
87
61
65
67
32
61
83
30
68
58
58
58
58
59
59
23
Wide End
25
24
86
86
86
86
85
85
85
85
81
76
68
76
40
25
23
24
26
3. Press a 51mm x 76mm Outer Cap (62) onto each
end of the Bench Base (34).
Attach the Bench Base (34) to the Bench Frame
(26) using two M10 x 58mm Carriage Bolts (84) and
two M10 Nylon Locknuts (68).
