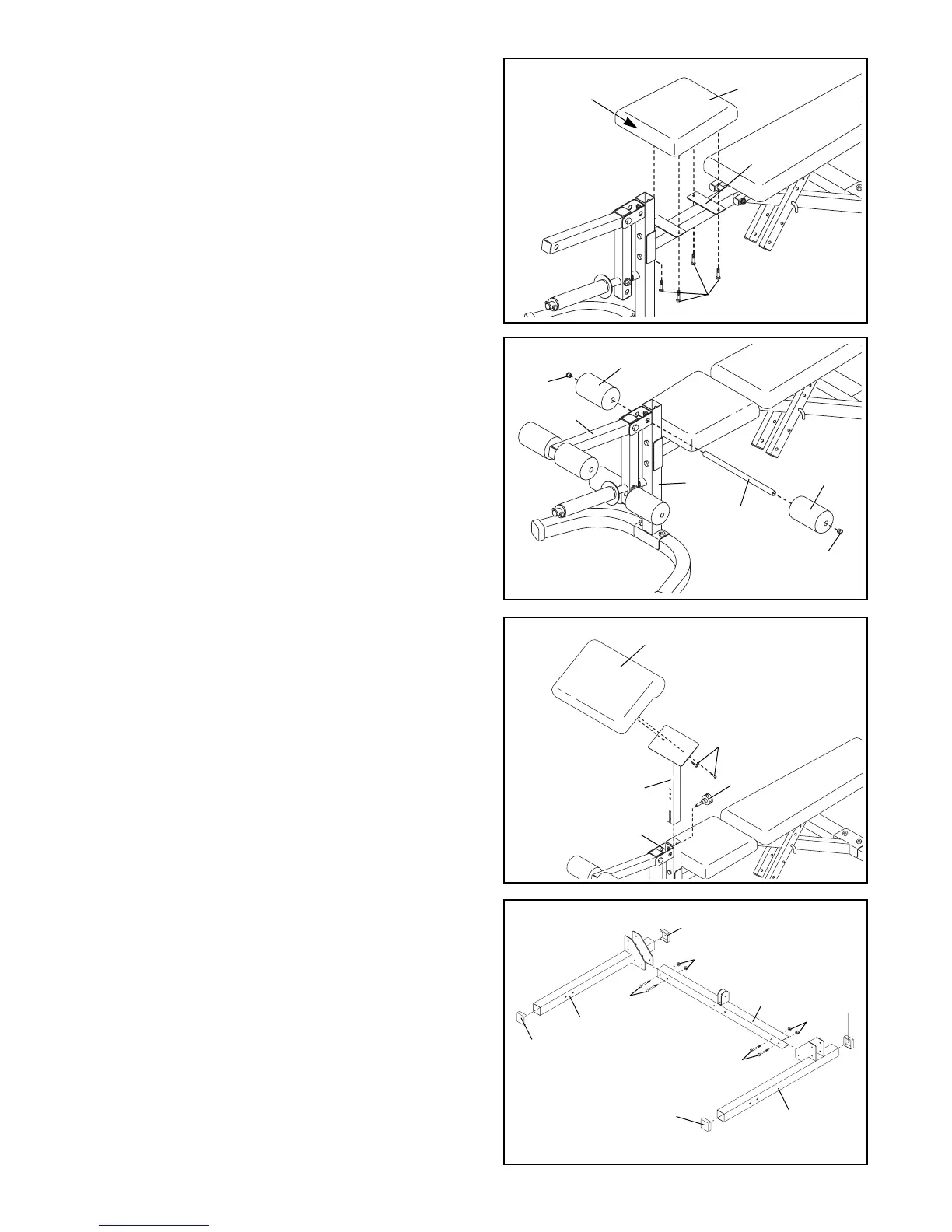

7. With the wide end of the Seat (27) positioned as
shown, attach the Seat to the brackets on the
Bench Frame (26) using four M6 x 16mm Screws
(82).
9. Attach the Curl Pad (29) to the Curl Post (28) with
two M6 x 16mm Screws (82).
Slide the Curl Post (28) into the Bench Leg (30).
Align one of the adjustment holes in the Curl Post
with the adjustment hole in the Bench Leg. Tighten
the Curl Post Adjustment Knob (90) into the holes
in the Curl Post and the Bench Leg. Make sure you
fully tighten the Curl Post Adjustment Knob.
7
10
27
26
Wide End
82
1
56
56
56
56
70
70
68
68
3
2
10. Press 60mm Square Outer Caps (56) onto the ends
of the Right and Left Bases (1, 3).
Attach the Right and Left Bases (1, 3) to the Center
Base (2) using four M10 x 78mm Bolts (70) and
four M10 Nylon Locknuts (68). Do not tighten the
Nylon Locknuts yet.
8
9
64
64
35
30
31
29
82
90
30
28
41
41
8. Tap the six 3/4Ó Round Inner Caps (64) into the
ends of the three Pad Tubes (35).
Insert the Pad Tubes (35) into the indicated holes in
the Leg Lever (31) and the Bench Leg (30). Slide
two Foam Pads (41) onto each Pad Tube.
To Next Page
