16

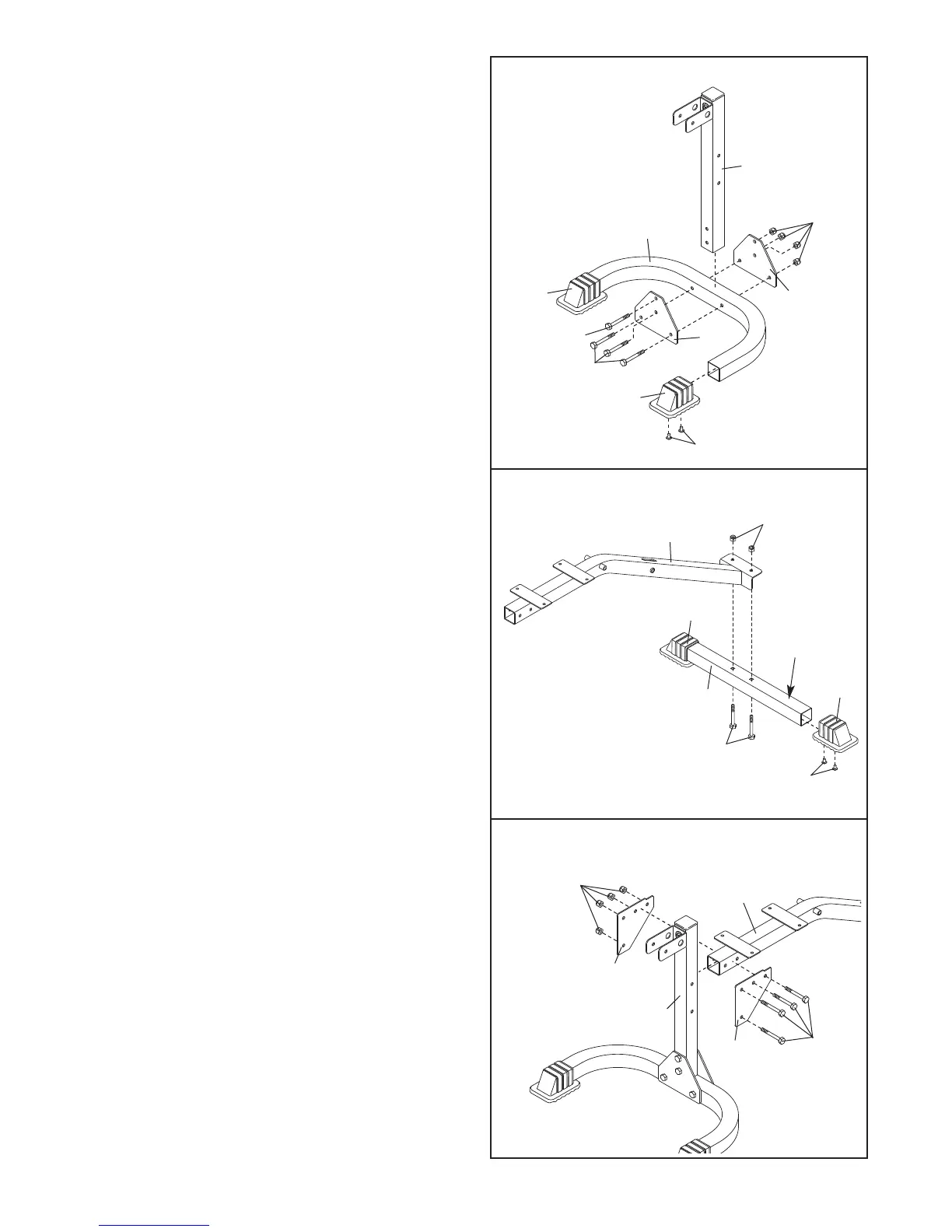

32. Attach a Small Base Cap (20) to the Bench Base
(3) with two M4 x 16mm Screws (36). Attach
another Small Base Cap to the Bench Base in
the same manner.
Attach the Bench Leg (4) to the Bench Base (3)
with four M10 x 68mm Bolts (98), two Leg Plates
(25), and four M10 Nylon Locknuts (34). Do not
tighten the Locknuts yet.
33. Attach a Small Base Cap (20) to the Stabilizer (2)
with two M4 x 16mm Screws (36). Attach anoth-
er Small Base Cap to the Stabilizer in the
same manner.
Attach the Bench Frame (1) to the Stabilizer (2)
with two M10 x 58mm Carriage Bolts (77) and
two M10 Nylon Locknuts (34). Make sure the
decal is in the indicated position. Do not tight-
en the Locknuts yet.
34.
Attach the Bench Frame (1) to the Bench Leg (4)
with four M10 x 68mm Bolts (98), two Notched
Plates (24), and four M10 Nylon Locknuts (34).
Do not tighten the Locknuts yet.
32
33
34
34
98
36
98
20
20
25
25
3
4
36
1
4
24
98
34
24
20
2
Decal
77
1
20
34
To Next Page
