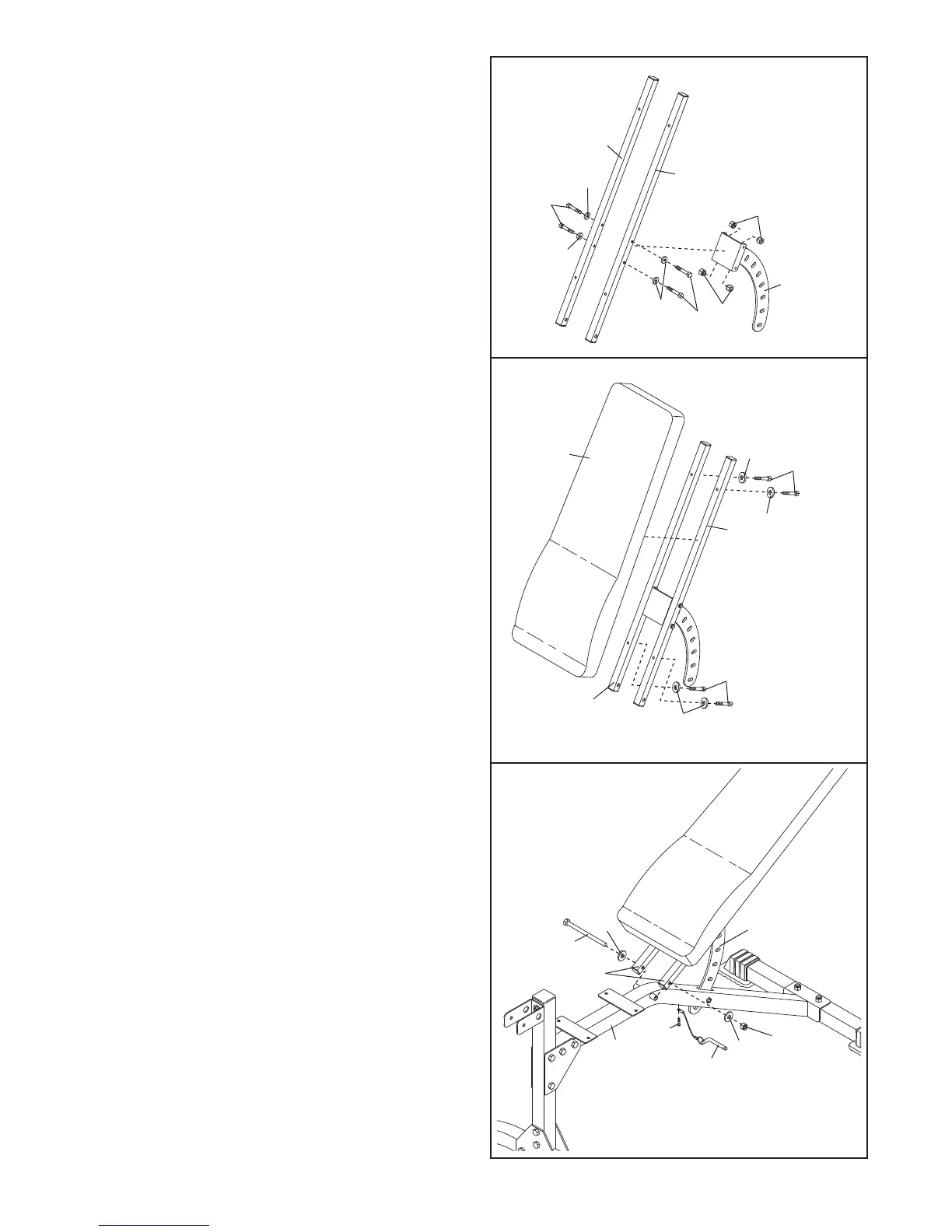

35. Attach the Backrest Frames (6) to the Backrest
Bracket (16) with four M10 x 45mm Bolts (33),
four M10 W
ashers (35), and four M10 Nylon
Locknuts (34).
Make sure the Backrest Frames
are oriented with the indicated holes closer to
the bottom. Do not tighten the Locknuts yet.
37. Insert the Backrest Bracket (16) into the slot in
the Bench Frame (1) and engage the Bench Pin
(23) into the Bench Frame and one of the holes in
the Backrest Bracket.
Attach the Backrest Frames (6) to the Bench
Frame (1) with an M10 x 156mm Bolt (100), two
M10 W
ashers (35), and an M10 Nylon Locknut
(34).
Do not overtighten the Locknut; the
Bracket Frames must be able to pivot easily.
Attach the tether on the Bench Pin (23) to the
bottom of the Bench Frame (1) with an M4 x
16mm Screw (36).
Tighten the M10 Nylon Locknuts (34) used in
steps 32–37.
36. Attach the Backrest (11) to the Backrest Frames
(6) with four M6 x 38mm Screws (99) and four M6
Washers (78).
35
36
6
6
16
34
34
33
33
35
35
35
6
1
1
78
99
78
6
78
36
23
35
35
6
16
1
100
34
99
37
