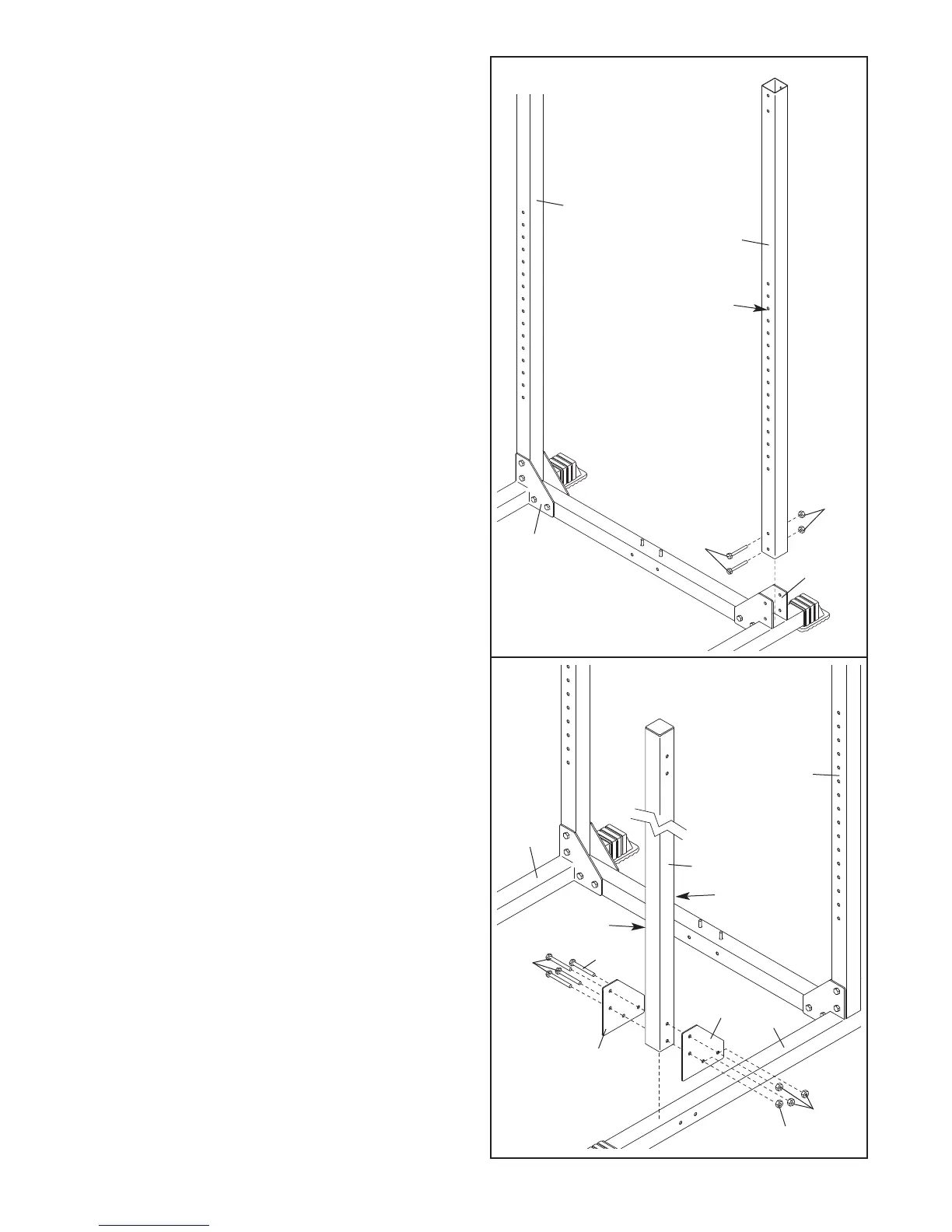

2. Attach a Rear Upright (43) to the Left Base (40)
with two M10 x 78mm Bolts (32) and two M10
Nylon Locknuts (34).
Note: The Rear Uprights
are shorter than the Front Uprights (not
shown).
Make sure the holes are on the side
shown. Do not tighten the Locknuts yet.
Repeat this step with the other Rear Upright
(43) and the Right Base (38).
3. Attach the Left Front Upright (44) to the Left Base
(40) with four M10 x 78mm Bolts (32), two Rack
Joint Plates (85), and two M10 Nylon Locknuts
(34). Do not tighten the Locknuts yet.
Make sure the holes on the Left Front Upright
(44) face the holes on the Rear Upright (43),
and that the numbers on the Left Front
Upright face the numbers on the Right Front
Upright (not shown).
Repeat this step with the right Front Upright
(not shown) and the Right Base (38).
2
3
43
43
Holes
40
34
32
38
43
44
Numbers
Holes
32
32
85
85
40
38
34
34
