8

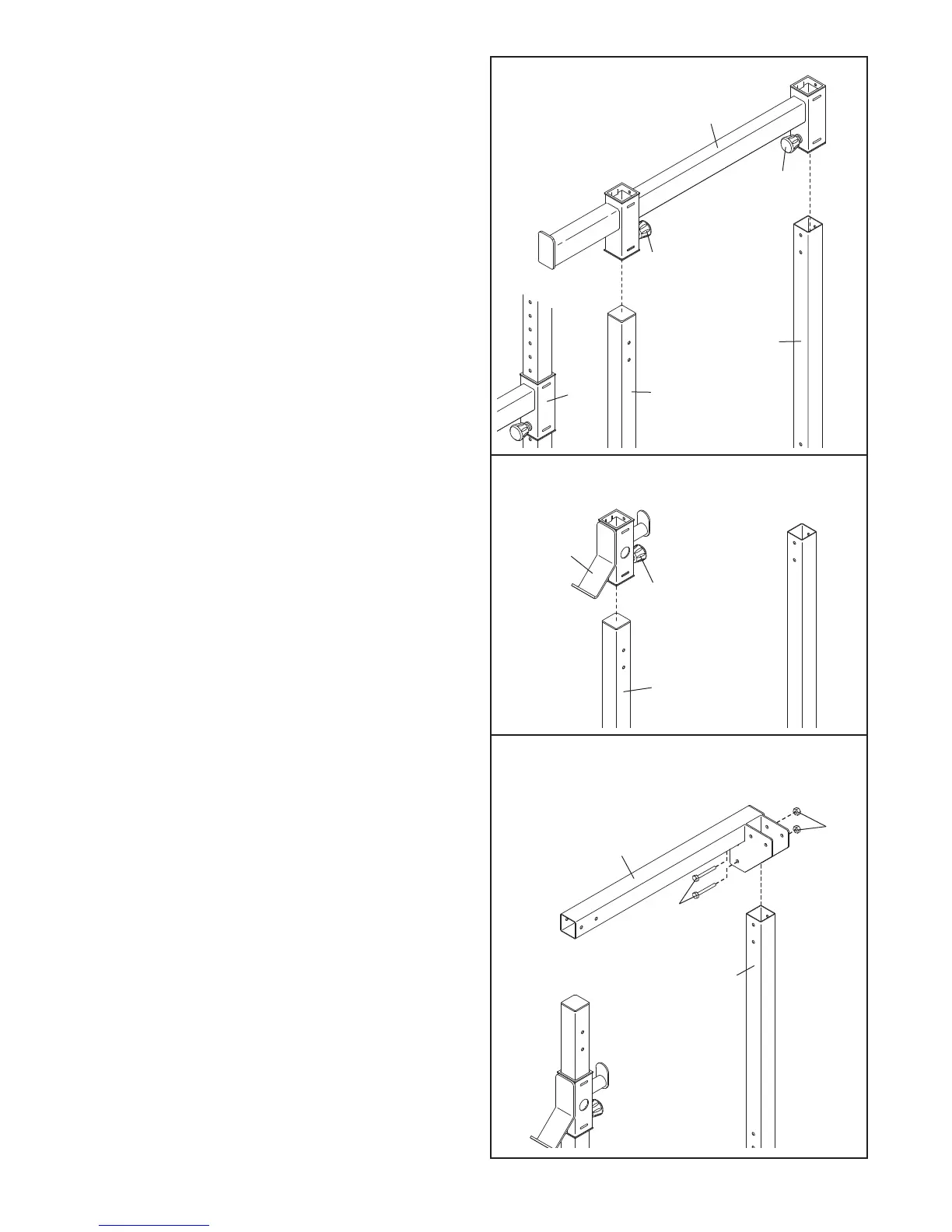

4. Loosen the two Adjustment Knobs (22) on the
Left Safety Spotter (51) by turning them counter-
clockwise. Pull both Knobs out at the same time
and slide the Left Safety Spotter (51) onto the
Left Uprights (43, 44) and engage and tighten the
Adjustment Knobs (22) into a set of holes in the
Uprights.
Repeat this step with the Right Safety Spotter
(50) and Right Uprights (not shown).
5. Loosen the Adjustment Knob (22) on the Right
Weight Rest (52) by turning it counterclockwise.
Pull the Knob out and slide the Right Weight Rest
(52) onto the Right Front Upright (30). Engage
and tighten the Adjustment Knob (22) into a hole
in the Upright.
Repeat this step with the Left Weight Rest
(not shown) and the Left Front Upright (not
shown).
6. Attach the Right Top Frame (47) to the right Rear
Upright (43) with two M10 x 78mm Bolts (32) and
two M10 Nylon Locknuts (34).
Do not tighten the
Locknuts yet.
Repeat this step with the Left Top Frame (not
shown) and the left Rear Upright (not shown).
4
51
22
22
30
44
43
22
50
5
6
52
47
32
43
34
