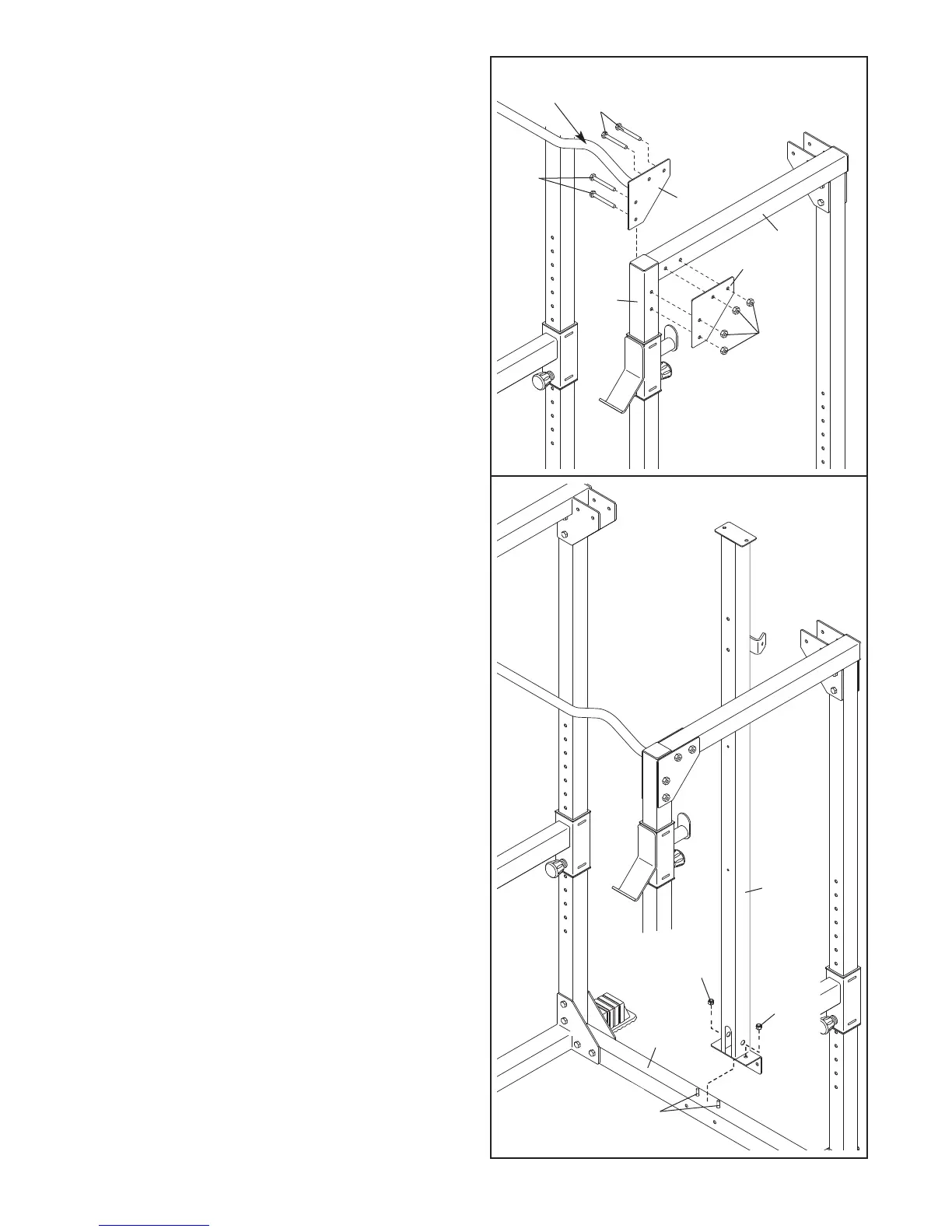

7. Attach the Chin-up Bar (54), with the bends going
up, to the Left Front Upright (44) and the Left Top
Frame (48) with four M10 x 78mm Bolts (32), a
Chrome Joint Plate (108), and four M10 Nylon
Locknuts (34).
Do not tighten the Locknuts yet.
Attach the Chin-up Bar (54) to the Right Front
Upright (not shown) and the Right Top Frame
(not shown) in the same manner.
8. Attach the Center Upright (45) to the Center Base
(39) with the two M10 x 75mm Carriage Bolts
(90), and two M10 Nylon Locknuts (34). Do not
tighten the Locknuts yet.
7
32
54
Bend
32
34
108
44
48
8
90
45
39
34
34
