Weider WESY09321 - Page 11

11

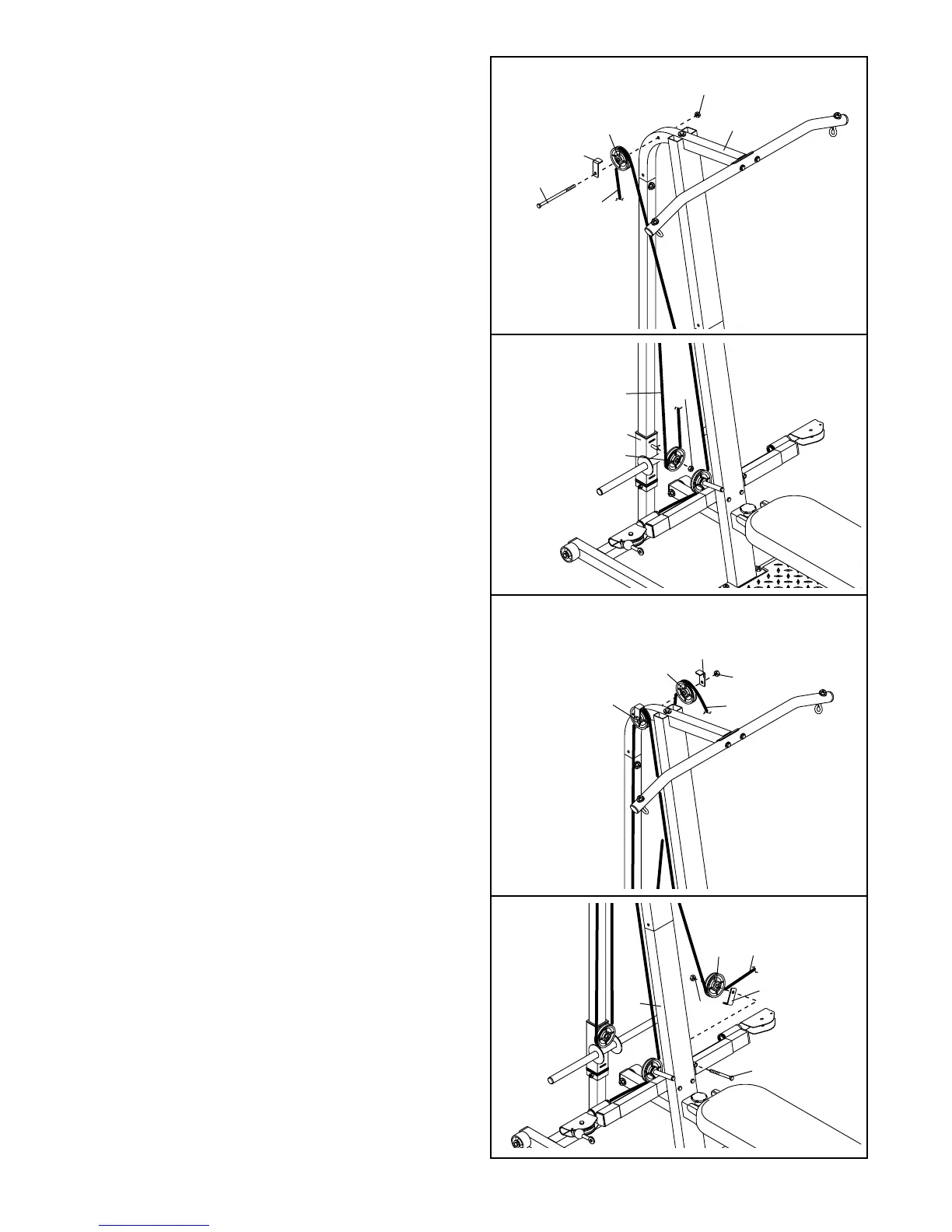

20. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a Cable Trap (29) to
the Top Frame (9) with the M10 x 112mm Bolt
(69) and an M10 Nylon Locknut (76). Do not
tighten the Locknut yet; another Pulley will be
attached to it in step 22.
22. Remove the M10 Nylon Locknut (76) used in step
20.
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a Cable Trap (29) to
the M10 x 112mm Bolt (69) with the M10 Nylon
Locknut (76).
23. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a Cable Trap (29) to
the Upright Base (3) with an M10 x 132mm Bolt
(72) and an M10 Nylon Locknut (76).
21. Wrap the Long Cable (80) around a 90mm Pulley
(28) in the direction shown. Attach the Pulley to
the Weight Carriage (18) with an M10 Nylon
Locknut (76).
20
21
22
23
69
29
28
80
76
9
80
18
28
76
28
69
76
80
29
28
80
29
76
72
3
