12

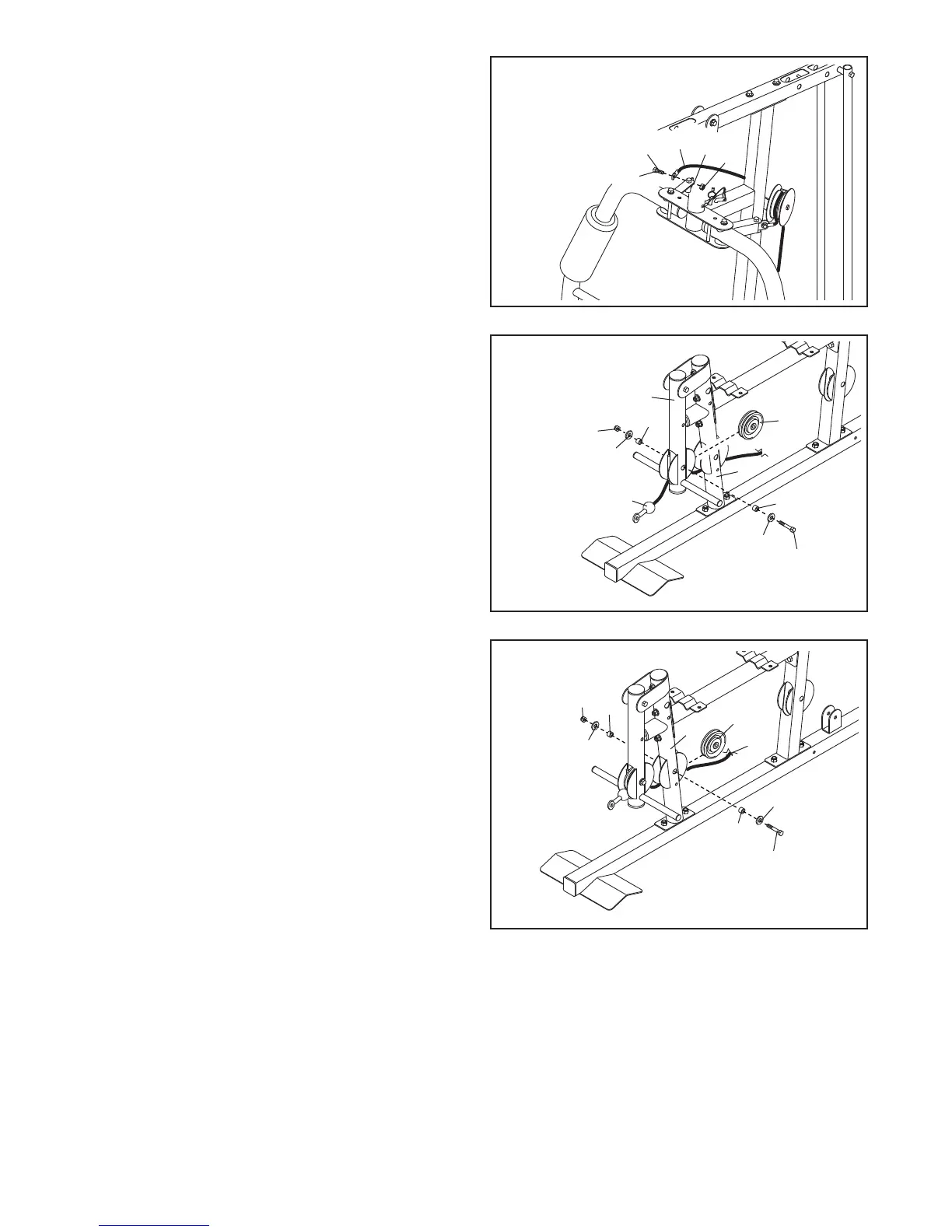

15. Grease an M8 x 22mm Shoulder Bolt (65). Attach
the Arm Cable (54) to the indicated Cable Pivot
(39) with the Shoulder Bolt and an M8 Locknut
(
58). Make sure that the cable end can pivot
easily on the Shoulder Bolt.
15
16. Identify the Low Cable (53). Route the Cable
through the Leg Lever (8) and the Front Leg (7).
Attach a 90mm Pulley (48) inside the Leg Lever
(8), over the Low Cable (53), with an M10 x
67mm Bolt (71), two M10 Washers (57), two
12mm Spacers (52), and an M10 Locknut (56).
8
7
53
52
52
57
57
48
71
56
16
17. Attach a 90mm Pulley (48) inside the Front Leg
(7), over the Low Cable (53), with an M10 x
67mm Bolt (71), two M10 Washers (57), two
12mm Spacers (52), and an M10 Locknut (56).
56
7
53
52
52
57
57
48
71
17
65
G
rease
54
39
58
To Next Page
