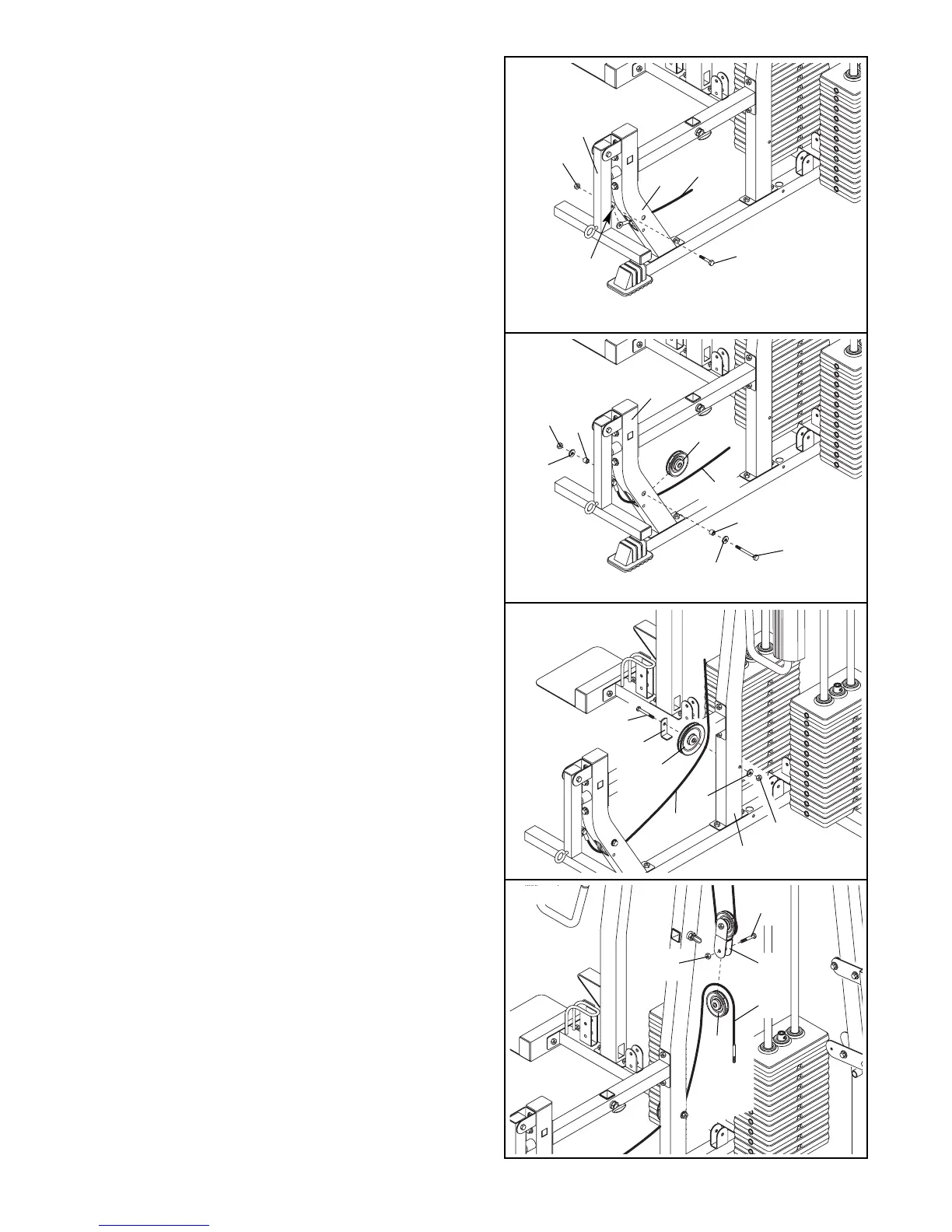

32. Locate the Leg Lever Cable (75), which is 98 1/2”
long and has an eyelet on one end and a thread-
ed pin on the other end. Route the eyelet end of
the Cable through the Seat Upright (9) and attach it
to the tab on the Leg Lever (10) with a 5/16” x 1”
Shoulder Bolt (103) and a 5/16” Nylon Locknut (86).
33. Attach a 3 1/2” Pulley (78) inside of the Seat
Upright (9) with a 3/8” x 2 3/4” Bolt (101), two 3/8”
Washers (91), two 1/2” Spacers (89), and a 3/8”
Nylon Locknut (87) as shown.
34. Route the Leg Lever Cable (75) under a 4 1/2”
Pulley (119). Attach the Pulley and a Large Cable
Trap (121) to the indicated side of the Butterfly
Upright (3) with a 3/8” x 3 3/4” Bolt (122), a 3/8”
Washer (91), and a 3/8” Nylon Jamnut (113). Make
sure that the Large Cable Trap is turned to hold
the Cable in the groove of the Pulley.
35. Wrap the Leg Lever Cable (75) over a 3 1/2” Pulley
(78). Attach the Pulley to the Double “U”-bracket
(62) with a 3/8” x 1 3/4” Bolt (93) and a 3/8” Nylon
Locknut (87).
