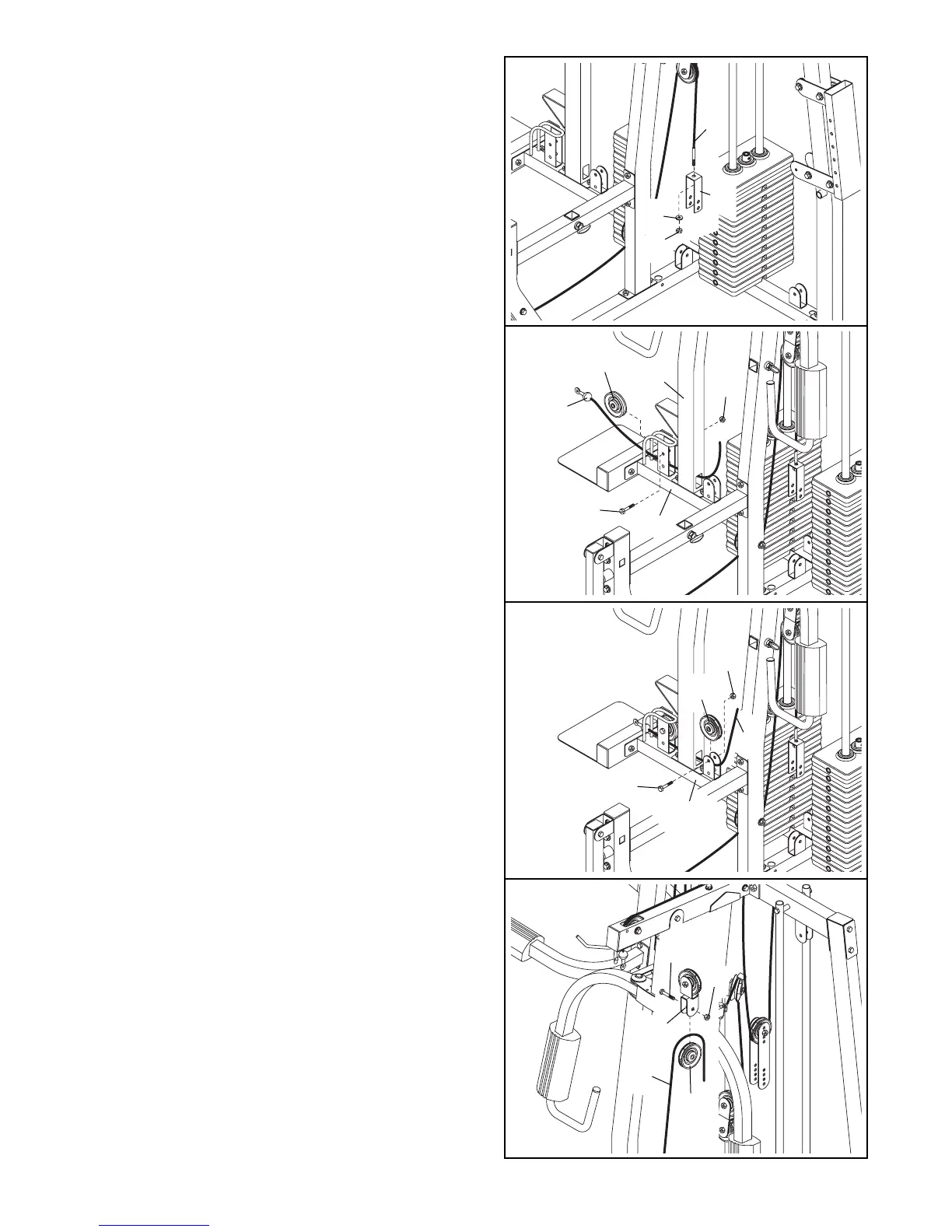

36. Remove the preattached 3 1/2” Pulley (not
shown) from the “U”-bracket (64).
Attach the end of the Leg Lever Cable (75) to the
“U”-bracket (64) with a 1/4” Washer (97) and a 1/4”
Nylon Locknut (34). Note: Do not completely
tighten the Nylon Locknut; it should be thread-
ed only two turns onto the end of the Cable.
37. Locate the VKR Low Cable (72), which is the
only remaining cable that has an eyelet on one
end and a ball on the other end. Route the eyelet
end of the Cable through the cage on the Long
Base (120) and through the VKR Upright (5) as
shown.
Attach a 3 1/2” Pulley (78) to the indicated bracket
on the Long Base (120) with 3/8” x 1 3/4” Bolt (93)
and a 3/8” Nylon Locknut (87).
38. Wrap the VKR Low Cable (72) under a 3 1/2”
Pulley (78). Attach the Pulley to the indicated brack-
et on the Long Base (120) with a 3/8” x 1 3/4” Bolt
(93) and a 3/8” Nylon Locknut (87).
39. Wrap the VKR Low Cable (72) over a 3 1/2” Pulley
(78). Attach the Pulley to the Offset Double “U”-
bracket (61) with a 3/8” x 1 3/4” Bolt (93) and a 3/8”
Nylon Locknut (87).
