Weider WESY96310 - Page 6

6

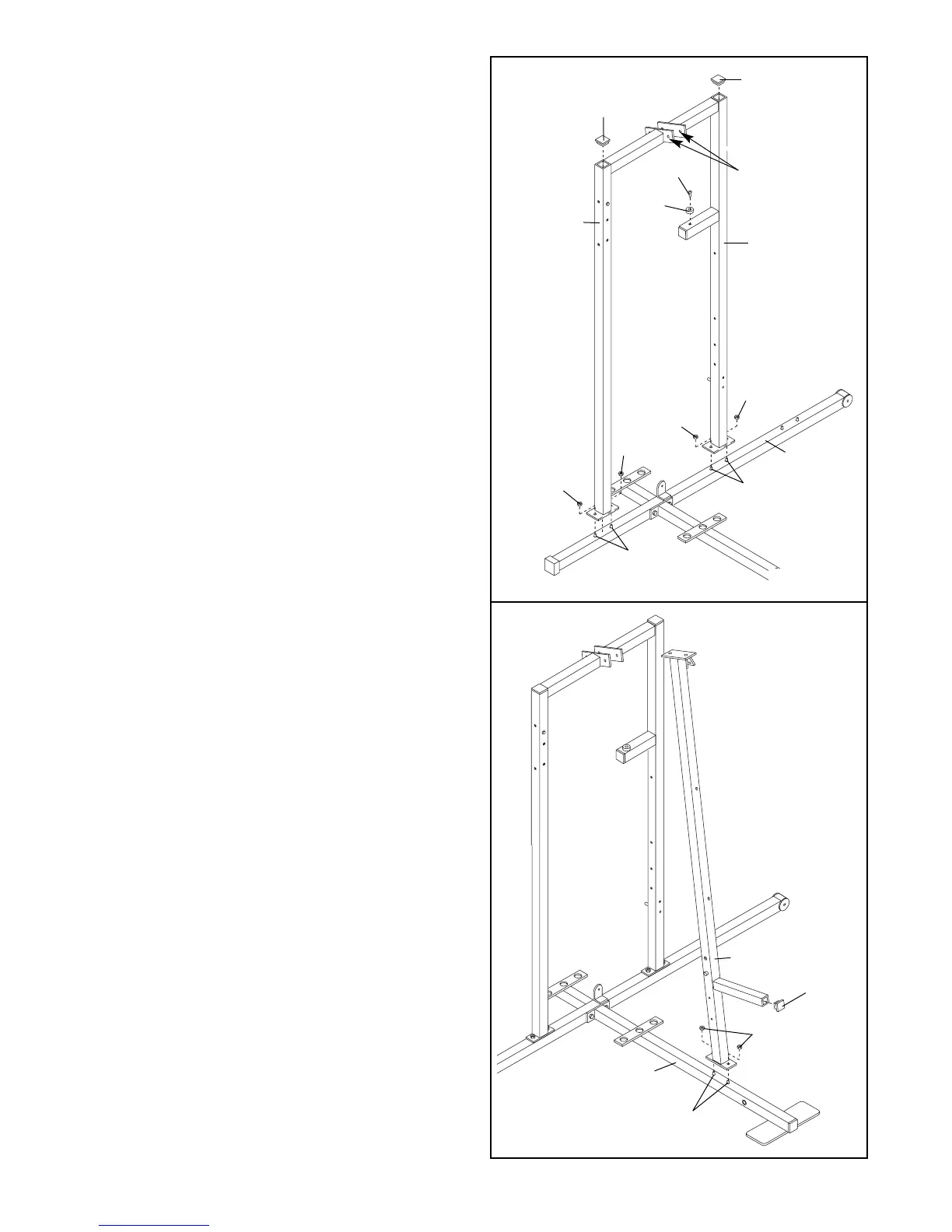

2. Press a 2” Square Inner Cap (27) into the Leg
Press Upright (56). Press a 2” Square Inner Cap
into the VKR Upright (74).
Slide the VKR Upright (74) and the Leg Press
Upright (56) onto the indicated 5/16” x 2 1/2”
Carriage Bolts (1) in the Stabilizer (5). Note: The
high side of the brackets on the VKR Upright
and Leg Press Upright should be on the side
shown. Hand tighten four 5/16” Nylon Locknuts
(3) onto the Carriage Bolts. Do not tighten the
Nylon Locknuts yet.
Attach the Rubber Bumper (91) to the Leg Press
Upright (56) with the #8 x 1/2” Self-tapping Screw
(87).
3. Press a 1” Square Inner Cap (6) into the Front
Upright (42).
Slide the Front Upright (42) onto the 5/16” x
2 1/2” Carriage Bolts (1) in the Base (4). Hand-
tighten a 5/16” Nylon Locknut (3) onto each
Carriage Bolt. Do not tighten the Nylon
Locknuts yet.
2
27
27
1
1
56
74
3
3
3
3
5
High Sides
of Brackets
3
42
6
4
1
3
87
91
