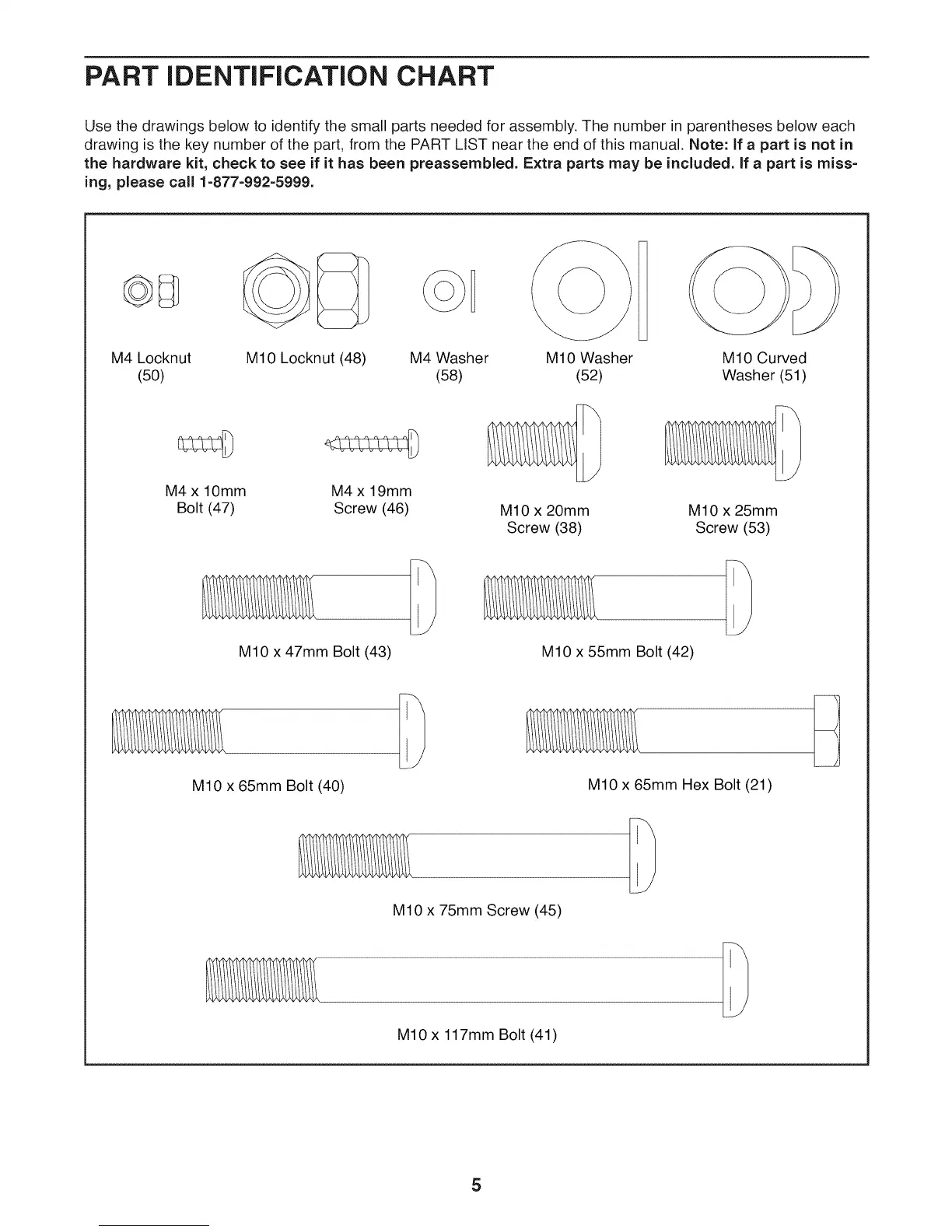

PART iDENTiFiCATiON CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in
the hardware kit, check to see if it has been preassembled. Extra parts may be included, if a part is miss-
ing, please call 1=877=992=5999.
M10 Locknut (48)
D
M4 Locknut M4 Washer M10 Washer M10 Curved
(50) (58) (52) Washer (51)
M4 x lOmm M4 x 19mm
Bolt (47) Screw (46)
MIO x 47mm Bolt (43)
MIO x 20mm MIO x 25mm
Screw (38) Screw (53)
M10 x 55mm Bolt (42)
M10 x 65mm Bolt (40) MIO x 65mm Hex Bolt (21)
M10 x 75mm Screw (45)
MIO x 117mm Bolt (41)
5
