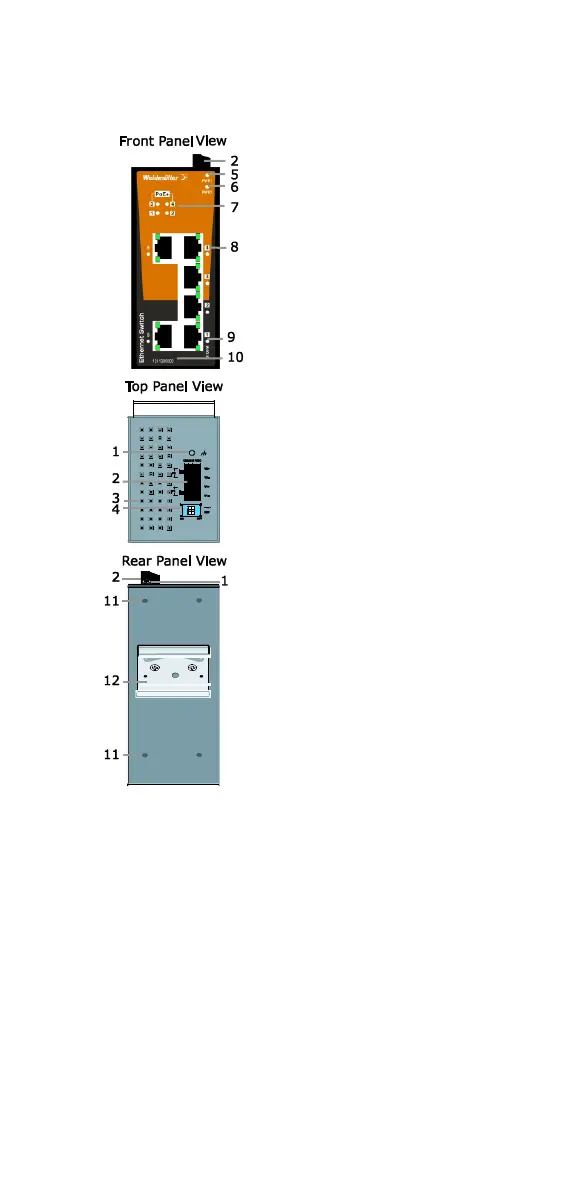

Panel Layout of

IE-SW-BL06(T)-2TX-4PoE

1. Grounding screw

2. Terminal block for power

input P1/P2

3. Heat dissipation orifices

4. DIP switches

5. Power input P1 LED

6. Power input P2 LED

7. PoE LED

8. 10/100BaseT(X) port

9. TP port’s 10/100 Mbps

LED

10. Article Number

11. Screw hole for wall

mounting kit

12. DIN-Rail kit
