3-8 Weinig Tools Tech. Dok. / WNW 850 02 / 02.2005.A / © MICHAEL WEINIG AG

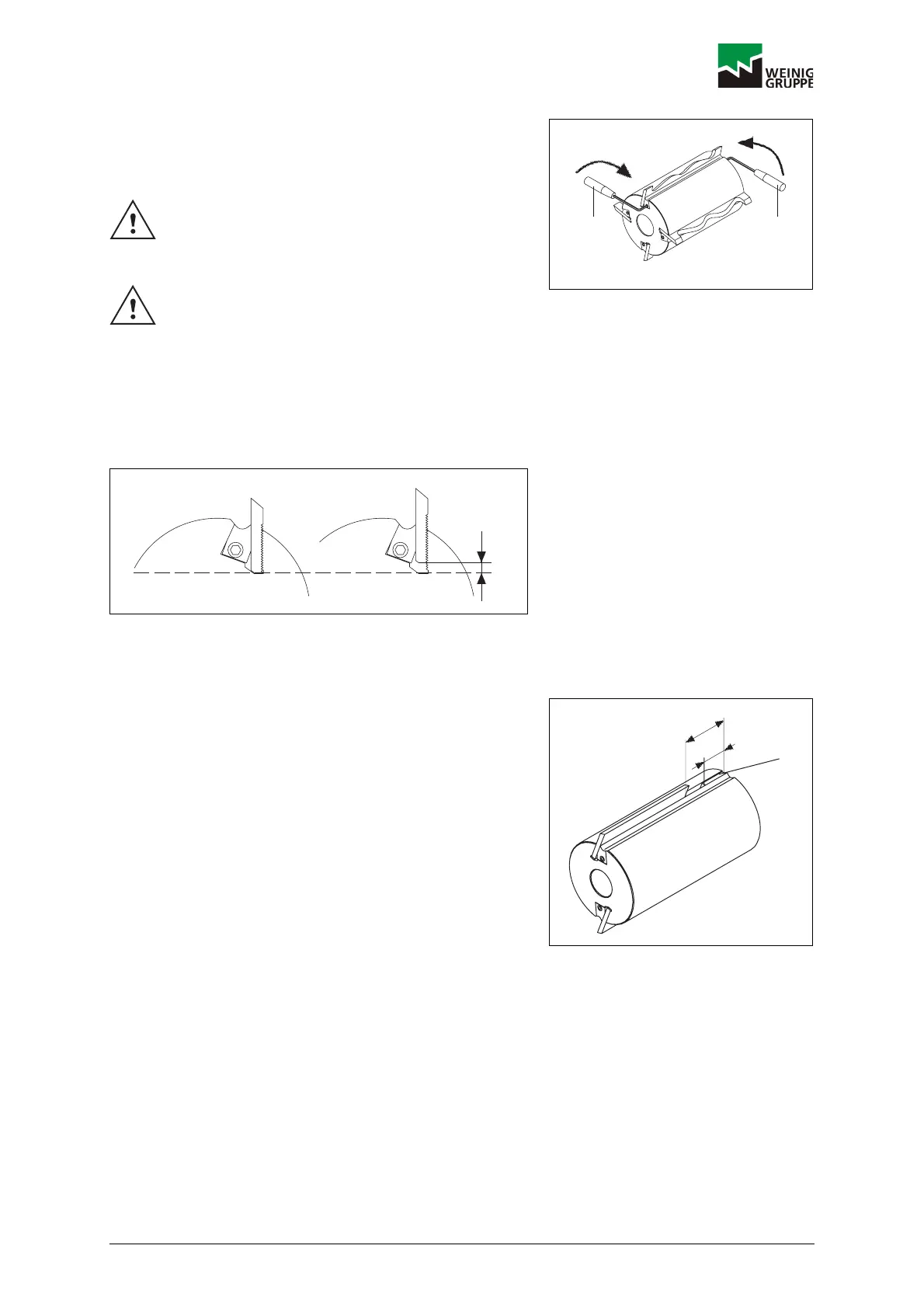

Normal clamping
3. Use two angled Allen keys (3) with shank to clamp
the V-ledge and tighten the clamping screws
simultaneously. Torque screws down to 25 Nm.
4. Check that cutters are correctly seated in the
serration.
5. Note the maximum cutter adjustment (a).
a = 4 spaces (6.4 mm)
Blind lugs (1) must be fitted to prevent the clamping
ledges from bending when using profiled cutters which
are more than 20 mm shorter than the clamping ledges.
Length L
1
= 0.5 x L
2
Never tension the complete cutter groove in
one operation, otherwise the tool could
become deformed.
Do not use damaged Allen keys or keys on
which the hexagon head has become round,
as this may result in damage to the clamping
screws.
33
DOKW0060
a
DOKW0052
1
DOKW0061
2
L
1
L
