Normal clamping

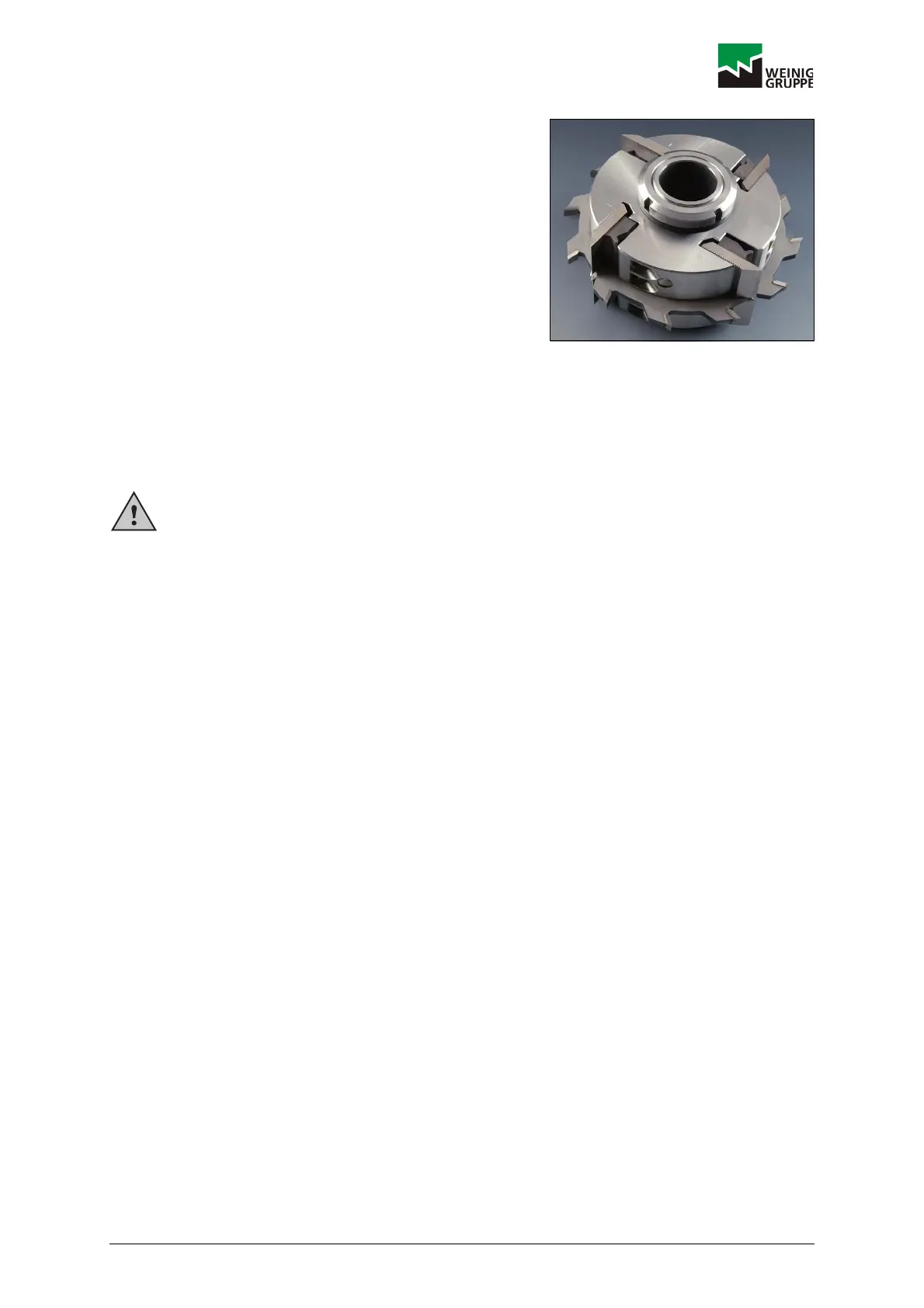

3.6 Weinig tongue and groove cutterhead
508 / 518
3.6.1 General
The Weinig cutterhead 508 / 518 is a heavy-duty cutter.
All the relevant safety regulations and the instructions in
this operating manual must be closely followed in order
to ensure safe use and handling of this tool.
Please read these instructions through carefully before
using the tool.
3.6.2 Intended use
The profile cutterhead is only approved for mechanical
feed systems and is used for the following purposes:
Planing and profiling work on solid wood (hard and soft
wood) and wood substitutes.
Applications: see technical data.
3.6.3 Special safety instructions for tool 508 / 518
• Note the markings for the minimum cutter clamping
length at the tool ends.
• Ensure that parts are fitted correctly when changing
cutters.
• Clamping ledges and cutters must always be
clamped with at least two clamping screws.
• The length of the clamping ledge must correspond
with that of the cutters when using narrow cutters.
• Remove any unused clamping screws when using
shorter clamping ledges.
• Check that the profiled cutters are correctly seated in
the serration.
• Insert all cutters in the serration in the same position
(distance from bottom of groove).
• Cutters must be fitted successively on opposite
sides.
Chapter 1 Safety must be read through
carefully and observed before using the
tool.
