Normal clamping

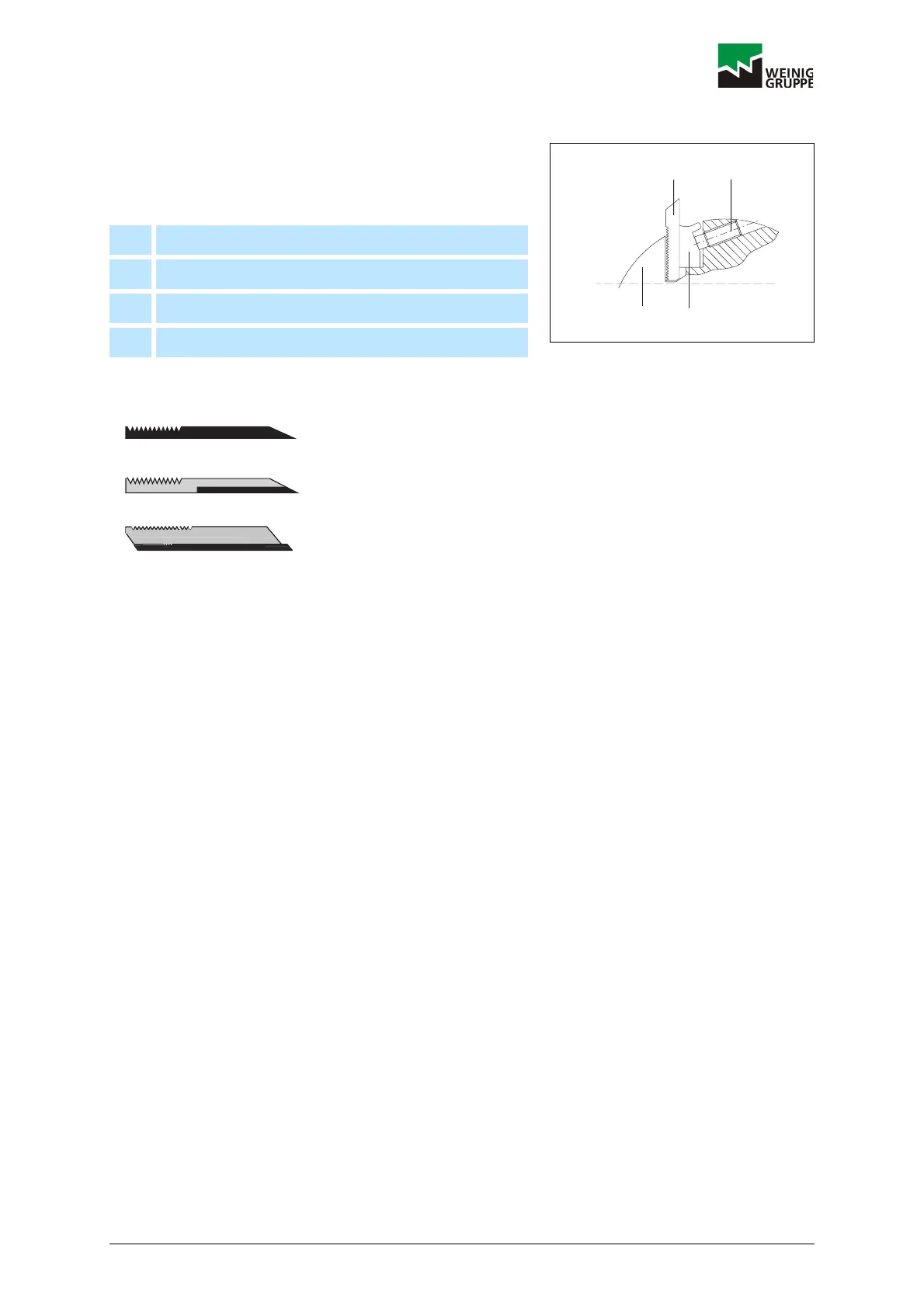

3.6.4 Mechanical design of the tool
Profile cutterhead with profiled cutters. Solid steel body.
Robust, reliable construction for low-noise, vibration-
free operation.
3.6.5 Removing and fitting the cutters
Removal:
1. Clean the clamping screws in the cutterhead before
removing the cutters.
2. Undo the clamping screws on the cutterhead,
working from the outside inwards.
3. Push clamping ledge out to the side.
4. Remove cutters from the serration.
1 Body
2 Clamping ledge
3 Clamping screw
4 Profiled cutter
Solid,
with serrated back
Tipped,
with serrated back
DoubleBack tip
with carrier plate
2
34
DOKW0065
1
