3 Installation
3.1 Installation of ACOPOS drives
The ACOPOS drive may only be used in environments corresponding to pollution level II (non-conductive
contamination). The maximum operating temperature of 40 °C (104°F) specified in the technical data as well
as the protective type IP20 must be observed on installation of the devices.
3.1.1 Model for 110 - 230VAC

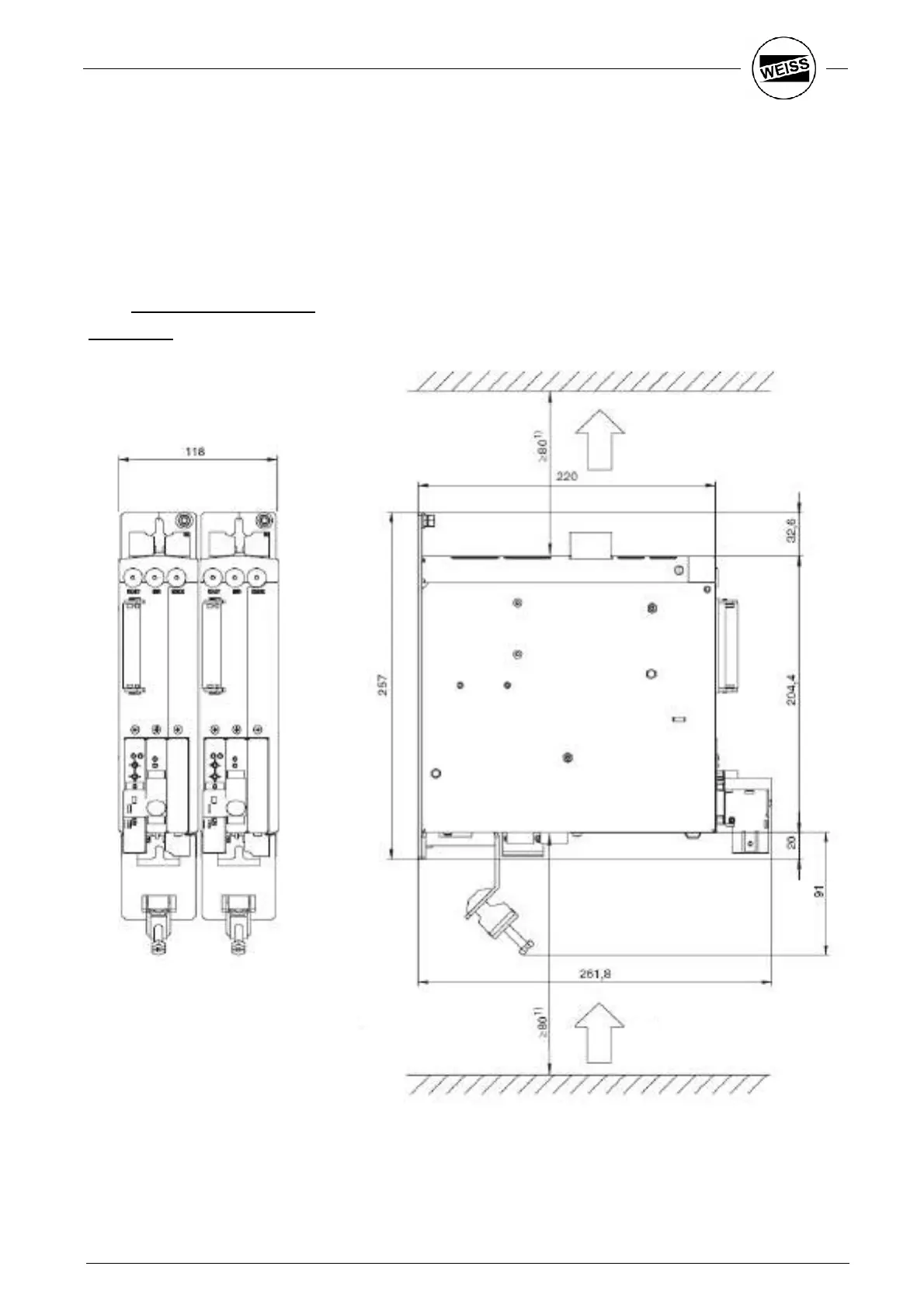

Dimensions:
1) A free space of 80 mm must be provided above and below the ACOPOS drive to ensure adequate air
circulation.
For permitting an easy wiring, there must be a space of at least 100mm below the ACOPOS drive.
2 piece of Acopos 8V1010.50-2
Air output
Air input
