OWNERS MANUAL FOR WEISS MEDEA+ D/A CONVERTER
Page: 17 Date: 02/11 /dw
Mechanical Design:
The MEDEA+ employs a twin metal frame. The inner chassis is made of steel and acts as a very effective shield against
electrostatic and electromagnetic radiation. The outer frame is made of massive anodized aluminium for additional shielding,
resulting in optimal heat convection and beautiful looks.
Frontpanel controls:
• Four switches with corresponding blue LEDs are used for selecting one out of four input sources.
• A power switch.

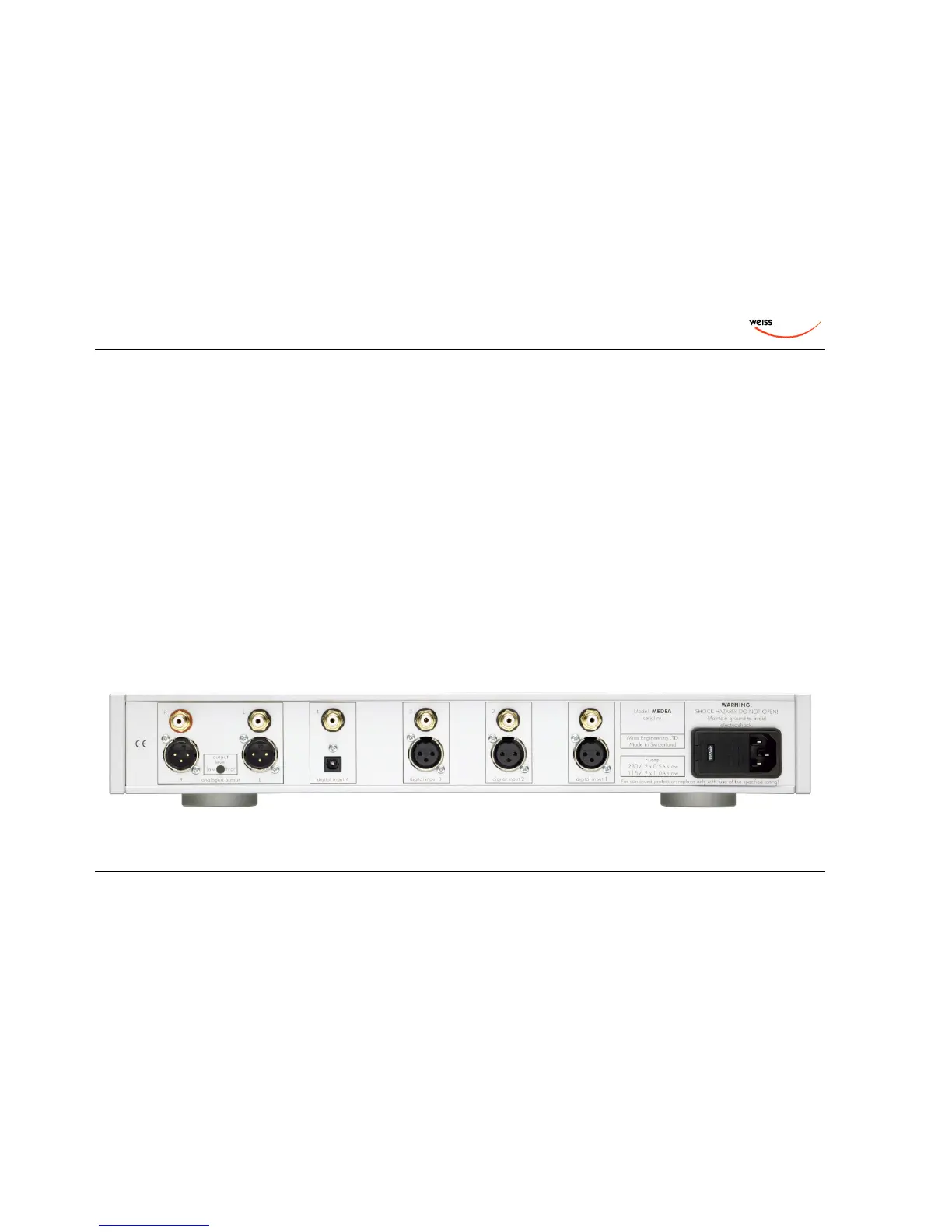

Backpanel elements from left to right:
• Analog outputs on XLR and RCA connectors with output level switch.
• Digital inputs 1 – 4 (three XLR, four RCA and one Toslink connector).
• Mains connector with fuses and voltage selector.
