Dimensions
Weights
Views
C4eT 6.20 GB-N
2
Front view
(disappearing door optional)

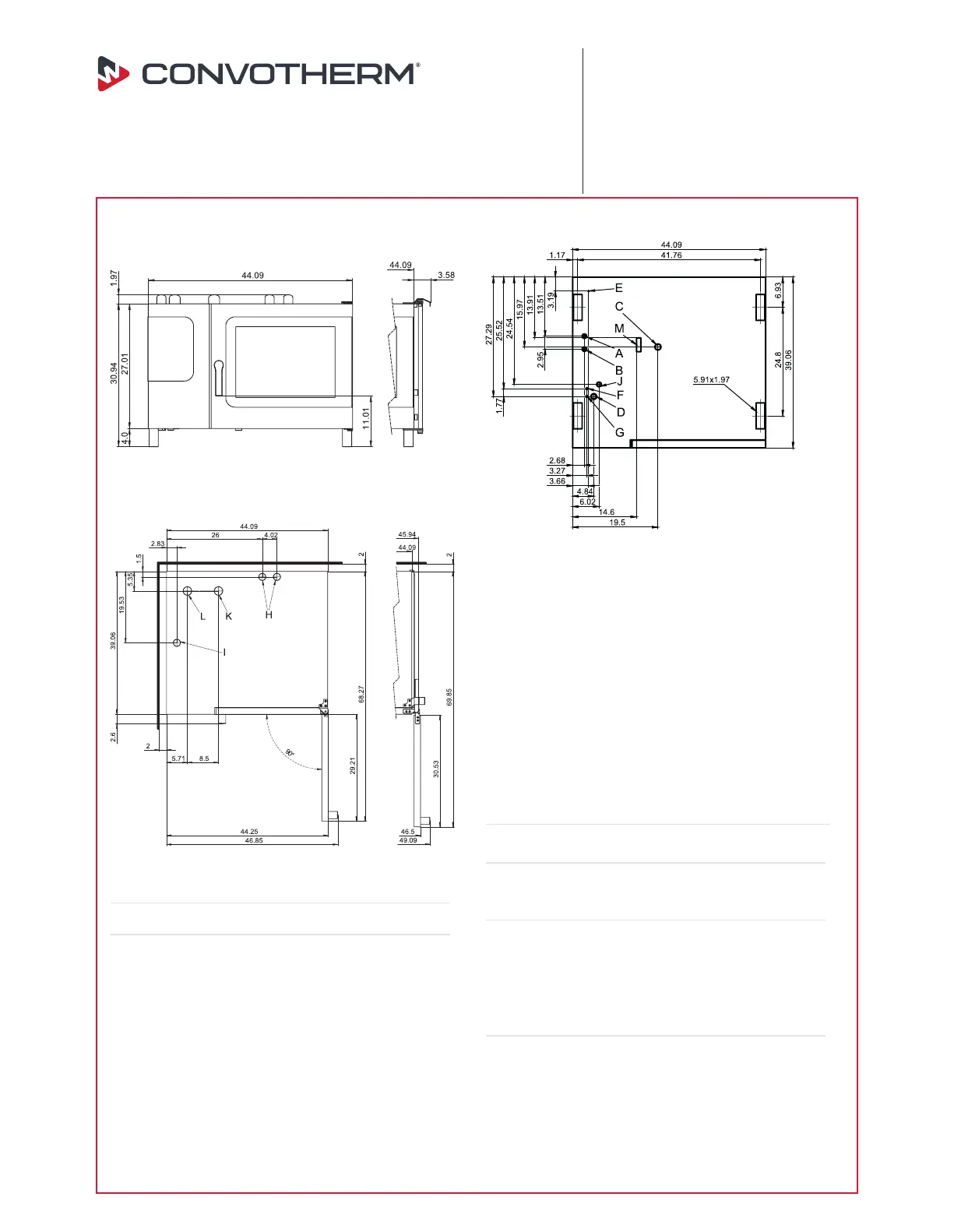

View from above with wall clearances
(disappearing door optional)
Installation requirements
Max. absolute appliance inclination during
operation*
max. 2° (3.5%)
* Adjustable appliance feet as standard.
Connection positions
A Water connections (for boiler)
B Water connections (for cleaning, recoil hand shower)
C Drain connection (2" I. D.)
D Electrical connection
E Electrical ground
F Rinse-aid connection
G Cleaning-agent connection
H Air vent (2" I. D.)
I Ventilation port
J Gas connection
K Exhaust outlet (oven heating element)
M Safety overflow 3.2" x 1"
Dimensions and weights
Dimensions including packaging
Width x Height x Depth 53" x 39.8" x 44.9"
Weight
Net weight without options* / accessories 346 lbs
Packaging weight 62 lbs
Safety clearances**
Rear 2 "
Right (right-hinged door) 2 "
Right (disappearing door pushed back) 5 "
Left (18" clearance recommended for service) 2 "
Top*** 39"
* Max. weight of options: 42 lbs.
** Minimum clearance from heat sources: 20".
*** Depends on the type of exhaust system and the ceiling’s characteristics.
9758235_06 ENG_USA 02/21, © 2021 Welbilt. Please note that the product is being continuously improved and that, as a result, these specifications are subject to change without notice.
