4 of 10
Document Number: 9295087 03/12/2021
Subject: BIC Tune Up 2021 (USA)
NOTE: The tubing orientation is 1-9 in a counter clockwise
manner as shown.

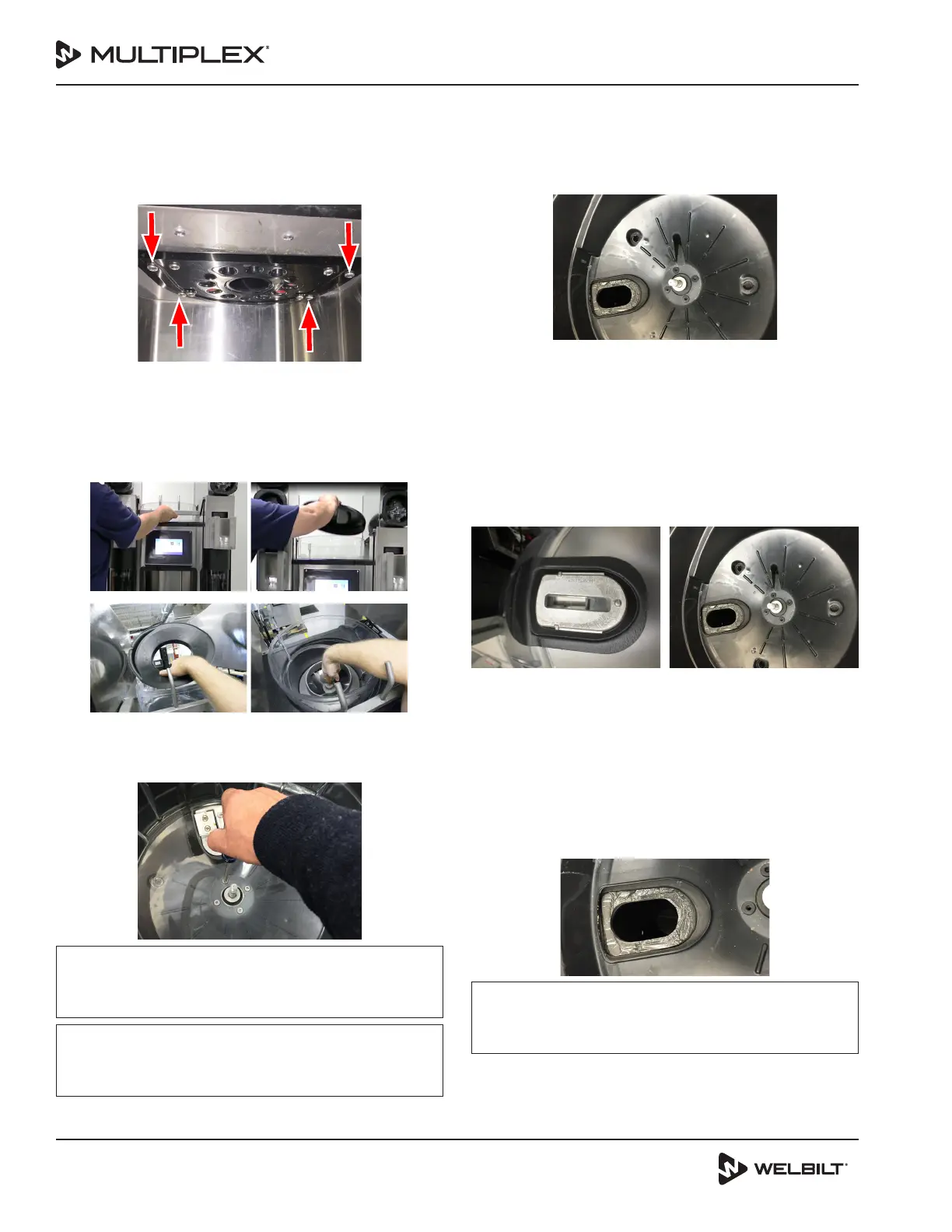

22. Reposition the dispensing mounting plate to the top of
the dispensing area and secure with the four (4) outer
screws.
A. Reverse actions in Step 16 pulling the tubing
downwards within the refrigerated cabinet and
pushing the tubing upwards in the dispensing area
towards the inside of the tubing chase.
23. Remove the ice assist bar, ice bin lid, ice shelf, paddle
nut, and shaver wheel.
24. Wash, rinse and sanitize each of the removed items.
25. Using a Phillips head screwdriver remove the four (4)
screws that secure the ice bin to the condensate bowl.
,
CAUTION
Be careful not to damage push rod when removing the ice bin.
Push rod should not be bent or have pressure applied to it.
,
CAUTION
Ice shaver blade is sharp on both edges. Wear cut resistant gloves
when handling.
26. Carefully remove the ice bin using caution not to
damage the micro switch push rod. Use caution not
to lose any of the three (3) ice bin grommets attached
to the base of the ice bin bowl. With the ice bowl
removed, wash, rinse and sanitize the condensate bowl.
27. Remove the two (2) screws that secure the shaver blade
and shims to the ice bin and ice chute cartridge. Rotate
the blade 180°.
NOTE: If the blade is dull or damaged it should be replaced.
Confirm replacement with the manager and bill the store
direct for the replacement blade.
28. Remove the shaver gasket. You may find the gasket
adhered to the bottom of the ice bin or the top of the
dispense area cover.
A. Clean all surfaces where the previous gasket made
contact.
29. Wash, rinse, and sanitize the ice bin.
30. Dry the ice chute cartridge surface and the top of the
dispense area cover. These are the contact points for
the shaver gasket. Adhere the new shaver gasket to the
top of the dispense area cover.
NOTE: Ensure the gasket does not block any of the ice chute
opening.
,
CAUTION
Be careful not to damage push rod when reinstalling the ice bin.
Push rod should be carefully inserted into bottom of ice bin
To Next Page
