Well AVR-TRC-AGILE-1000-WL User Manual

TRIAC TYPE AUTOMATIC VOLTAGE REGULATOR
Model:
AVR-TRC-AGILE 1000/2000/3000/5000/10000-WL
5. INSTALLATION OF THE AVR
• Install the AVR in a place where the children can’t reach for
• Do not install the AVR in or near water or in humidity
• Do not place AVR on an unstable cart, stand or table.
• Do not place AVR under direct sunlight or excessive humidity.
• Keep away from fire and heat sources.
• Keep away from corrosive gas or fluid.
Connect the Electrical Appliances to the AVR
• Make sure all appliances are turned “OFF ” and put the POWER SWITCH of AVR to
“
OFF ”position.
• For 500-2,000VA, plug the appliances into the OUTPUT SOCKET of the AVR. For 3,000-10,000VA, make wiring
connection as shown in Figure 3.
.Connect the AVR to Mains Power
• For 500-2,000VA, plug the AC INPUT CABLE into wall socket.
For 3,000-10,000VA, make wiring connection as shown in Figure 3.
Install the AVR in a cool, dry and clean place, away from windows, dust, moisture and cold to prevent fire
or electrical shock, do not expose the AVR to rain or water.

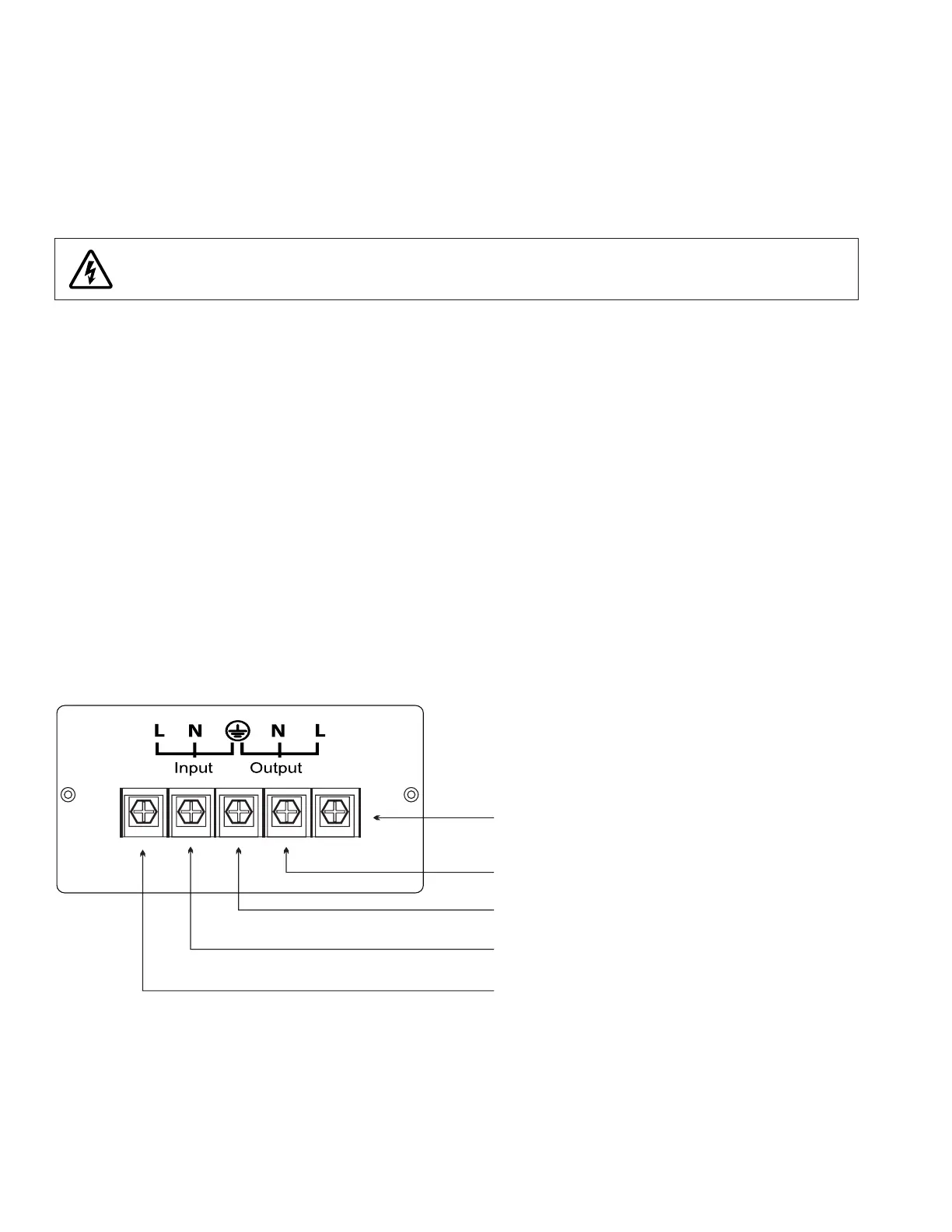

OUTPUT LIVE CABLE
OUTPUT NEUTRAL CABLE
EARTH CABLE
INPUT NEUTRAL CABLE
INPUT LIVE CABLE
Figure 3
7
