Well EAGLE - Wiring diagram; Operation instruction; Indoor unit operation and controls

When the working distance is 10m, use twisted-pair or RVV2×0.3mm².If the user want to lengthen the cable into 10m-
30m, use twisted-pair or RVV2 x 0.5mm² connecting wire.
If the user wants to lengthen the cable into 30m- 50m, use twisted-pair or RVV2 x 0.75mm²
connecting wire.The cable of electronic-controlled use RVV2×1.0mm².
The terminal “Lock” on indoor unit is for the unlocking function of the third button on the indoor
unit, the terminal 3&4 on the outdoor unit is for the unlocking function of the second button ) on the
indoor unit, the terminal 5&6 is used for connecting the door exit switch.Both of them are connected by
RVV2×1.0mm².

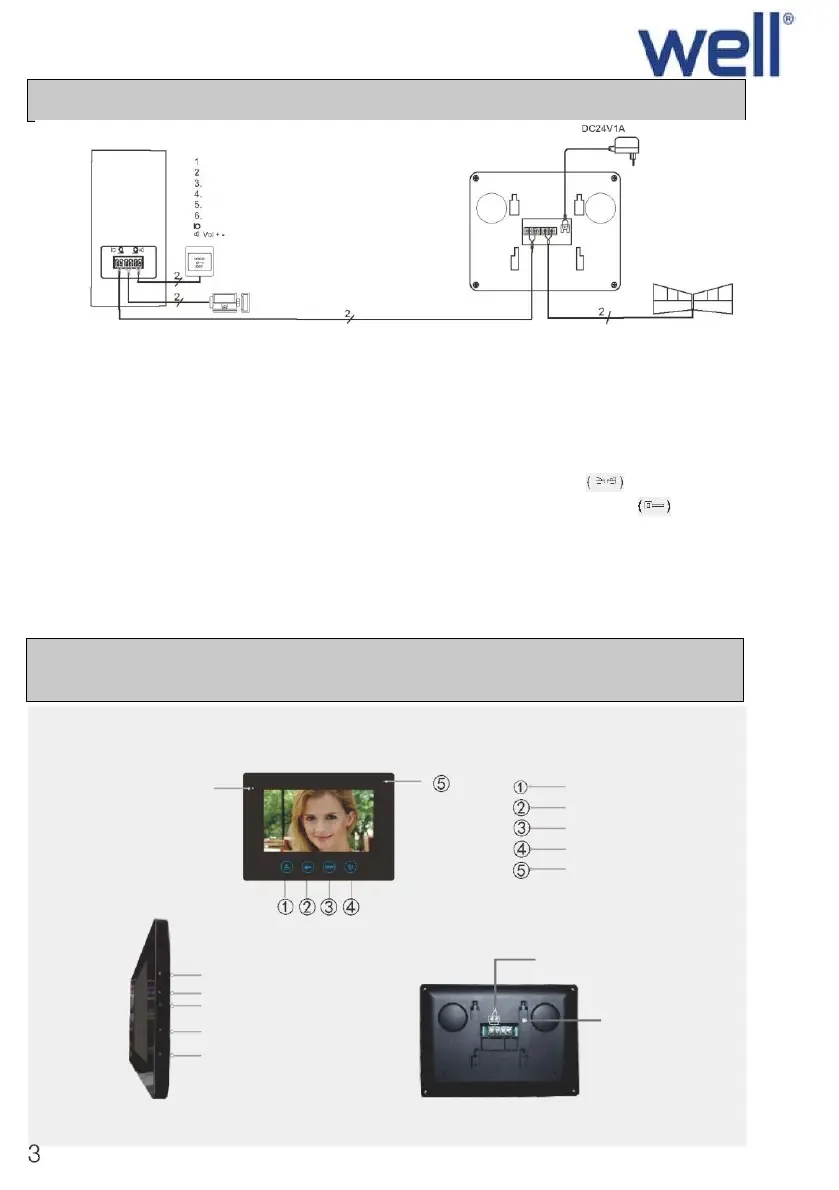

Wiring diagram
Operation instruction
Indoor unit
LED Indicator
· On red light:
do not disturb
indication
· On green light:
the talking
indication
Monitor
Electronic unlock
Gate unlock
Talk
Microphone
Connect to branch controller
Bracket slot
Melody volume
Melody selection
Brightness
Chroma
Talk volume
Indoor unit
Blocare poartă
Outdoor unit
Electronic lock
Wiring instructions:
DATA
DATA
LOCK+
LOCK-
EXIT
EXIT
MIC
