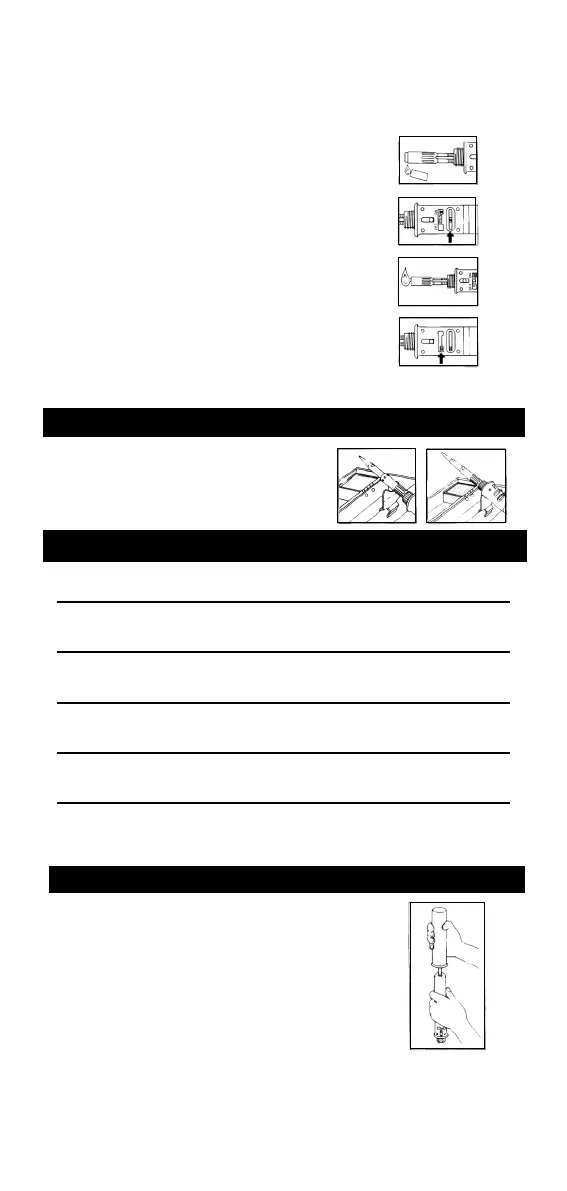

6. Ignite gas by means of a lighter.
7. Adjust flame lenght. Do not adjust to maximum lenght as
gas will flash and turn off
8. Using the ignition vent knob, it is possible to close the
round holes at the back of the torch ejector in order to
obtain a pre-heat flame.
9. To shut off the tool, put the gas main lever on “OFF” until
it clicks (red writing not visible any more).
For any job with a soldering tip or with a hot blow tip,
the adequate ejector has to be re-installed.
Put accessory holder on any box edge as illustra-
ted (on larger nail of holder comes outside of box
and two nails inside).
Trouble Possible reason Correction
No gas flow Empty gas container Refill
Clogged mixing chamber Replace
Torch flame has ho power Gas container probably Refill
almost empty
Impossible to ignite the gasGas pressure is too high or Adjust correctly Postion 1-5
too low
Tip does not heat up Catalyser is damaged Replace soldering tip
Insufficient gas power Refill
Damage at the flame The knurel screw has been Replace ejector
orifice overtightened
T
1. Use original Weller Pryopen gas (or butan-gas for cigarette
lighters)
2. Be sure the gas OPEN/CLOSE lever is at “OFF” position.
3. Hold the Pyropen handle with tip pointing downward, refill
nozzle in upright position. Insert nozzle of gas container and
press down.
4. As soon as the Pyropen is filled, gas will overfow.
5. Hold the tool firmly and see the windows to read LP gas volume inside.
HOW TO USE ACCESSORY IRON HOLDER
TROUBLE SHOOTING
GAS-FILLUNG (T005 16 160 99)
16
6
7
8
9
Wrong
Correct
