Weller WD2M - Technical Data for WD2 M; Performance Specifications

3
3
English
Active Channel Indicator
Dimensions: 5.27” L x 4.27” W x 5.77” H; (134mm L x 108mm W x 147mm H)
Primary voltage: 120 VAC / 50/60 Hz
Power Input: 85 Watts
Power Output: 24VAC
Fuse (10): T1.0A (120 VAC) (5 x 20mm)
Temperature Control: 150 °F – 850 °F (50 °C – 450 °C); WSP150 : 999 °F ( 550 °C )
WMRP and WMRT Tools - 200 °F – 850 °F (100 °C – 450 °C)
Temperature Accuracy: ±17 °F (±9°C)
Temperature Stability: ±9 °F (±5°C)
Meets or Exceeds: IPC / EIA J-STD-001C (Appendix A ) Commercial Soldering Standard
( Specific to WMRP / WMRT Soldering and Desoldering Tools )
Tip to Ground Resistance < 2 Ω ( Specific to the WSP80 / WP80 / WMP / WTA50 Soldering / Desold-
ering Tools )
Tip to Ground Millivolt Potential < 2 mV ( Specific to the WSP80 / WP80 / WMP / WTA50 Soldering / Desold-
ering Tools )

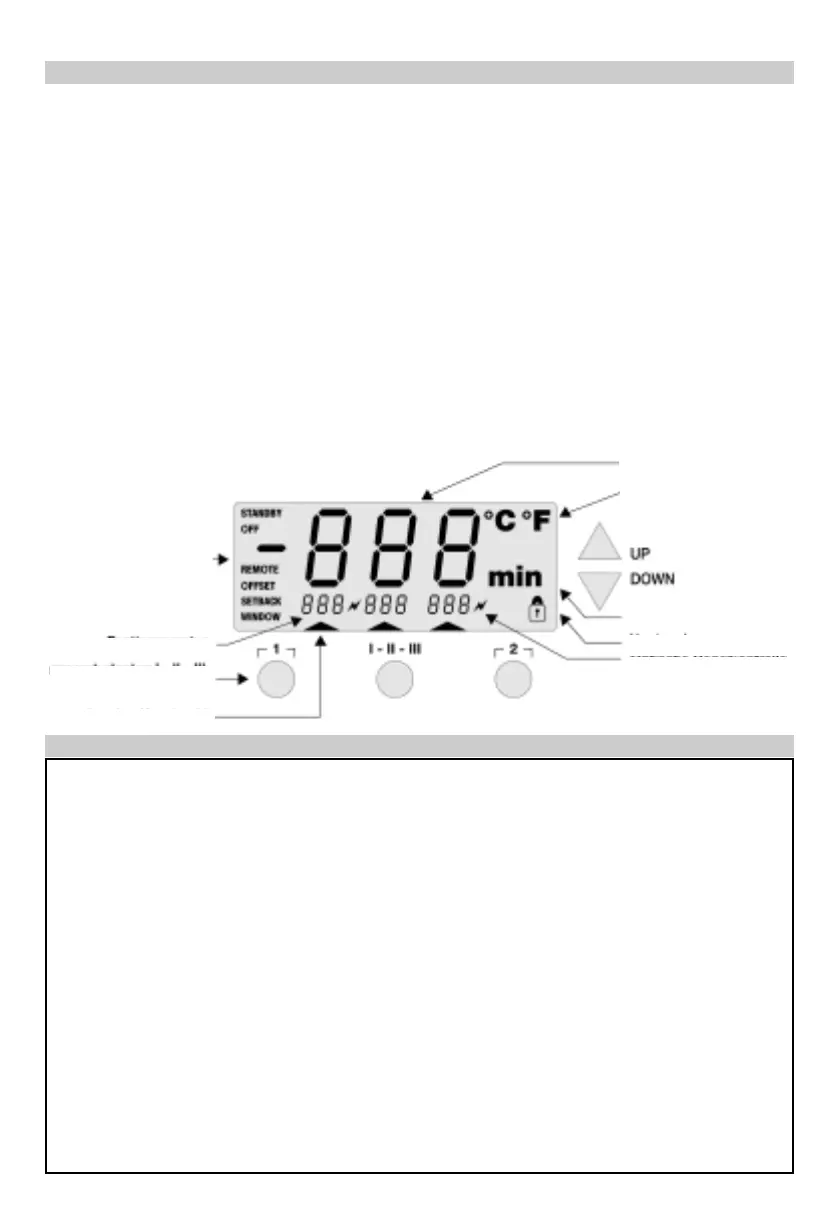

Temperature display
Temperature Symbol
Time Functions Indicator
Station Lock Indicator
Heater Control Indicator
Special Functions
“Menu 1”
3 Pre-Selected Temperatures
3 Radio Buttons
Scroll Key
Scroll Key
LCD Display
4. Technical Data
W
W
P
P
8
8
0
0
(
(
O
O
p
p
t
t
i
i
o
o
n
n
a
a
l
l
)
)
:
:
The WP80 Soldering iron is characterized by fast heat-
up and precise control of the soldering tip. Due to its
slim design, 80W heater output and short reach (tip to
grip), this tool can be used for a variety of applications,
from extremely fine soldering tasks to those requiring
high temperatures.
W
W
M
M
P
P
(
(
O
O
p
p
t
t
i
i
o
o
n
n
a
a
l
l
)
)
:
:
The WMP Micro Soldering Iron’s very fast heat-up time
and short reach (tip to grip), makes it ideal for preci-
sion SMT electronics. The short distance between the
grip and soldering tip makes precise handling of the
65W soldering iron possible while performing very fine
soldering tasks.
W
W
T
T
A
A
5
5
0
0
(
(
O
O
p
p
t
t
i
i
o
o
n
n
a
a
l
l
)
)
:
:
The WTA50 Desoldering Tweezers were designed
specifically for desoldering SMT components. Two heat-
ing elements (2 x 25W), each with its own temperature
sensor, maintain the same temperature on both tweezer
tips.
W
W
S
S
P
P
1
1
5
5
0
0
(
(
O
O
p
p
t
t
i
i
o
o
n
n
a
a
l
l
)
)
:
:
The WSP150 Soldering iron is an especially powerful
tool for soldering tasks with extremely highheat
requirements. ( Note: Only one channel is active when
this Soldering iron is used. )
See Accessories for a list of other soldering tools that
can be connected.
