Weller WXA 2 - Page 25

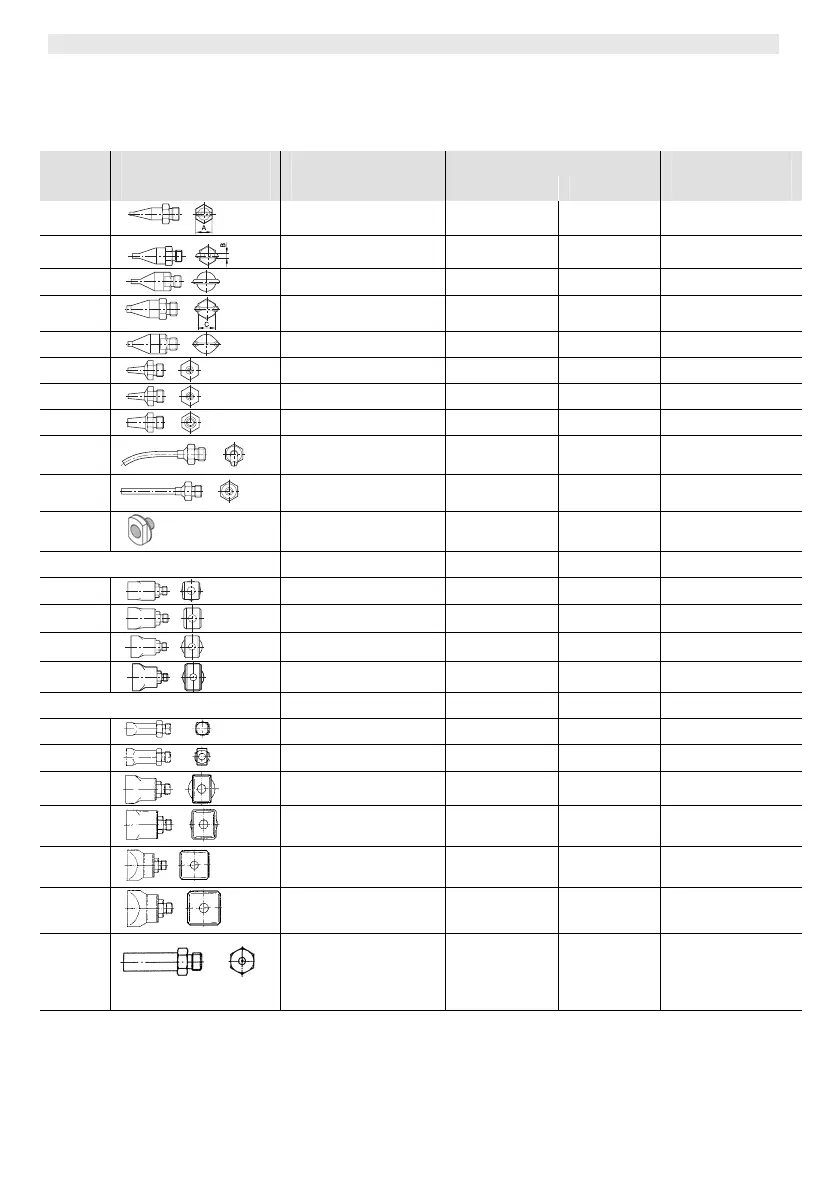

WXHAP 200 Hot Air Nozzles
Hot
A
ir Nozzles for WXHAP 200
Model Type Dimensions A x B Order-No.
inch mm
F02 Flat nozzle .059 x .315 1,5 x 8,0 T005 87 277 74
F04 Flat nozzle .059 x .413 1,5 x 10,5 T005 87 277 73
F06 Flat nozzle .059 x .472 1,5 x 12,0 T005 87 277 72
FD2 Dual nozzle Ø .059 x .315 Ø 1,5 x 8,0 T005 87 277 76
FD4 Dual nozzle Ø .059 x .394 Ø 1,5 x 10,0 T005 87 277 75
R02 Round nozzle Ø .031 Ø 0,8 T005 87 278 23
R04 Round nozzle Ø .047 Ø 1,2 T005 87 278 21
R06 Round nozzle Ø .118 Ø 3,0 T005 87 278 22
R08 Round nozzle, bent Ø .079 Ø 2,0 T005 87 277 86
R10 Round nozzle, bent Ø .079 Ø 2,0 T005 87 277 87
M6 Adapter T005 87 617 28
2-side heated (Type D)
D04 Nozzle .413 x .413 10,5 x 10,5 T005 87 277 79
D06 Nozzle .394 x .512 10 x 13 T005 87 277 82
D08 Nozzle .394 x .591 10 x 15 T005 87 277 81
D10 Nozzle .394 x .709 10 x 18 T005 87 277 84
4-side heated (Type Q)
Q02 Hot air nozzle .236 x .256 6 x 6,5 T005 87 277 77
Q04 Hot air nozzle .236 x .354 6 x 9 T005 87 277 78
Q06 Hot air nozzle .394 x .591 10 x 15 T005 87 277 80
Q08 Hot air nozzle .492 x .591 12,5 x 15 T005 87 277 83
SK709 Hot air nozzle .472 x .472 12 x 12 T005 87 278 12
Q10 Measuring nozzle .709 x .709 18 x 18 T005 87 277 85
R01 Measuring nozzle
for thermo element
.0197 Ø .0,5 T005 87 278 08
Subject to technical change without notice.
