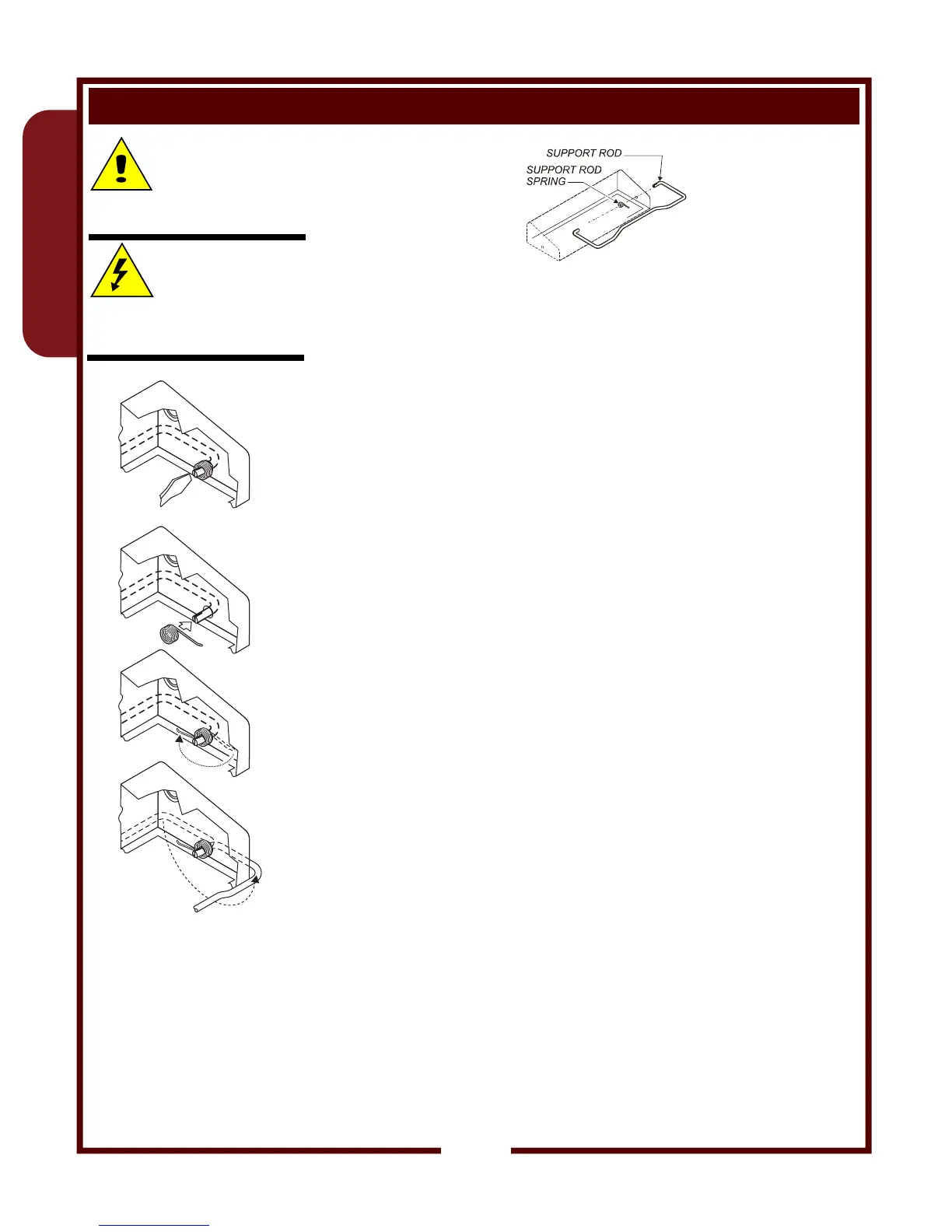

REPLACE SPRING FOR FRYHEAD SUPPORT ROD
SV301 Service Manual Standard Fryers
6
GENERAL
Support Rod
Spring Installation
Unplug fryer and allow to cool before servicing.
A. REMOVE ELEMENT HEAD FROM FRYER
Note: Some operations can be performed without removing the
fryhead. However, doing so will ease access to components and
fasteners.
1. Remove two screws holding either element head pivot.
Remove pivot.
2. Lift element head assembly from fryer.
3. Remove bottom cover from control box.
B. REMOVE BROKEN SPRING
1. Using a flat blade screwdriver or other suitable tool, pry the split
end of the support rod to open the slot.
2. Remove and discard the broken spring parts.
C. INSTALL NEW SPRING
1. Position the support rod toward the back (power cord) side of
the control box, then slide the new spring over the split end of
the support rod.
Note orientation: Long leg of spring at the top and pointing
toward the front; short leg of spring in the slot.
2. Using pliers, squeeze the split end of the support rod to capture
the spring.
3. Tension the spring by swinging the long leg clockwise, and
allowing it to rest against the lip of the control box.
D. REINSTALL ELEMENT HEAD ON FRYER
1. For F-14 and F-49, be sure the pivot washer is in place on the pivot
brackets. While holding the support rod in the forward position,
slide the element head assembly onto the fixed pivot. Reinstall the
pivot removed In step A
Test fryer for proper operation and return to service.
