2M-303339 Rev H Owner’s Manual for Wells Countertop Electric Griddles
GENERAL INSTALLATION INFORMATION
The unit is shipped fully assembled with the exception of the legs and splash guard which will need
to be installed during the unpacking process. The legs will thread into the holes on each end of the
chassis [as well as in the middle on G60 models] and once set in place, the splash guard locks over
the studs in the grease trough to secure it in place. It is shipped ready to hardwire to an electrical
connection adequate for its voltage and amp draw. If improper electrical supply can be determined
through troubleshooting, contact a qualified electrician prior to using the unit. Should you require
assistance, contact your local authorized service agent for any service or required maintenance.
Set the unit so that the rear is 0.25 inches (6 mm) higher
than the front using the adjustable feet. Make certain the
griddle has at least the minimum clearance on the sides
and back as called out on the nameplate of the unit. The
installation must be on a non-combustible surface such
as concrete, tile, terrazo, or metal [solid not metal covered].
Before using the unit for the first time, make sure to clean
the unit properly. Refer to the “Daily Operation” section
for cleaning instructions.
Remember, the installation must meet all federal, local, and NFPA codes.
VENTILATION
Make certain not to obstruct the flow of combustion and ventilation air. Provisions for adequate
air supply must be furnished. The legs supplied with the unit must be installed. Make certain that
air intake openings in the bottom of the appliance are not obstructed, as they are essential for
proper combustion and operation of the appliance.
It is essential that some form of exhaust hood be provided over the griddle to carry o fumes
and gases. The unit should never be directly connected to a flue or stack.
ELECTRICAL CONNECTION
DO NOT CONNECT OR ENERGIZE THIS UNIT UNTIL ALL INSTRUCTIONS ARE READ, UNDERSTOOD,
AND FOLLOWED.
For your protection we recommend that a qualified electrician work on connecting this griddle.
They should be familiar with electrical installations and all electric codes. Proper connections and
power supply are essential for ecient performance. The external wiring should be in conduit
or an approved type of flexible cable suitable for operation at the temperature indicated on the
wiring diagram for your unit, and of a proper size to carry the load. The supply circuit should be
properly fused and equipped with a means of disconnecting, as required by local electrical code.
The body of the griddle must be grounded.
Before making any electrical connection to this unit, check that the power supply is adequate for the
voltage, amperage, and requirements stated on the nameplate. This unit will be shipped ready to hard
wire. Make certain to disconnect the unit from the power source before installing or removing any parts.
Be absolutely sure that the ground connection for the receptacle is properly wired. Do not connect
equipment to power without proper ground connections. Improper grounding may result in personal
injury or fatality. Damage due to connecting the unit to power incorrectly is not covered by warranty.

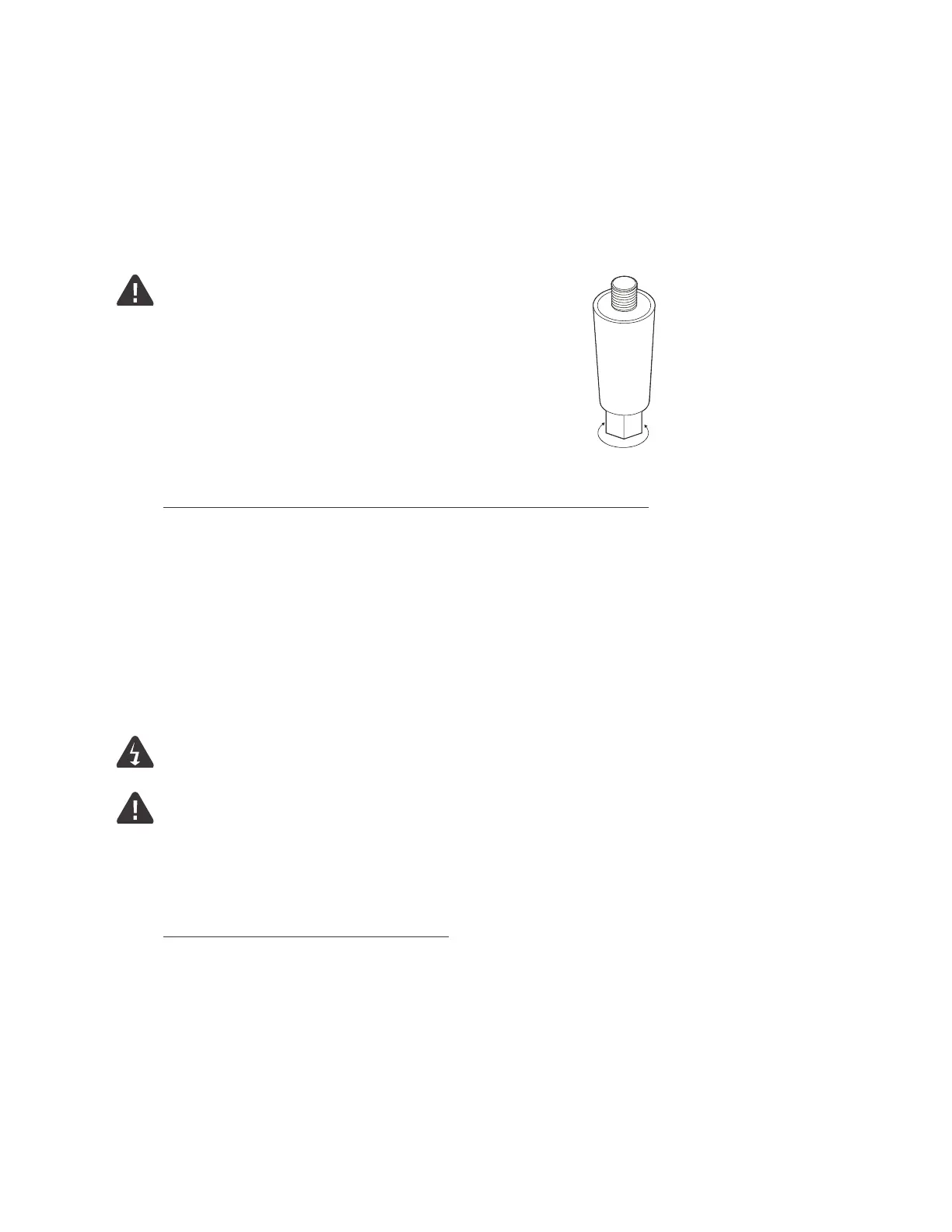

turn to adjust height
