Owner’s Manual
WPW-4000
Assembly
Component Parts
Cool Air Duct Assembly
1. Take out the cord holder from the accessory box.
2. Place the cord holder on the le side of unit.
3. Use screws (enclosed inside of accessory box with
cord holder) to install the cord holder in the unit
as shown in Figure 4.
1. Remove cool air duct assembly 2 pcs from carton.
2. Place the air duct assembly on the top front of
unit.
3. Use screws (enclosed inside of box with cool air
duct assembly) on the unit as shown in Figure 5.

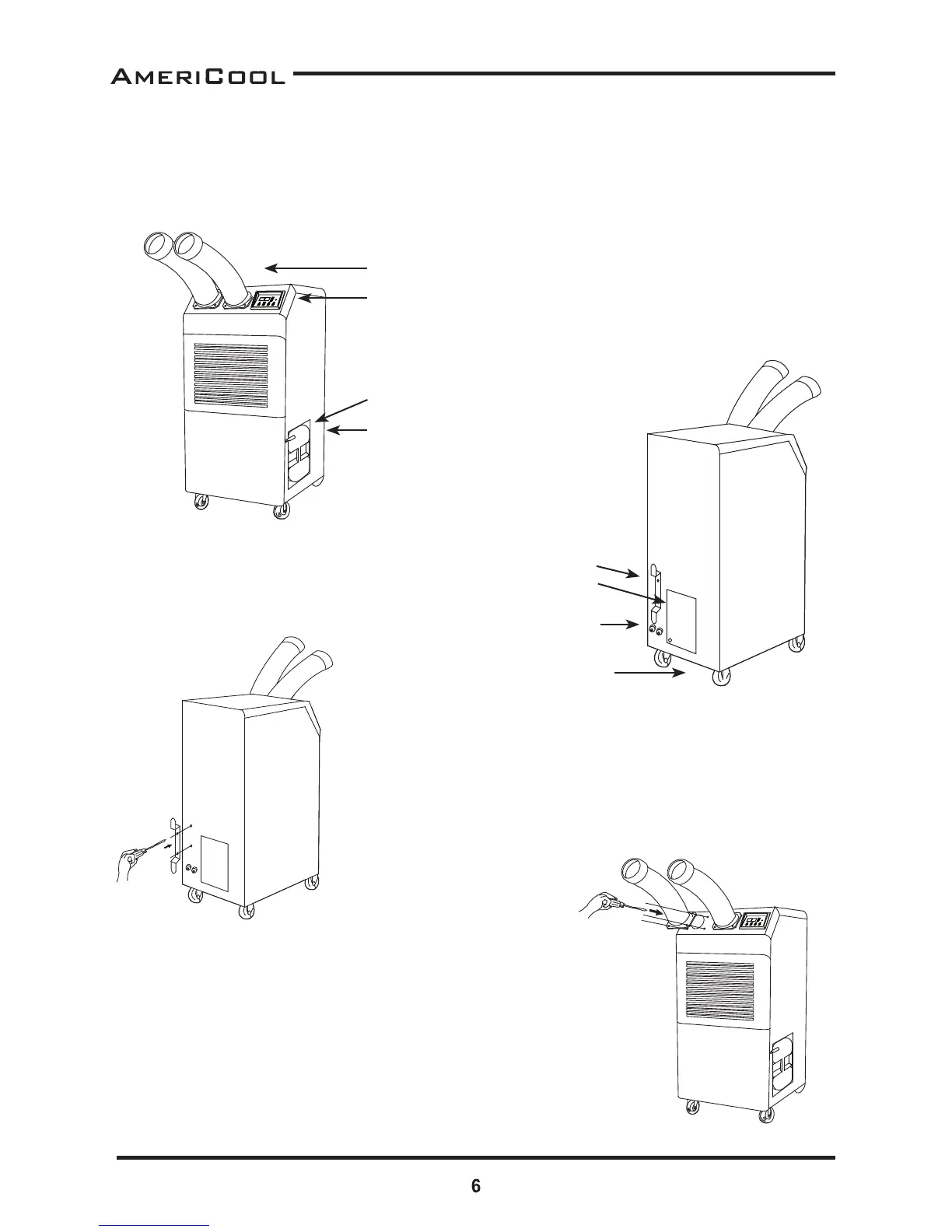

Figure 2 – Front and Right Side View
Figure 3 – Back and LeŌ Side View
Figure 4
Figure 5
Cool air outlet hose
Display / Control board
Guide bar for condensate water tank
Condensate water tank (Water level is
sensed, and the unit opera on is stopped
when tank is full. An alarm will be
displayed. Empty the tank and replace to
resume opera on)
Electrical access panel
Power cord holder
Water Coupler
Caster
