ASSEMBLY & ADJUSTMENTS

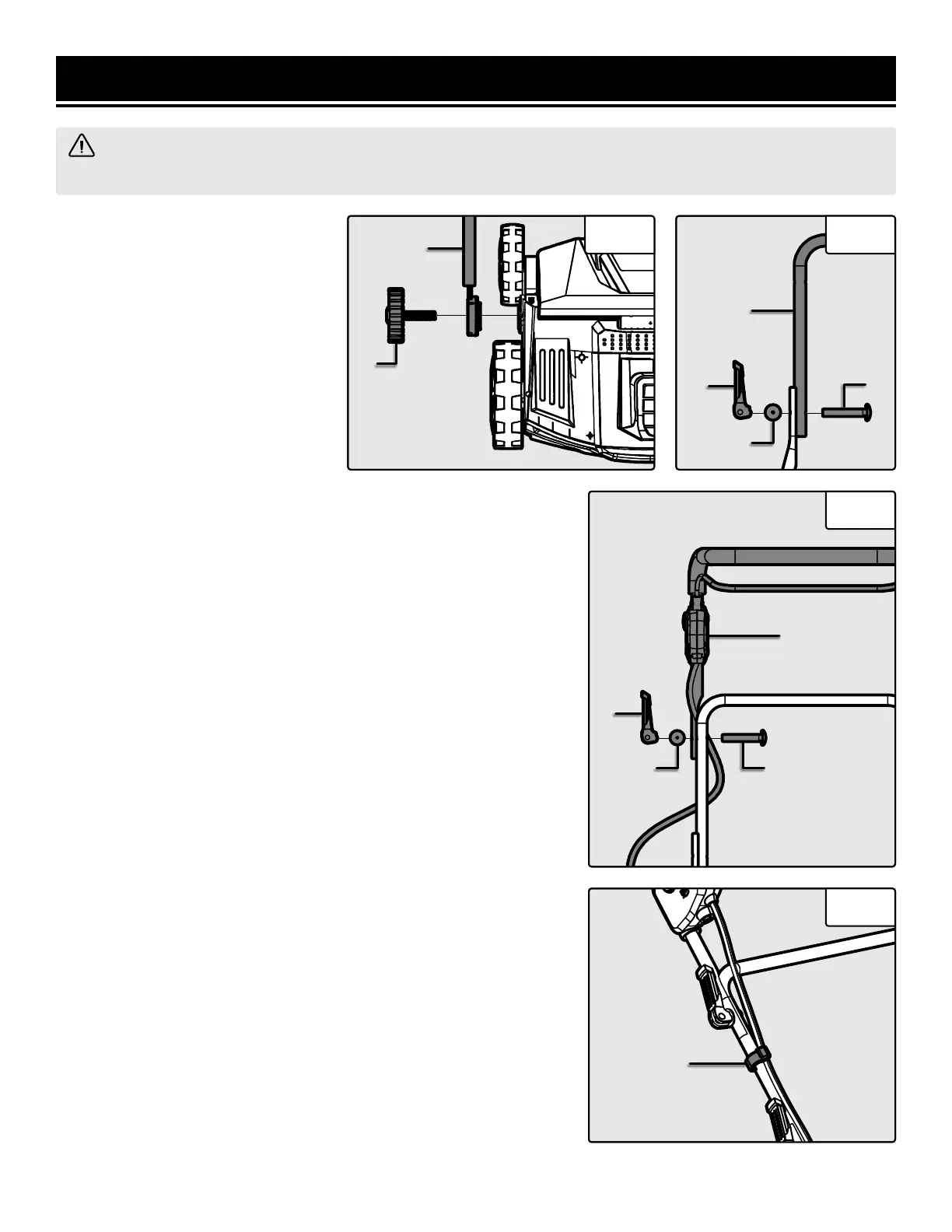

ATTACHING THE HANDLE

1. Attach the lower handle (Fig. 1 -

1) to the dethatcher / scariﬁer body

using an angle adjustment cam knob

(Fig. 1 - 2). Repeat with the second

lower handle.

NOTE: There are three height posi-

tions that you can adjust the handles

to. To unlock the angle adjustment

cam knob, twist the knob to the left.

Adjust the handles to your desired

height and relock the angle adjust-

WARNING! Make sure that the machine is switched OFF and that the safety key and batteries are removed

from their terminals before assembling or making any adjustments.

Fig. 3

Fig. 1

Fig. 2

3 4

ment cam knobs. Make sure they are both securely locked before be-

ginning operation.

2. Install the middle handle (Fig. 2 - 1) onto the two lower handles us-

ing two handle cam knobs (Fig. 2 - 2), two washers (Fig. 2 - 3), and

two bolts (Fig. 2 - 4), one on either side. To lock the handle cam knobs

in place, push the knob to the UP position as shown in Fig. 2. NOTE:

Make sure that the middle handle is installed on the inside of the lower

handles as shown in Fig. 2.

3. Install the upper handle (Fig. 3 - 1) onto the middle handle using two

handle cam knobs (Fig. 3 - 2), two washers (Fig. 3 - 3), and two bolts

(Fig. 3 - 4), one on either side. To lock the handle cam knobs in place,

push the knob to the UP position as shown in Fig. 3. NOTE: Make sure

that the upper handle is installed on the outside of the middle handle

as shown in Fig. 3.

4. Slip the power cord through the cable clip (Fig. 3 - 7) and secure the

cable clip right below the lower and middle handle connection point

as shown in Fig. 3.

5. Secure the cable along the handle with the supplied cable clips (Fig.

4 - 1).

Fig. 4

Wen 20716BT User Manual
