ASSEMBLY & ADJUSTMENTS
WARNING! Read the instructions before beginning to assemble the scaffolding. Scaffold components and
replacement parts from other manufacturers must not be used with this particular model. Parts should fit to-
gether without being forced, otherwise the structural integrity may be compromised.

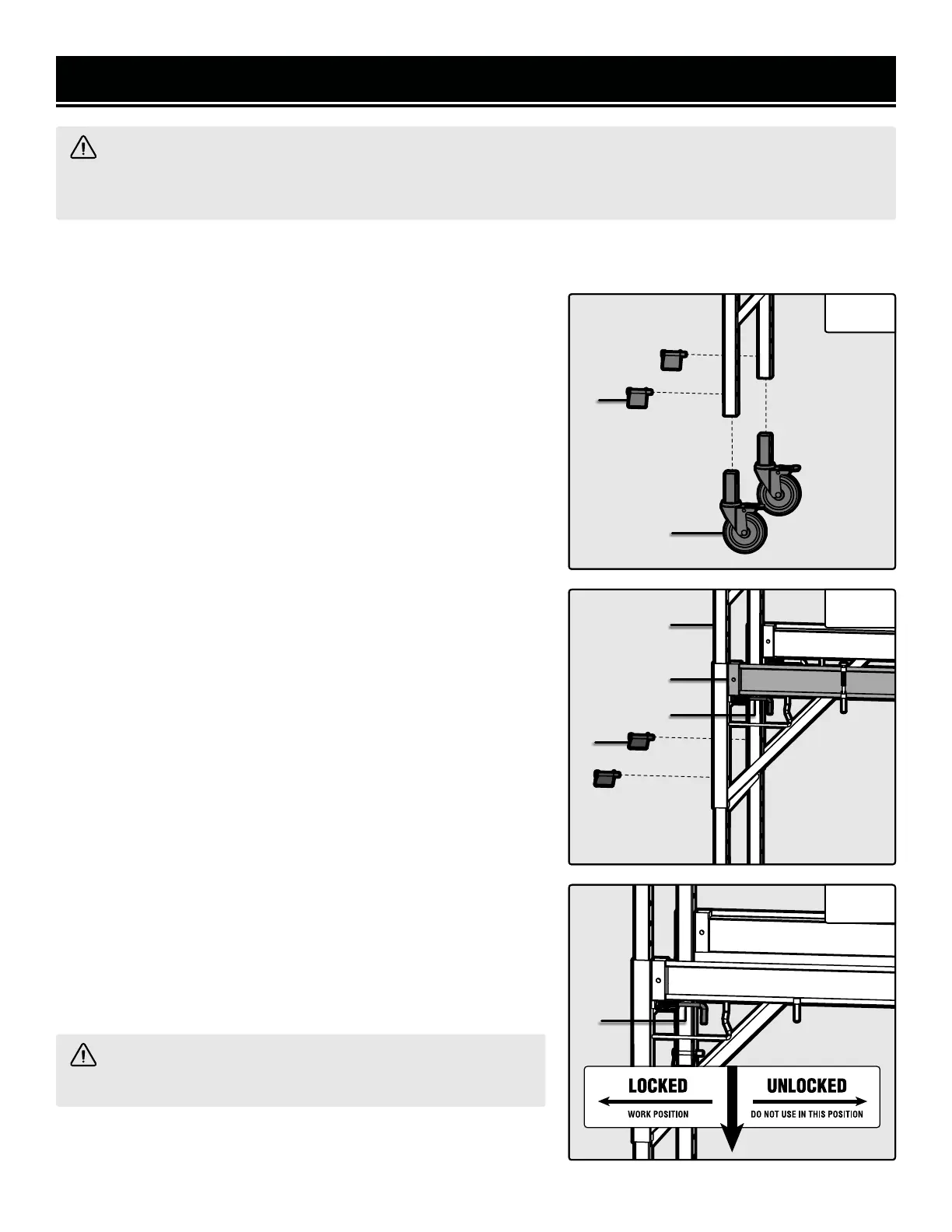

MOUNTING THE CASTERS
1. Mount the four swivel casters (Fig. 1 - 1) to the bottom of each
end frame by sliding the casters into their respective legs.
2. Secure the casters in place using a locking pin (Fig. 1 - 2). Then,
snap the pin spring around the end of the locking pin to keep it in
place.
3. Lock the swivel casters in place by pressing down on the end of
the caster plate marked “ON”. Pressing down on the end marked
“OFF” unlocks the caster for movement.
MOUNTING THE SIDE RAIL
1. Slide a side rail (Fig. 2 - 1) onto the end frames (Fig. 2 - 2) and
secure it into place using two L-shaped pins (Fig. 2 - 3). The L-
shaped pins must be fully engaged in the holes of the frame.
2. Further secure the frames with a locking pin (Fig. 2 - 4) on each
side of the side rail.
3. Repeat to install the other side rail onto the other side of the end
frames. Both side rails must be positioned at the same height on
the frames so that the platform will be level. Check the rails’ level
with a bubble level or other instrument (not included).
4. Check to make sure all four L-shaped pins and four locking pins
are properly installed.
TO ENGAGE/DISENGAGE THE L-SHAPED PINS
To disengage the L-shaped pin:
Pull out the L-shape pin (Fig. 3 - 1) at each end of the side brace to
disengage it and adjust the platform height.
To engage the L-shaped pin:
Release the L-shaped pin (Fig. 3 - 1) and be sure that pin fully en-
gages into holes in the frame.
WARNING! Make sure the L-shaped pins are fully locked
before operation.
Fig. 1
1
Fig. 2
Fig. 3
1
Assembly and adjustments of the scaffolding requires two people.
Get a good friend (or a trustworthy foe) to help you.
