7
ASSEMBLY AND ADJUSTMENTS
The air filter is designed to circulate air and filter wood and other non-metallic dust. The unit requires only mini-
mal assembly. However, it is important to consider how and where to place the unit. When selecting a site, make
sure there is a suitable power source nearby. Do not use extension cords with the air filter.

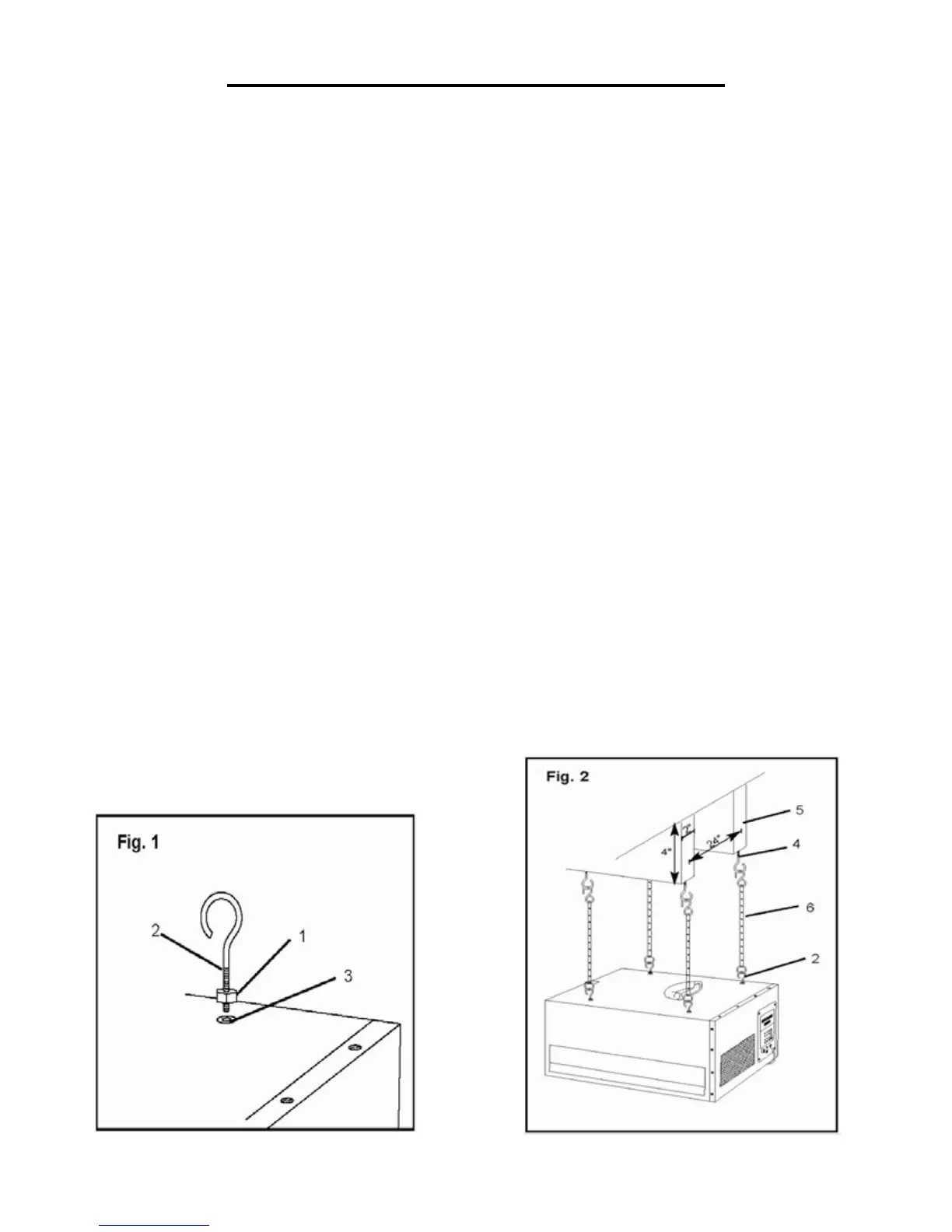

HANGER PLACEMENT (Fig. 1)
1. Thread the locknuts (1) almost all the way up the hanger (2).
2. Thread a hanger into each of the four mounting holes (3) on the top of the air filter cabinet.
3. Tighten each locknut against the cabinet top. Hold the hangers so that they do not spin while tightening the
locknut.
CEILING PLACEMENT (Fig. 1 & 2)
Make sure the unit will be situated at least 7’ above the floor and at least 3’ (1 m) away from a corner and from
any heating or air vents.
1. Install the wood screw hooks (4) into the building support structure. Do not mount the air filter to non-structur-
al surfaces such as dry wall or false ceiling grids. The hooks are rated for this air filter and can support a maximum
of 100 lbs.
2. Place a chain (6) on each wood screw hook (4).
3. Attach the hangers (2) on each chain (6).
4. Make sure the unit is level horizontally, and is at least 7’ above the floor. If it is not, remove the air filter and
adjust the length of the chain as needed. Then remount the unit.
5. Plug the air filter power cord directly into a power source.
