11

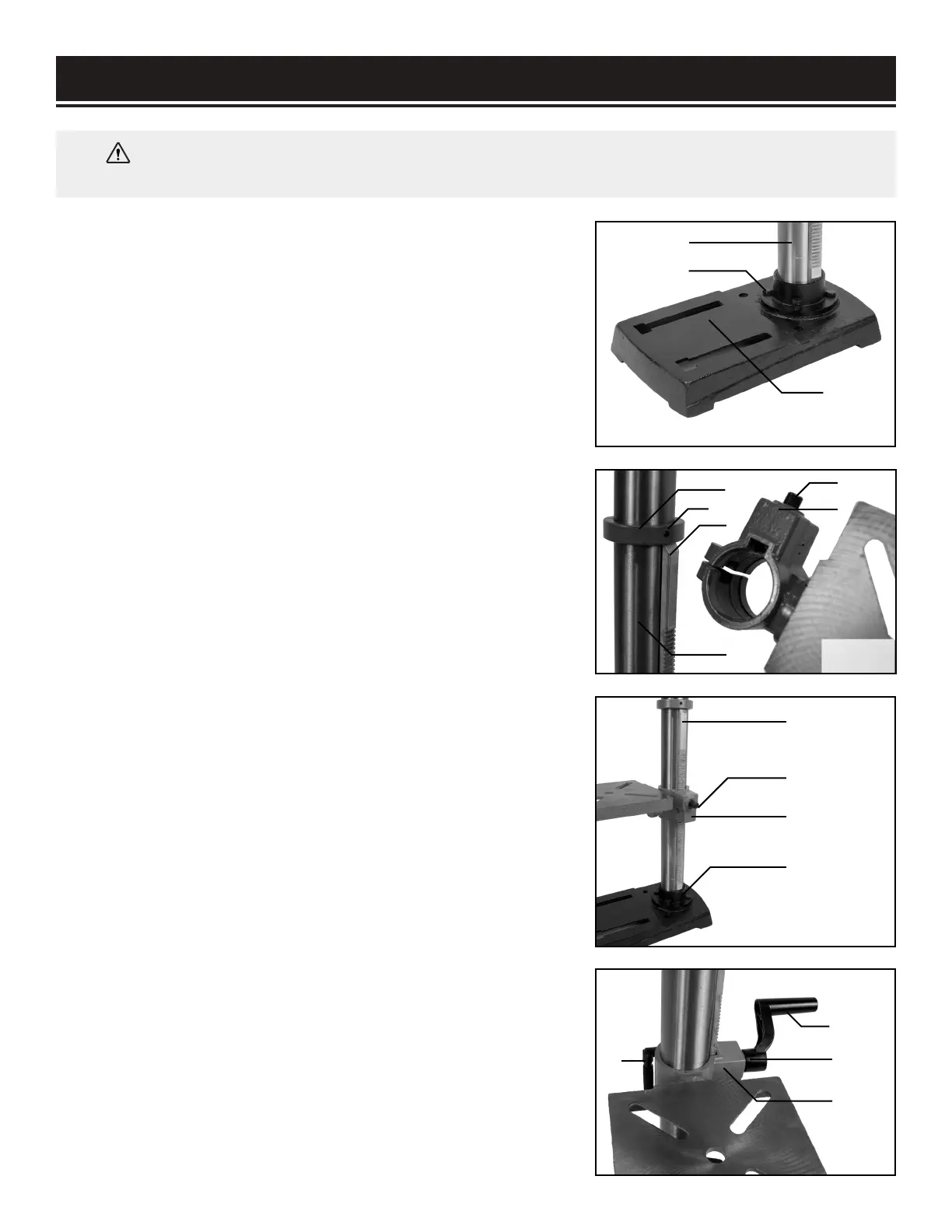

ASSEMBLY & ADJUSTMENTS
ATTACHING COLUMN TO BASE (FIG. 3)
1. Place the column tube (Fig. 3 - 1) on the base (Fig. 3 - 2),
aligning the column support holes to the base holes.
2. Install a hex head bolt (Fig. 3 - 3) in each column support hole
and tighten bolts using an adjustable wrench (not included).
ATTACHING TABLE TO COLUMN (FIG. 4)
1. Loosen the set screw (Fig. 4 - 4) in the rack collar (Fig. 4 - 5)
and remove the collar from the column.
2. Remove the rack (Fig. 4 - 6) from the column (Fig. 4 - 7).
3. Insert the worm shaft (Fig. 4 - 8) into the hole of the table
support crank handle (Fig. 4 - 9) from inside the table support.
The worm shaft should extend outside the housing about 1"
(25 mm).
4. Insert the rack (Fig. 4 - 6) into the geared groove of the table
support (Fig. 4 - 9). Make sure the worm shaft (Fig. 4 - 8) on
the inside of the table support is engaged with the teeth of the
rack. The table support should sit at the center of the rack.
5. Slide the table support and rack assembly (Fig. 5 - 6, 5 - 8,
and 5 - 9) down together onto the column. Insert the bottom
edge of the rack into the lip (Fig. 5 - 10) of the column support.
Hold in this position until step 6 is complete.
6. Place the collar (Fig. 4 - 5) bevel side down over the rack.
Tighten the set screw (Fig. 4 - 4) with the 3 mm hex wrench to
hold the rack in position.
NOTE: Make sure there is enough clearance to allow the table
to rotate around the column. To avoid column or collar damage,
only tighten the set screw enough to keep collar in place.
7. Insert the table support crank handle (Fig. 6 - 12) into the
worm gear shaft on the side of the table support (Fig. 6 - 11).
Make sure the set screw (Fig. 6 - 13) is aligned on the flat of the
shaft and as close to the table support as possible. Tighten the
set screw.
8. Position the table in the same direction as the base, and
tighten the column lock handle (Fig. 6 - 14).
1
3
2
5
4
6
7
8
9
6
8
9
10
11
12
13
14
WARNING: Do not plug in or turn on the tool until it is fully assembled according on the
instructions. Failure to follow the safety instructions may result in serious personal injury.
Fig. 6
Fig. 5
Fig. 4
Fig. 3
