Wen 4212 User Manual

ASSEMBLY & ADJUSTMENTS

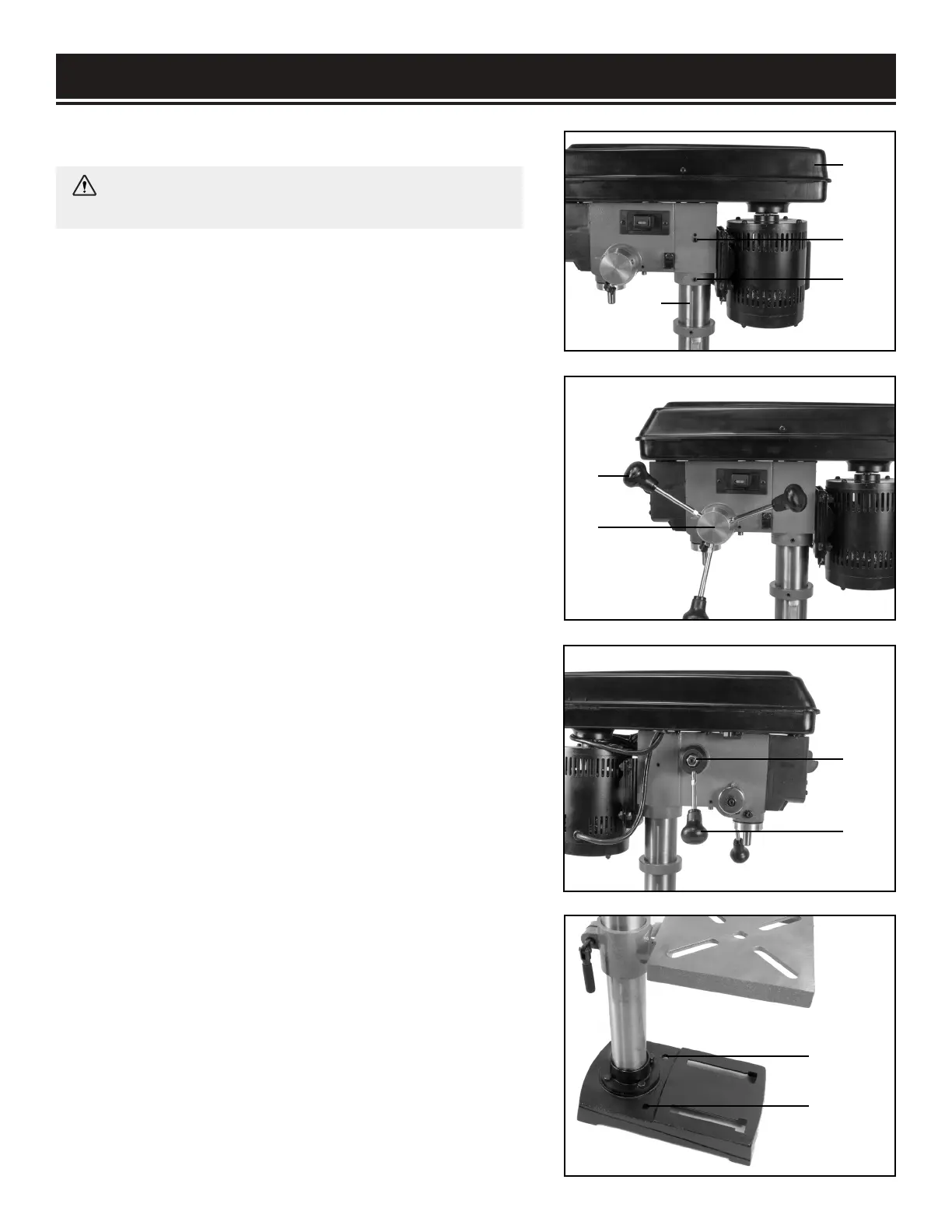

DRILL PRESS HEAD TO COLUMN (FIG. 7)
1. Carefully lift the drill press head assembly (Fig. 7 - 1) and
position it over the column (Fig. 7 - 2).
2. Place the mounting opening on the drill press head over
the top of the column. Make sure the drill press head is
seated properly on the column.
3. Align the direction of the drill press head with the
direction of the base and the table.
4. Tighten the set screws (Fig. 7 - 3) using a hex wrench.
FEED HANDLES (FIG. 8)
1. Insert the three speed handles (Fig. 8 - 4) into the
threaded openings on the feed hub (Fig. 8 - 5).
2. Manually tighten the handles into the openings.
NOTE: When using the drill press, one or two of the feed
handles may be removed if an unusually-shaped workpiece
interferes with the handle rotation.
SPEED HANDLE (FIG. 9)
1. Insert the speed handle (Fig. 9 - 6) into the threaded
opening on the speed hub (Fig. 9 - 7).
2. Manually tighten the handle into the opening.
MOUNTING THE DRILL PRESS (FIG. 10)
The drill press must be securely fastened through the
mounting holes (Fig. 10 - 8) to a stand or workbench with
heavy-duty fasteners (not included). This will prevent the
drill press from tipping over, sliding, or walking during
operation.
IMPORTANT: If the stand or workbench has a tendency to
move during operation, fasten the workbench securely to
the floor.
12
1
2
3
4
5
6
7
8
8
3
CAUTION: The drill press head is heavy. To avoid
injury, two people should lift it into position.
Fig. 10
Fig. 9
Fig. 8
Fig. 7
