Wen 56035

9. Use the 27mm socket and adjustable or combination wrench to remove the two mounting bolts and nuts from
the vibrating assembly (Figs. 8 & 9). You may need a breaker bar or impact wrench to remove the nuts and
bolts.

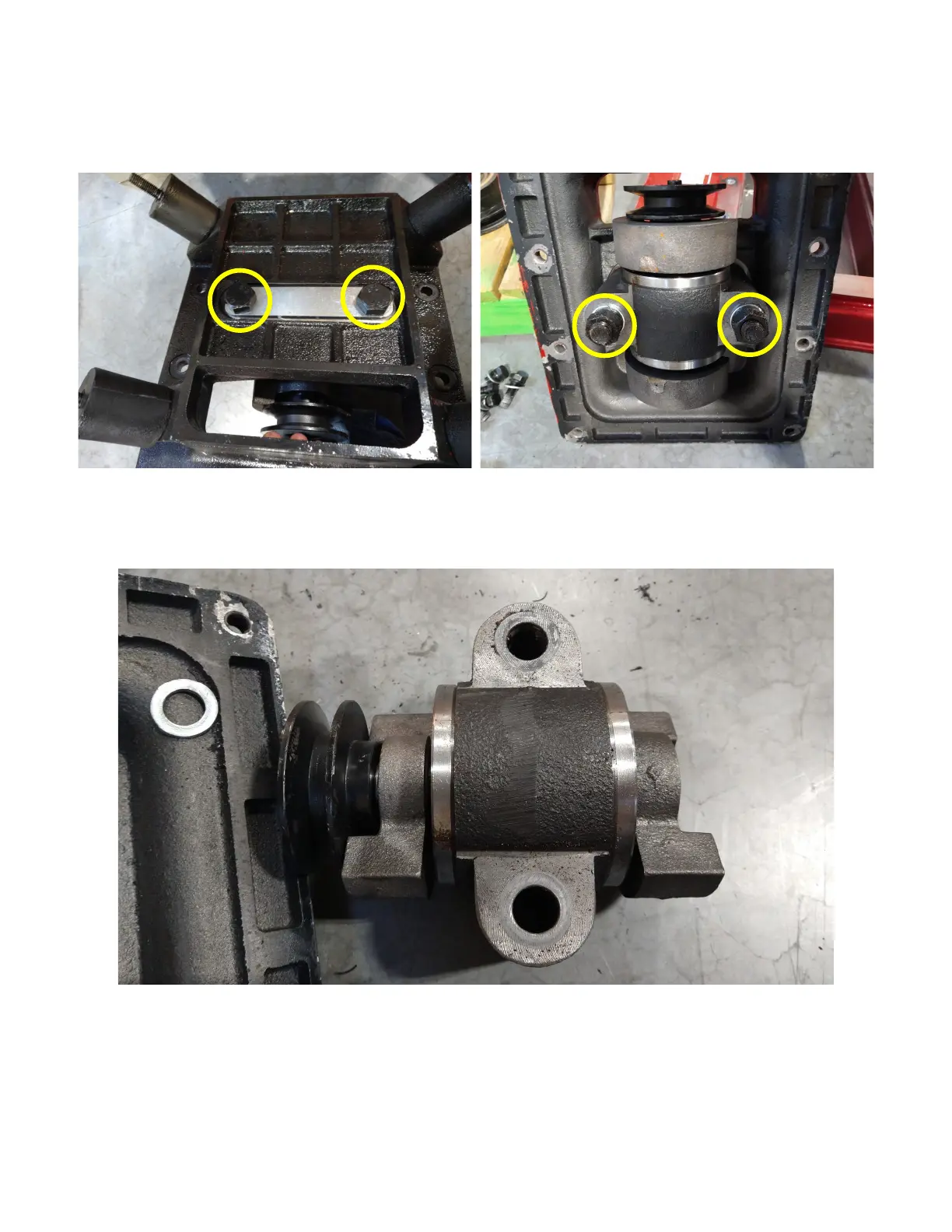

Fig. 8: Remove these bolts (top of assembly). Fig. 9: Remove these nuts (bottom of assembly).
10. Remove the old vibrating assembly from the exciter seat (Fig. 10).
Date last modified: 2023/01/30
Fig. 10: Vibrating assembly removed.
