No. Part Number Description Speciﬁcation Qty.

1 56035-G-001 Eccentric Block  2

2 56035-G-002 Oil Seal 28 x 50 x 10 2

3 56035-G-003 Bearing Cover  2

4 56035-G-004 Bearing 6306 2

5 56035-G-005 Bearing Seat  1

6 56035-G-006 Key 6 x 6 x 20 3

7 56035-G-007 Main Shaft  1

8 56035-G-008 Inner Hexagon Bolt M6 x 16 6

9 56035-G-009 Spring Gasket Ø6 6

10 56035-G-010 Clip Ø24 2

11 56035-G-011 Pulley 84 x 35 1

12 56035-G-012 Conical Flat Washer 8 x 30 x 6 1

13 56035-G-013 Spring Washer Ø8 1

14 56035-G-014 Inner Hexagon Bolt M8 x 20 1

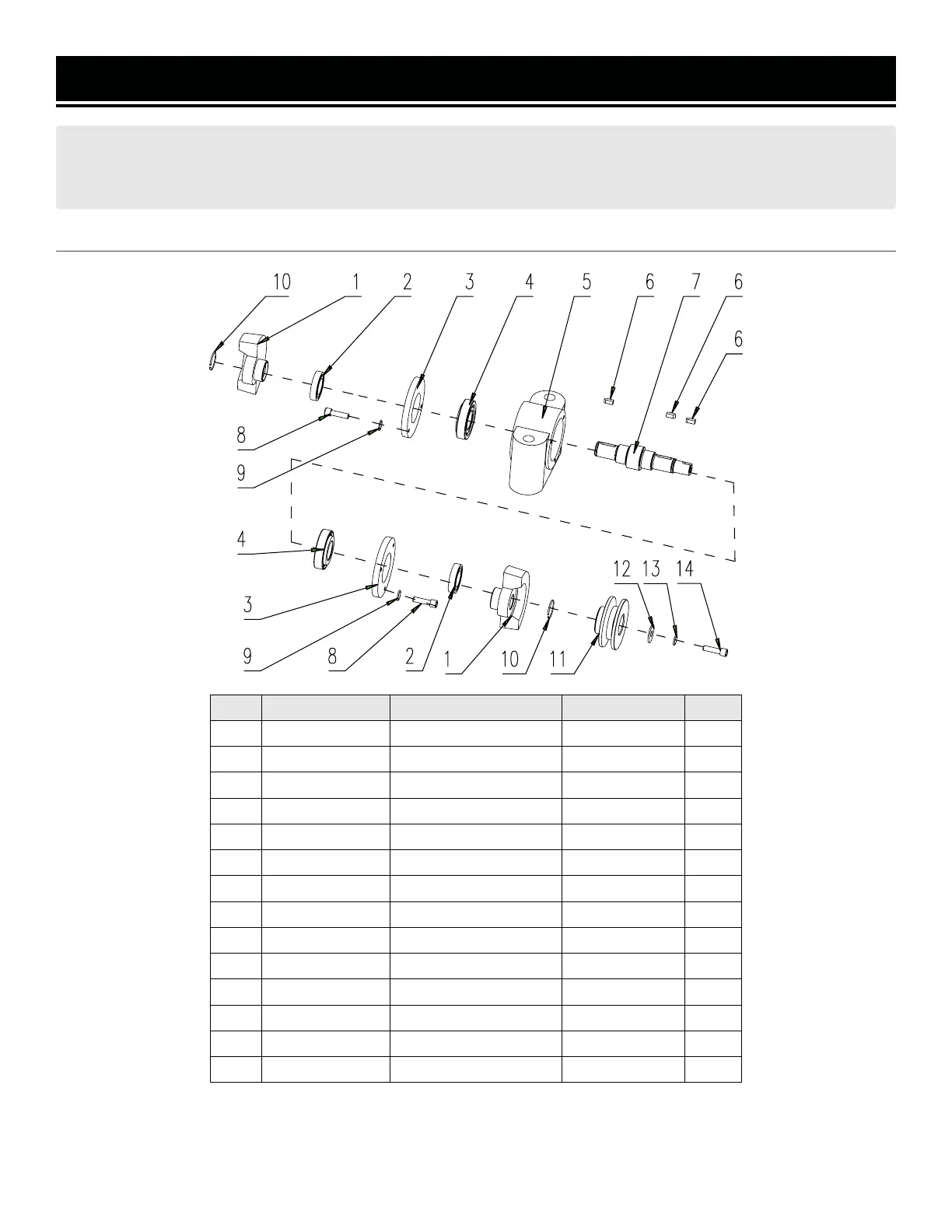

VIBRATOR ASSEMBLY

EXPLODED VIEW & PARTS LIST

NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at

1-847-429-9263, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not

covered by the two-year warranty. Not all parts may be available for purchase.

NOTE: These parts are available as a complete assembly (vibrator assembly, part 56035-023).

If you wish to purchase this assembly, please visit www.wenproducts.com

Visit www.wenproducts.com to purchase the vibrating assembly repair kit (part 56035-G-004ASM).
