ADJUSTING THE AIR OUTLET (Fig. 4)
Air will be released from the air outlet during operation. Rotate the
adjustable air outlet cap (Fig. 4) on the top of the nailer to direct the
released air to your preferred direction, away from yourself and others.
NON-MARRING TIP (Fig. 5)
The rubber non-marring tip (Fig. 5 - 1) is attached to the safety brack-
et to reduce marring and damage to your workpiece during opera-
tion. The non-marring tip can be removed from the safety bracket to
increase the driving accuracy. However this may leave dents on your
workpiece.
WARNING: Disconnect tool from air supply before re-
moving or installing the non-marring tips.

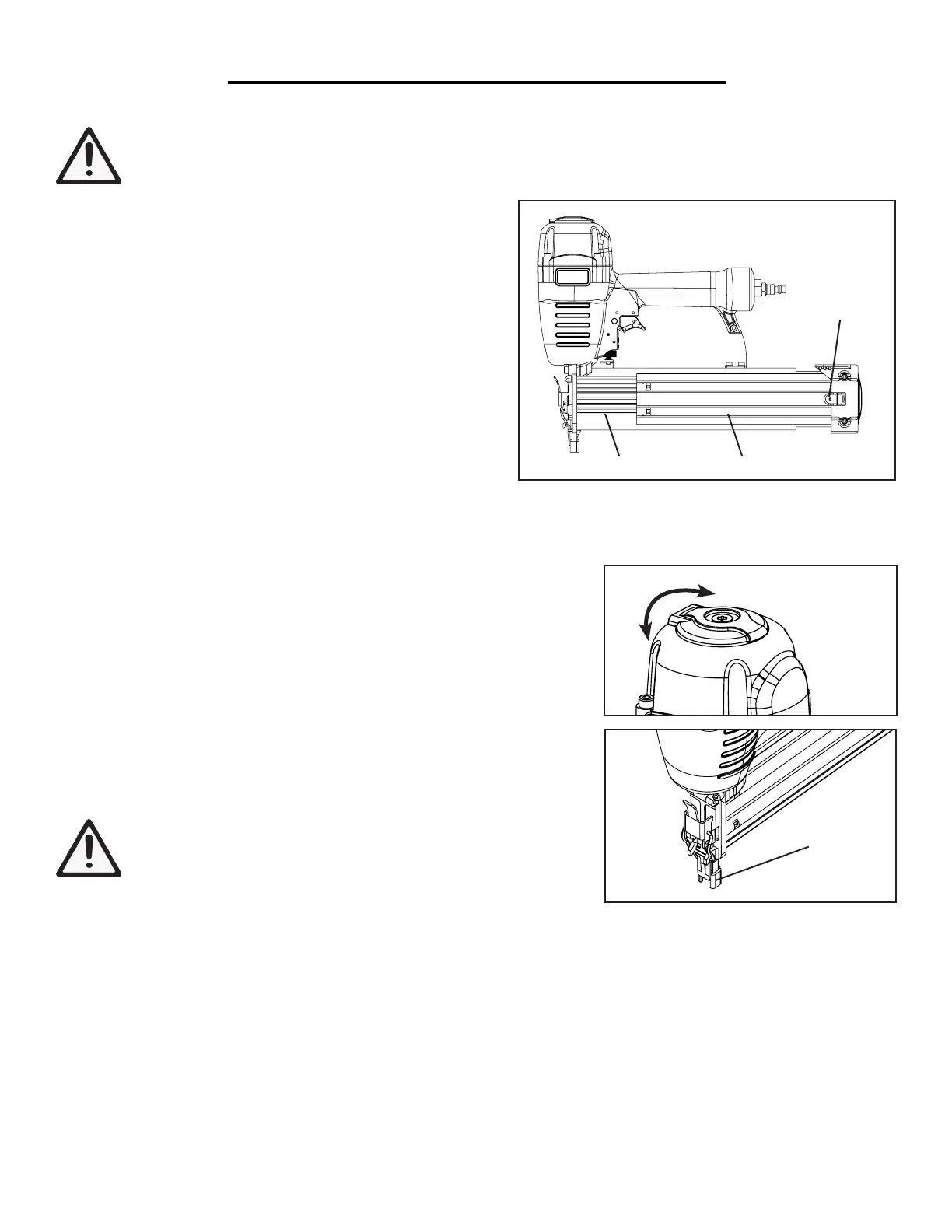

LOADING THE FASTENERS (Fig. 3)
WARNING: Always load the fasteners after connecting the tool to its air supply. Never aim the tip of the
nailer at a person or animal in case of misfire.
PREPARATION AND ADJUSTMENTS
9
Fig. 3
Fig. 4
Fig. 5
1
1
23
1. Press the magazine lock (Fig. 3 - 1) to pull back the mov-
able magazine (Fig. 3 - 2).
2. Your nailer accepts 16 gauge brad nails with a nail length
ranging from 3/4” to 2-1/2”. A maximum of 100 fasteners
may be loaded. Make sure the heads of the nails rest on the
appropriate ridge inside the fixed magazine (Fig. 3 - 3) and
the tips of the nails rest in the bottom slot against front of the
magazine.
3. Push forward the movable magazine until it clicks into
place.
NOTE: Pay attention to the low nail indicator on the side of the magazine. When the indicator becomes red, that
means the nail count in the magazine is low. Refill the magazine to prevent the nailer from dry-firing.
