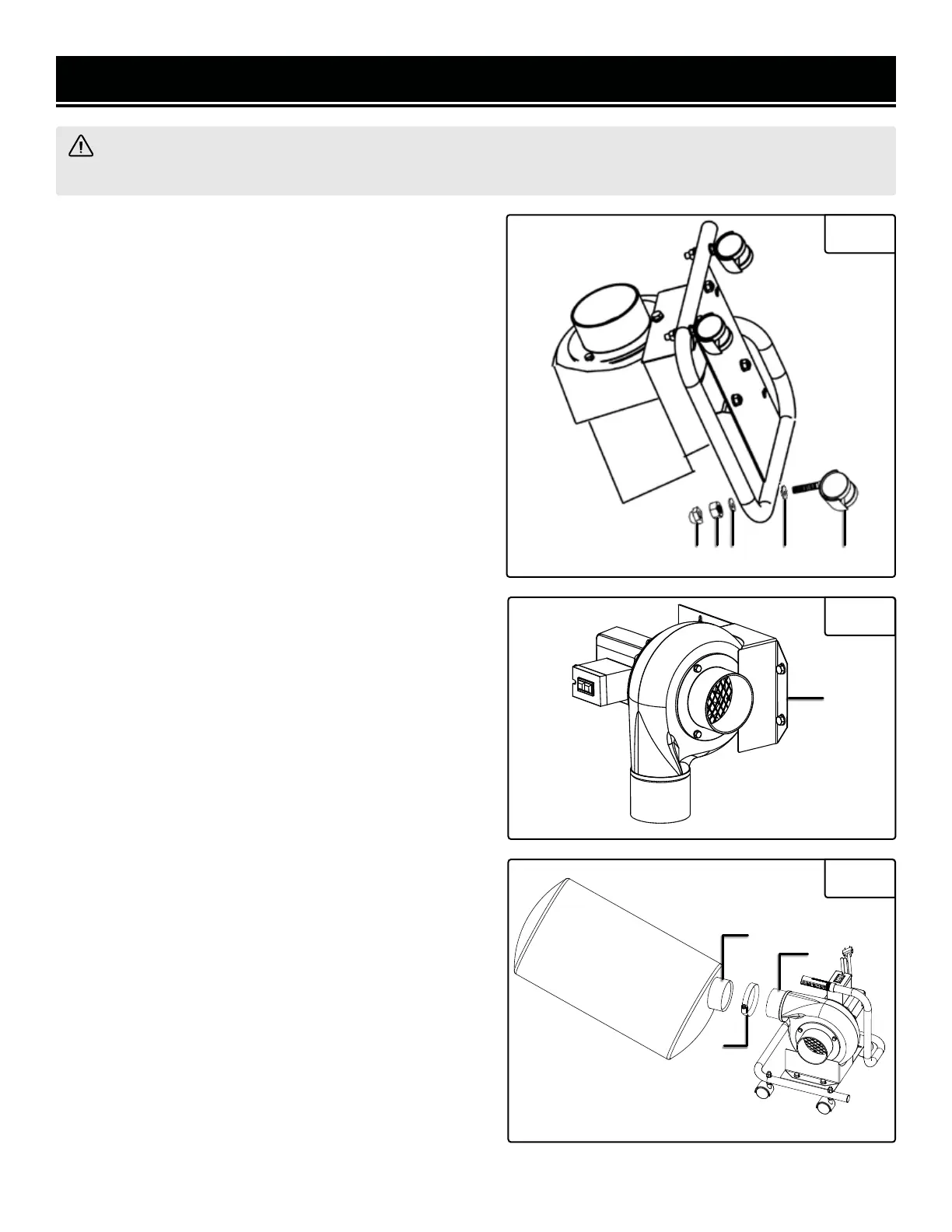

CASTER ASSEMBLY

Your dust collector comes installed on a roller base. Install

the casters onto the roller base to be able to move your

dust collector around.

1. Slide the caster (Fig. 2 - 1) through a washer (Fig. 2 - 2)

and a mounting hole in the corner of the roller base.

2. Place another washer (Fig. 2 - 3) on the threaded por-

tion of the caster above the roller base.

3. Thread the hex nut (Fig. 2 - 4) onto the caster.

4. Tighten the cap nut (Fig. 2 - 5) onto the caster to secure

it in place.

5. Repeat the steps above to assemble the three remaining

casters.

WALL MOUNTING

Your unit can also be mounted onto the wall. Remove the

roller base. Position the dust collector onto the wall next

to a matching power outlet. Leave enough room on the

bottom for the collection bag. Mount the unit onto the wall

using appropriate nuts and bolts through the four mount-

ing holes on the mounting bracket (Fig. 3 - 1).

COLLECTION BAG ASSEMBLY

1. Place the clamp (Fig. 4 - 2) over the exhaust port of the

dust collector (Fig. 4 - 1).

2. Place the mouth of the collection bag (Fig. 4 - 3) over

the exhaust port. Then, slide the clamp (Fig. 4 - 2) over the

mouth of the bag.

3. Tighten the clamp using a ﬂat-head screwdriver.

NOTE: Do not remove the safety screen or the inlet. Doing

so will alter the airﬂow and damage the impeller / motor.

ASSEMBLY & ADJUSTMENTS

WARNING! Do not attempt to plug in or operate your tool until the entire operator’s manual has been read

and understood. Failure to do so could result in personal injury and damage to the tool.

12345

Fig. 2

Fig. 3

Fig. 4
