Wen DF250iX

No. Part No. Description Qty.
3-1 56200-1001
Crankshaft
Subassembly
1
3-2 56200-1002
Connecting Rod
Subassembly
1
3-3 56200-1003 Piston 1
3-4 56200-1004 Piston Pin Clip 2
3-5 56200-1005 Piston Pin 1
3-6 56200-1007 Piston Ring Set 1

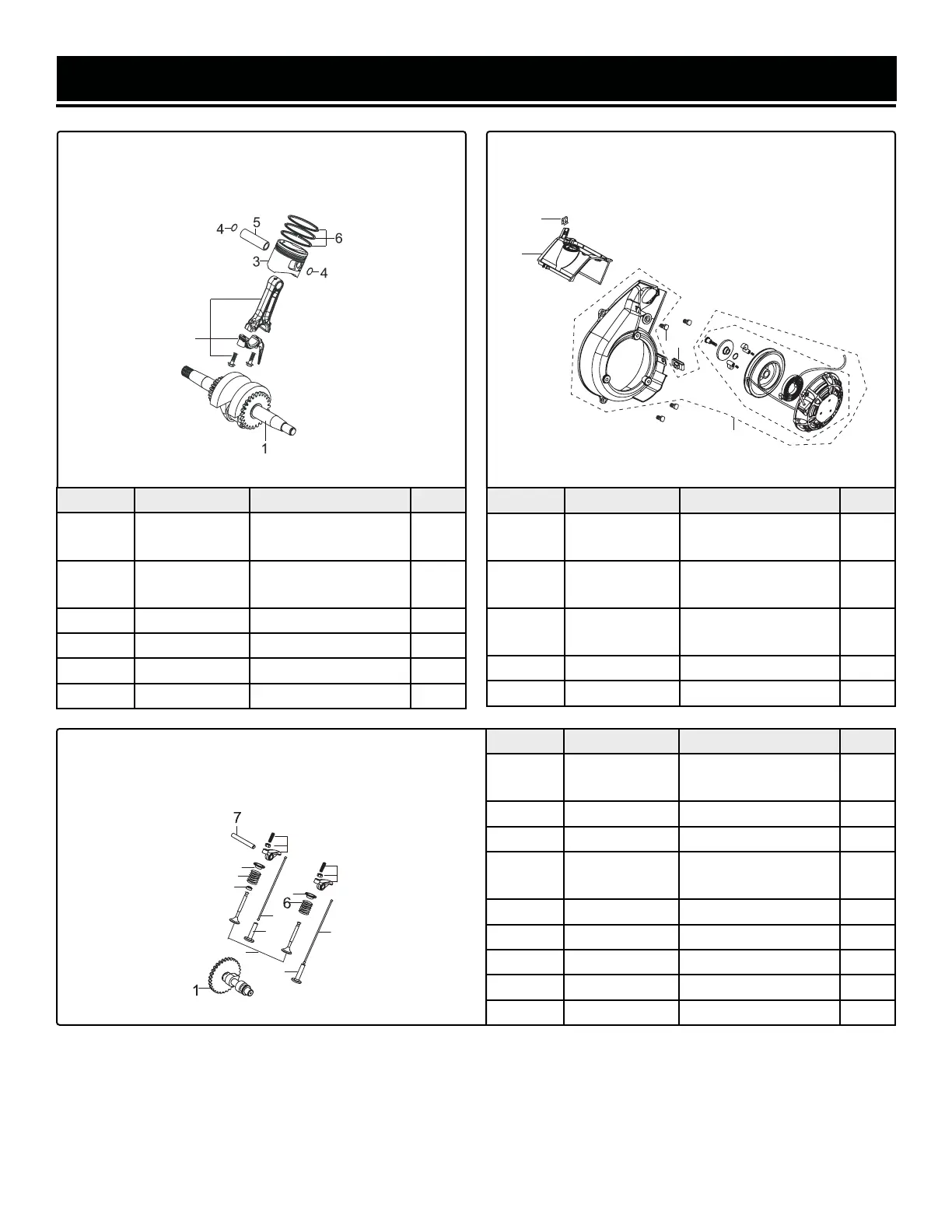

EXPLODED VIEW & PARTS LIST
FIG. 3 - RING SET, PISTON, &
CONNECTING ROD SUBASSEMBLIES
No. Part No. Description Qty.
4-1 56225i-1101
Camshaft
Subassembly
1
4-2 56200-1103 Valve Tappet 2
4-3 56200-1104 Valve Set 1
4-4 56200-1105
Valve Rocker Sub-
assembly
2
4-5 56200-1106 Valve Spring 2
4-6 56200-1107 Valve Spring Seat 2
4-7 56200-1112 Valve Rocker Shaft 1
4-8 56200-1113 Seal Guide 1
4-9 56200-1114 Valve Lifter 2
FIG. 4 - VALVE TRAIN &
CAMSHAFT SUBASSEMBLY
No. Part No. Description Qty.
5-1 DF250i-0501
Recoil Starter
Subassembly
1
5-2 56200-1203 Bolt, M6x16 4
5-3 56200-1208
Cylinder Head
Shroud
1
5-4 56200-1209B Detent Insert 1
5-5 56200-1210 Nut Clip 1
FIG. 5 - RECOIL STARTER
SUBASSEMBLY
