Wen DF360iX - Page 37

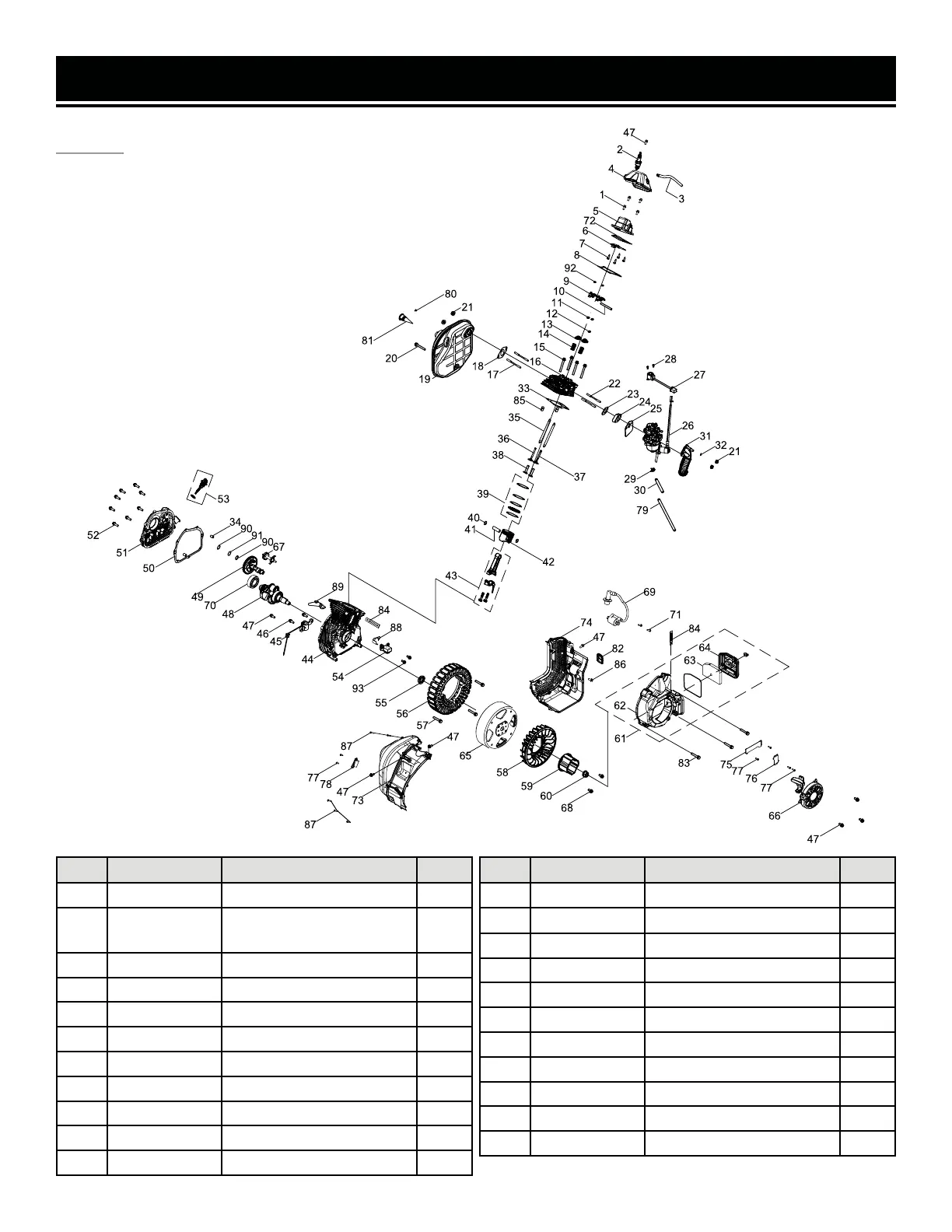

EXPLODED VIEW & PARTS LIST
ENGINE
NO. PART NO. DESCRIPTION QTY.
1 56202i-152 Bolt, M6x20 4
2 56360iX-002
Spark Plug, Torch E6RTC
(NGK BPR6HS)
1
3 56202i-103 Breather Hose 1
4 56360iX-004 Valve Cover 1
5 56360iX-005 Valve Cover Assembly 1
6 56360iX-006 Inner Cover, Valve Cover 1
7 56202i-107 Screw, M3x6 4
8 56360iX-008 Gasket, Valve Cover 1
9 56360iX-009 Rocker Arm Assembly 2
10 56360iX-010 Rocker Arm Coreshaft 1
11 56202i-111 Valve Locker 2
NO. PART NO. DESCRIPTION QTY.
12 56360iX-012 Intake Valve Seal 1
13 56202i-113 Valve Spring Seat 2
14 56360iX-014 Valve Spring 2
15 56360iX-015 Bolt, M8x60 4
16 DF360iX-116 Cylinder Head 1
17 56360iX-017 Stud, M6x82 2
18 56360iX-018 Gasket, Muffler 1
19 56360iX-019 Muffler 1
20 56360iX-020 Bolt, M6x75 1
21 56202i-121 Nut, M6 4
22 56202i-122 Stud, M6x87 2
