Wen DF360iX - Page 39

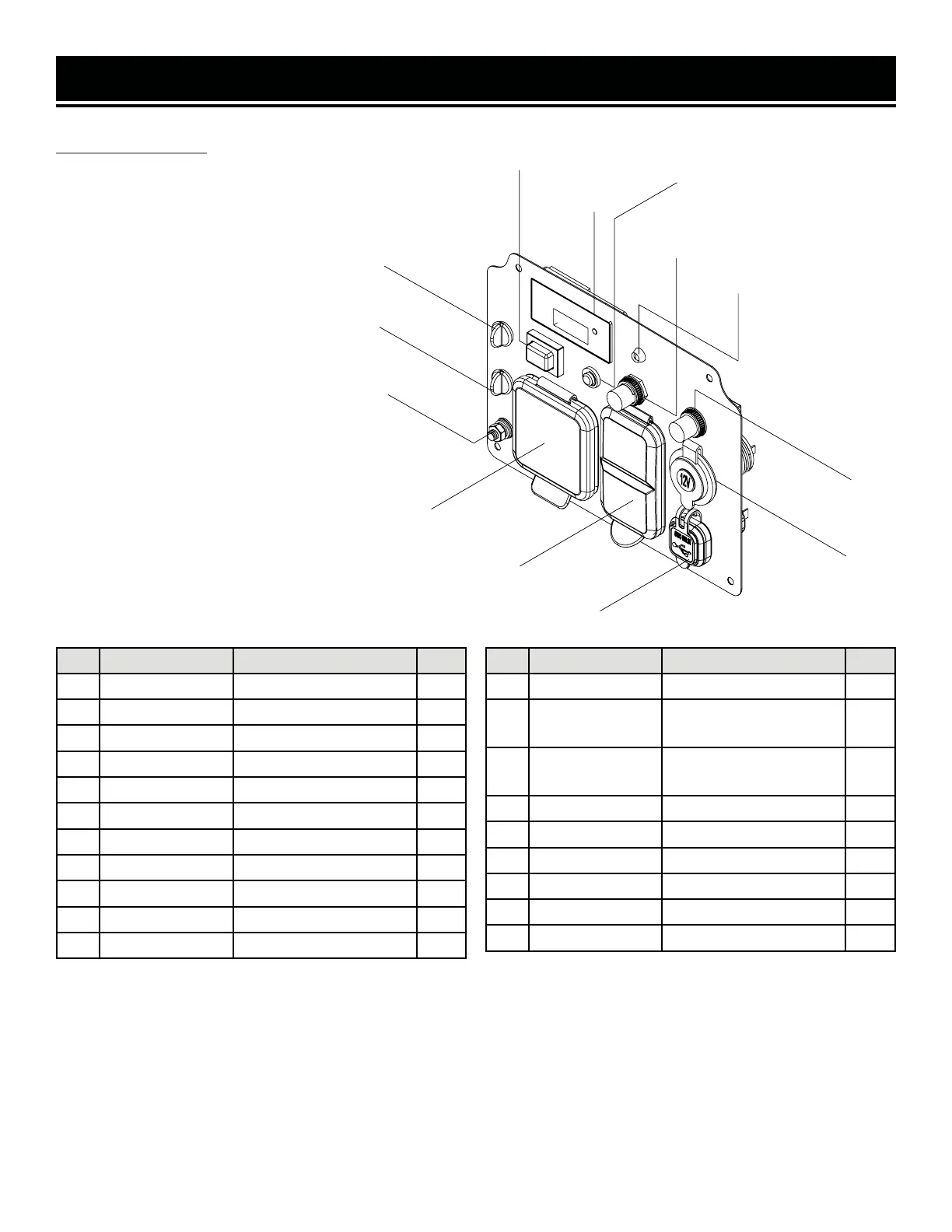

EXPLODED VIEW & PARTS LIST
CONTROL PANEL
NO. PART NO. DESCRIPTION QTY.
1 56203i-005.14B Parallel Outlet (Black) 1
2 56203i-005.14R Parallel Outlet (Red) 1
3 56360iX-159 Nut, M6 1
4 56203i-005.11 Washer, 6mm 1
5 56203i-005.12 Washer, 6mm 1
6 56360iX-162 Earth Stud 1
7 DF360iX-207 Washer, 6mm 1
8 56360iX-164 Washer, 5mm 1
9 56360iX-165 Washer, 5mm 1
10 56360iX-166 Nut, M5 1
11 DF360iX-211 Multi-meter 1
NO. PART NO. DESCRIPTION QTY.
12 56203i-005.4 Eco-mode Switch 1
13 DG4500iX-207
NEMA TT-30R 120V
30A AC Outlet
1
14 DG4500iX-208
NEMA 5-20R 120V
20A AC Duplex Outlet
1
15 56360iX-171 USB 1
16 56203i-005.2 DC 12V Outlet 1
17 56500-208 Breaker, AC 20A 1
18 56360iX-175 LED 1
19 56203i-005.5 Breaker, AC 8A 1
20 DF360iX-020 Reset Button 1
39
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
1
2
3 4 5 6 7 8 9 10
11
12
13
14
15
16
19
17
18
20
