Wen DF500iX - Page 11

11
KNOW YOUR INVERTER GENERATOR

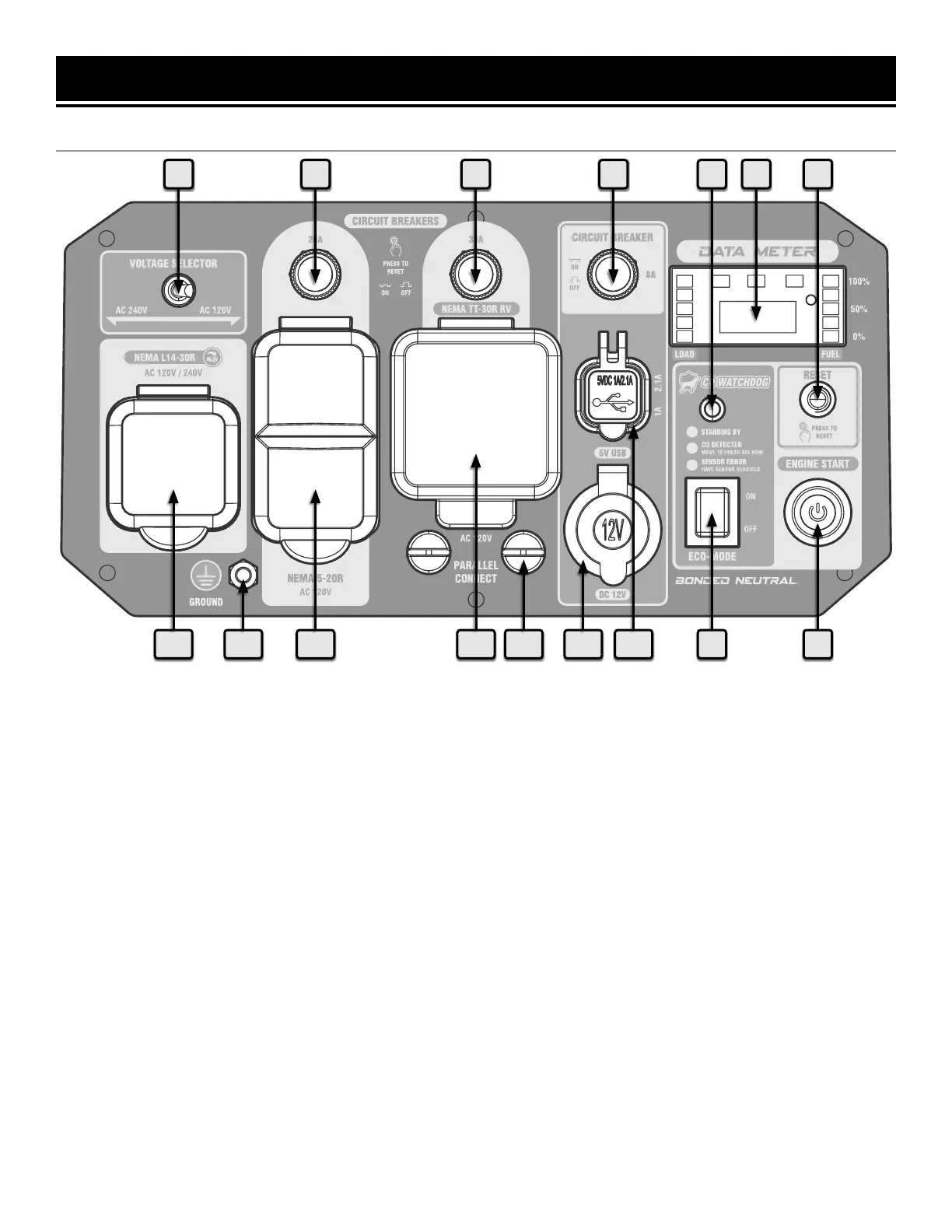

CONTROL PANEL
1. Voltage Selector
Sets the generator’s output voltage to 120V or 240V. When
the switch is set to 120V, the 120V and parallel outlets are
active; when the switch is set to 240V, the L14-30R outlet is
active.
2. AC Circuit Breaker (20A)
Press to reset the NEMA 5-20R recepticles.
3. AC Circuit Breaker (30A)
Press to reset the NEMA TT-30R RV recepticle.
4. DC Circuit Breaker (8A)
Press to reset the USB and 12V recepticles.
5. CO WATCHDOG Carbon Monoxide Monitor
Measures the accumulation of poisonous CO gas while the
generator is running. If the level of CO gas gets too high, the
CO Watchdog system will automatically shut down the gen-
erator. See p. 26 for more information.
6. Data Meter with Indicator Light
Displays load level (left), fuel level (right), voltage (e.g. V120),
frequency (e.g. F60.0), session runtime (e.g. A 0.0), and total
runtime (e.g. 0.0). Press MODE to switch between displays.
7. Reset Button
Press to reset the circuit in case of overload.
8. Engine Start Button
Press to start the generator.
9. Eco-Mode Switch
Maximizes fuel economy & run time.
10. 5V USB Port
1A & 2.1A for charging various electronic devices.
11. 12V DC Outlet
Cigarette-style outlet provides DC power.
12. Parallel Connection
Connect to share wattage between inverter generators. 120V
only.
13. AC 120V NEMA TT-30R RV Receptacle
Standard RV connector.
14. AC 120V NEMA 5-20R Duplex Receptacles
Standard household outlets provide 120V 60Hz power.
15. Grounding Nut
Ground the generator to reduce the risk of electric shock.
16. AC 120/240V 30A NEMA L14-30R Receptacle
Connect electrical devices that run on 120V/240V, 60 Hz,
single phase, AC current.
20A 30A
PARALLEL
CONNECT
8
2 3 4 5 76
1
910111213141516
