Wen DT1315

NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.

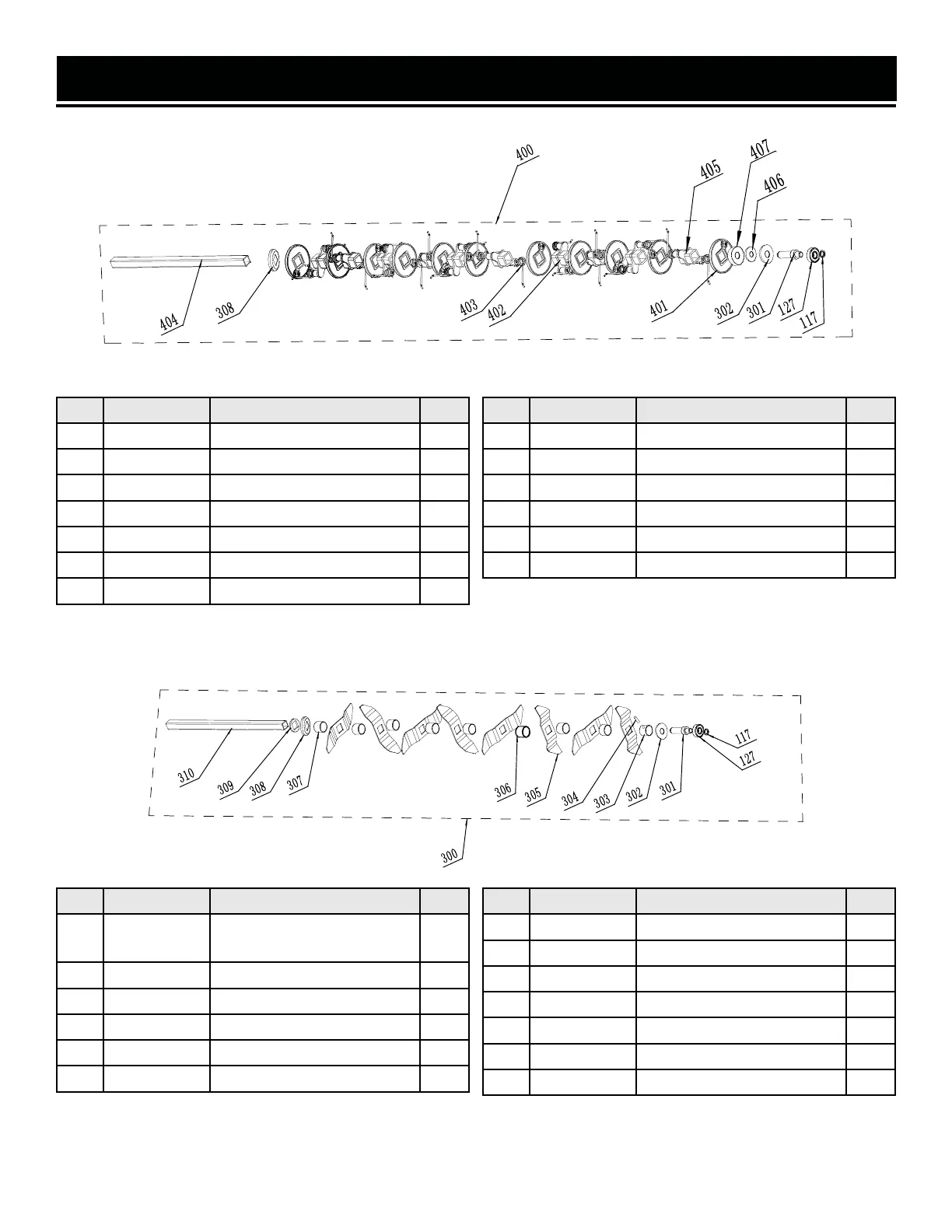

EXPLODED VIEW & PARTS LIST
SCARIFIER BLADE ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
300 DT1315-300 Scarifier Blade Assembly 1
301 DT1315-301 Bearing Shaft 1
302 DT1315-302 Bearing Shaft Washer 1
303 DT1315-303 Bearing Shaft Collar 1
304 DT1315-304 Set Pin 1
305 DT1315-305 Scarifier Blade 8
306 DT1315-306 Plastic Shaft Collar 7
NO. PART NO. DESCRIPTION QTY.
307 DT1315-307 Shaft Collar 1
308 DT1315-308 End Cap 1
309 DT1315-309 Blade Rod Washer 1
310 DT1315-310 Blade Rod 1
117 DT1315-117 Circlip 1
127 DT1315-127 Bearing 1
DETHATCHER BLADE ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
400 DT1315-400
Dethatcher Blade
Assembly
1
401 DT1315-401 Blade Rod Divider 13
402 DT1315-402 Scraper Tine Mount 11
403 DT1315-403 Scraper Tine 24
404 DT1315-404 Blade Rod 1
405 DT1315-405 End Scraper Tine Mount 1
NO. PART NO. DESCRIPTION QTY.
406 DT1315-406 Washer 1
407 DT1315-407 Steel Washer 1
117 DT1315-117 Circlip 1
127 DT1315-127 Bearing 1
301 DT1315-301 Bearing Shaft 1
302 DT1315-302 Bearing Shaft Washer 1
308 DT1315-308 End Cap 1
