Wen DT1315

NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.

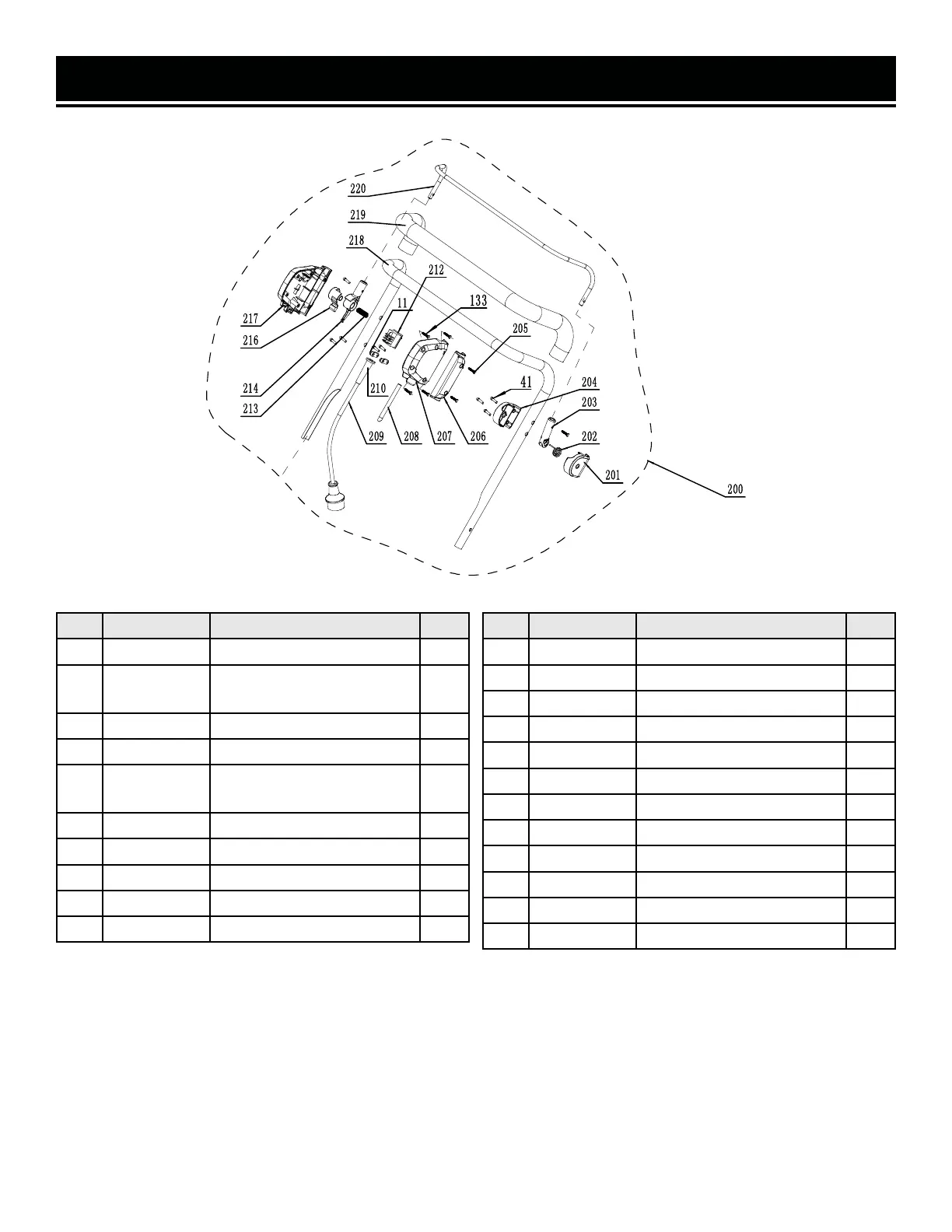

EXPLODED VIEW & PARTS LIST
HANDLE ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
200 DT1315-200 Upper Handle Assembly 1
201 DT1315-201
Trigger Handle Outside
Bracket
1
202 DT1315-202 Trigger Spring 1
203 DT1315-203 Right Trigger Handle Arm 1
204 DT1315-204
Trigger Handle Inside
Bracket
1
205 DT1315-205 Switch Housing Screw 2
206 DT1315-206 Switch Handle Bracket 1
207 DT1315-207 Rear Switch Housing 1
208 DT1315-208 Switch Wire 1
209 DT1315-209 Power Plug 1
NO. PART NO. DESCRIPTION QTY.
210 DT1315-210 Cord Strain Relief 1
212 DT1315-212 Power Switch 1
213 DT1315-213 Power Button Spring 1
214 DT1315-214 Trigger Handle Switch 1
216 DT1315-216 Power Switch Button 1
217 DT1315-217 Power Switch Housing 1
218 DT1315-218 Upper Handle Tube 1
219 DT1315-219 Upper Handle Grip 1
220 DT1315-220 Trigger Handle 1
41 DT1315-041 Housing Screw 3
11 DT1315-011 Press Plate 2
133 DT1315-133 Belt Housing Screw 10
21
