Wen DT1315

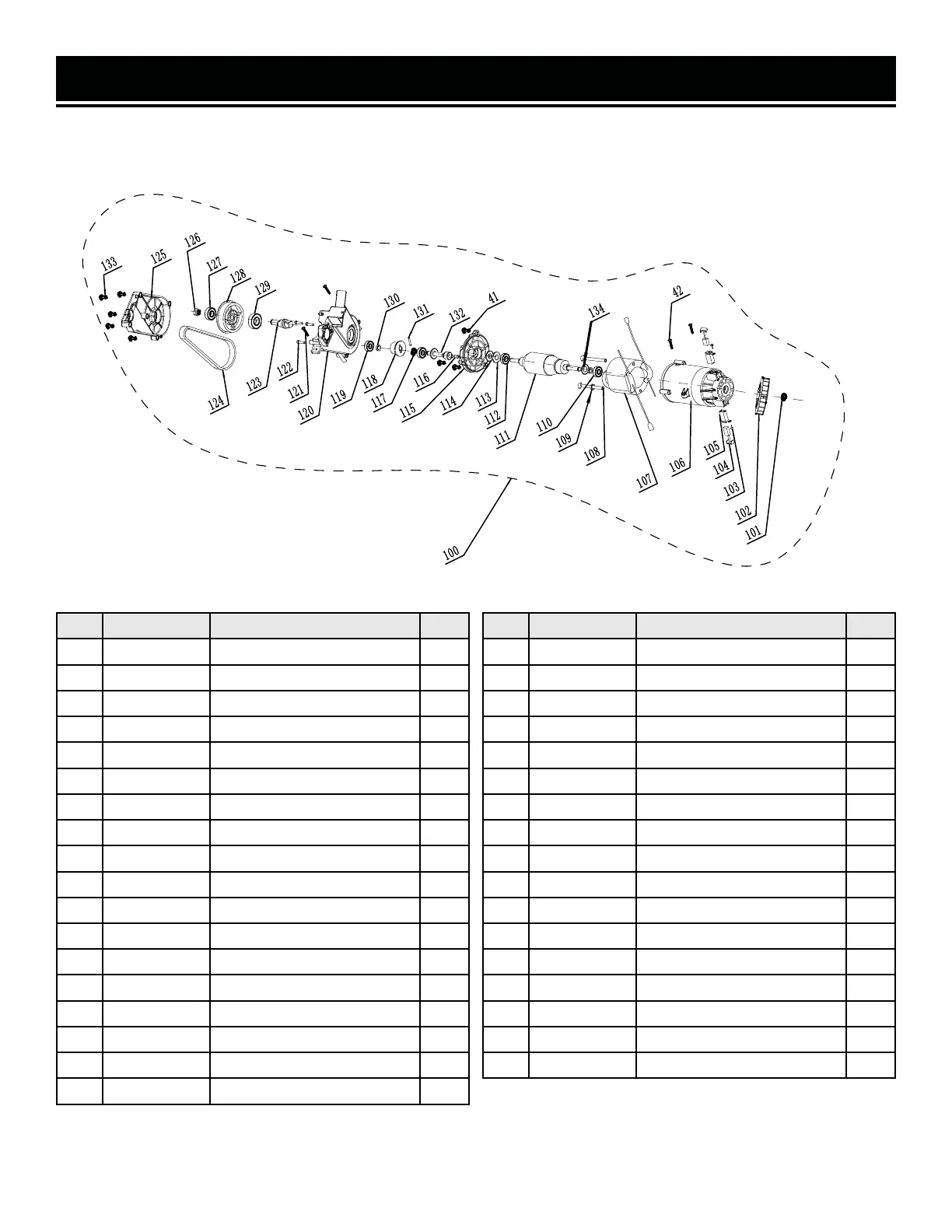

EXPLODED VIEW & PARTS LIST
MOTOR ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
100 DT1315-100 Motor Assembly 1
101 DT1315-101 Washer 1
102 DT1315-102 Motor Fan 1
103 DT1315-103 Motor Screw 2
104 DT1315-104 Carbon Brush 2
105 DT1315-105 Carbon Brush Holder 2
106 DT1315-106 Motor Housing 1
107 DT1315-107 Stator Assembly 1
108 DT1315-108 Stator Screws 2
109 DT1315-109 Stator Washer 2
110 DT1315-110 Motor Bearing 2
111 DT1315-111 Rotor Assembly 1
112 DT1315-112 Stator Bearing 2
113 DT1315-113 Motor Gasket 2
114 DT1315-114 Felt Gasket 1
115 DT1315-115 Motor End Cover 1
116 DT1315-116 Shaft Bearing 1
117 DT1315-117 Circlip 1
NO. PART NO. DESCRIPTION QTY.
118 DT1315-118 Shaft Wheel 1
120 DT1315-120 Pulley Housing 1
121 DT1315-121 Self-Tapping Screw 2
122 DT1315-122 Screw M4x20 3
123 DT1315-123 Drive Belt Pulley 1
124 DT1315-124 Drive Belt 1
125 DT1315-125 Drive Belt Housing 1
126 DT1315-126 Nut M8 1
127 DT1315-127 Bearing 1
128 DT1315-128 wheel 1
129 DT1315-129 Pulley Bearing 1
130 DT1315-130 Shaft Washer 2
131 DT1315-131 Set Pin 1
132 DT1315-132 Drive Shaft 1
133 DT1315-133 Belt Housing Screw 5
41 DT1315-041 Housing Screw 3
42 DT1315-042 Bracket Screw 2
20
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
