Wen WB4723 Manual

ASSEMBLY & ADJUSTMENTS

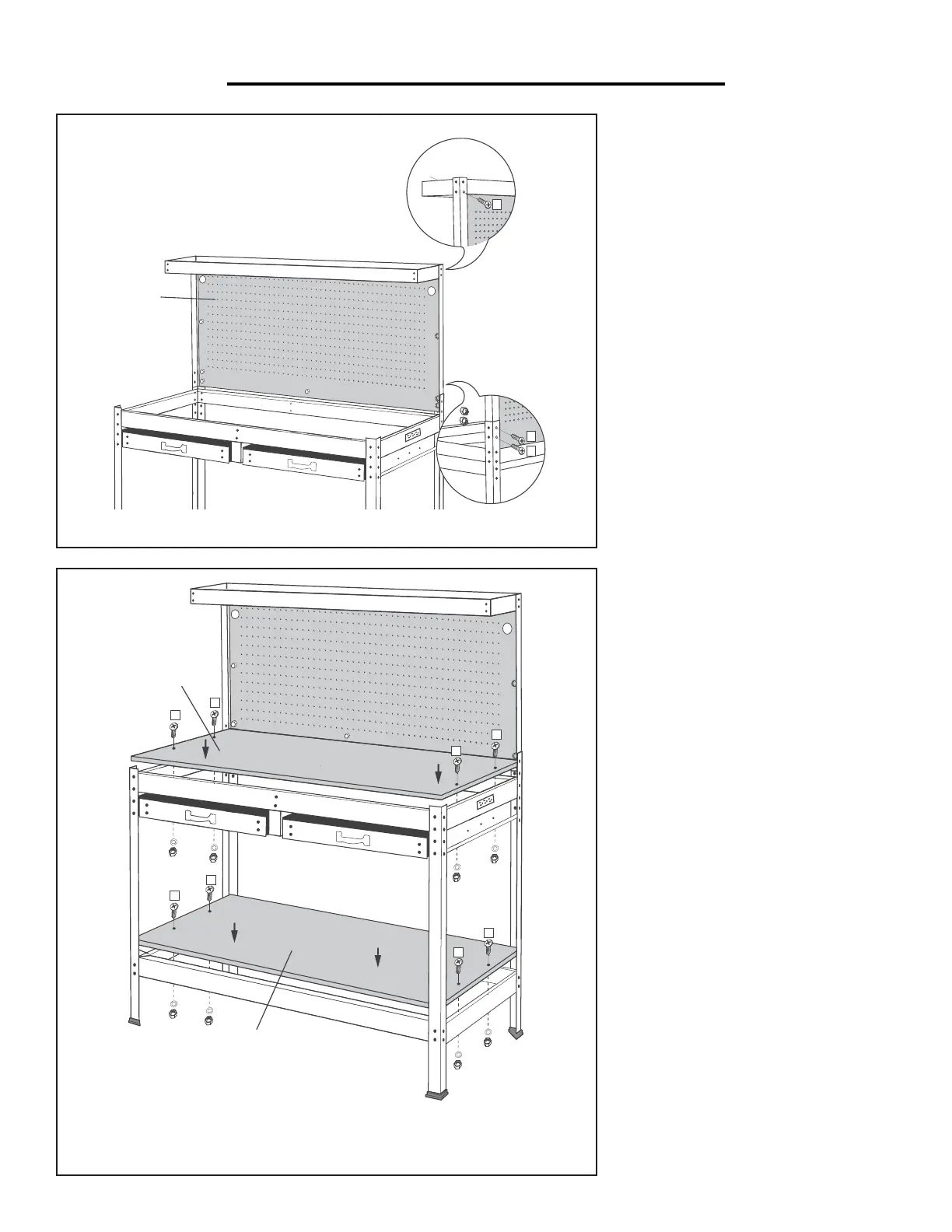

17. Attaching Pegboard (18)
Attach the pegboard (18) to the back
upper posts (15), using M6x16 bolts,
washers, nuts (C). See Figure I.
18. Attaching Bench Top &
Bottom Shelf (19, 20)
Attach the bench top (19) to the
upper side beams (4, 4A) and the
bottom shelf (20) to the lower side
beams (4), using M5x25 bolts, wash-
ers and nuts (D). See Figure J.
Page 7
17. Attach Pegboard (18) to Back Upper Posts (15)
using Bolts, Washers and Nuts (C).
(See Figure I.)
Figure I
18. Attach Bench Top (19) to Side Beams (4, 4A) and
Bottom Shelf (20) to Side Beams (4) using Bolts,
Washers and Nuts (D). (See Figure J.)
Figure J
19. Attach Top Shelf (21) to the Shelf Beams (17L, 17R)
using Bolts, Washers and Nuts (D). (See Figure K.)
Figure K
D
D
D
D
D
D
D
D
19
20
D
D
D
D
21
C
C
18
C
Page 7
17. Attach Pegboard (18) to Back Upper Posts (15)
using Bolts, Washers and Nuts (C).
(See Figure I.)
Figure I
18. Attach Bench Top (19) to Side Beams (4, 4A) and
Bottom Shelf (20) to Side Beams (4) using Bolts,
Washers and Nuts (D). (See Figure J.)
Figure J
19. Attach Top Shelf (21) to the Shelf Beams (17L, 17R)
using Bolts, Washers and Nuts (D). (See Figure K.)
Figure K
D
D
D
D
D
D
D
D
19
20
D
D
D
D
21
C
C
18
C
12
