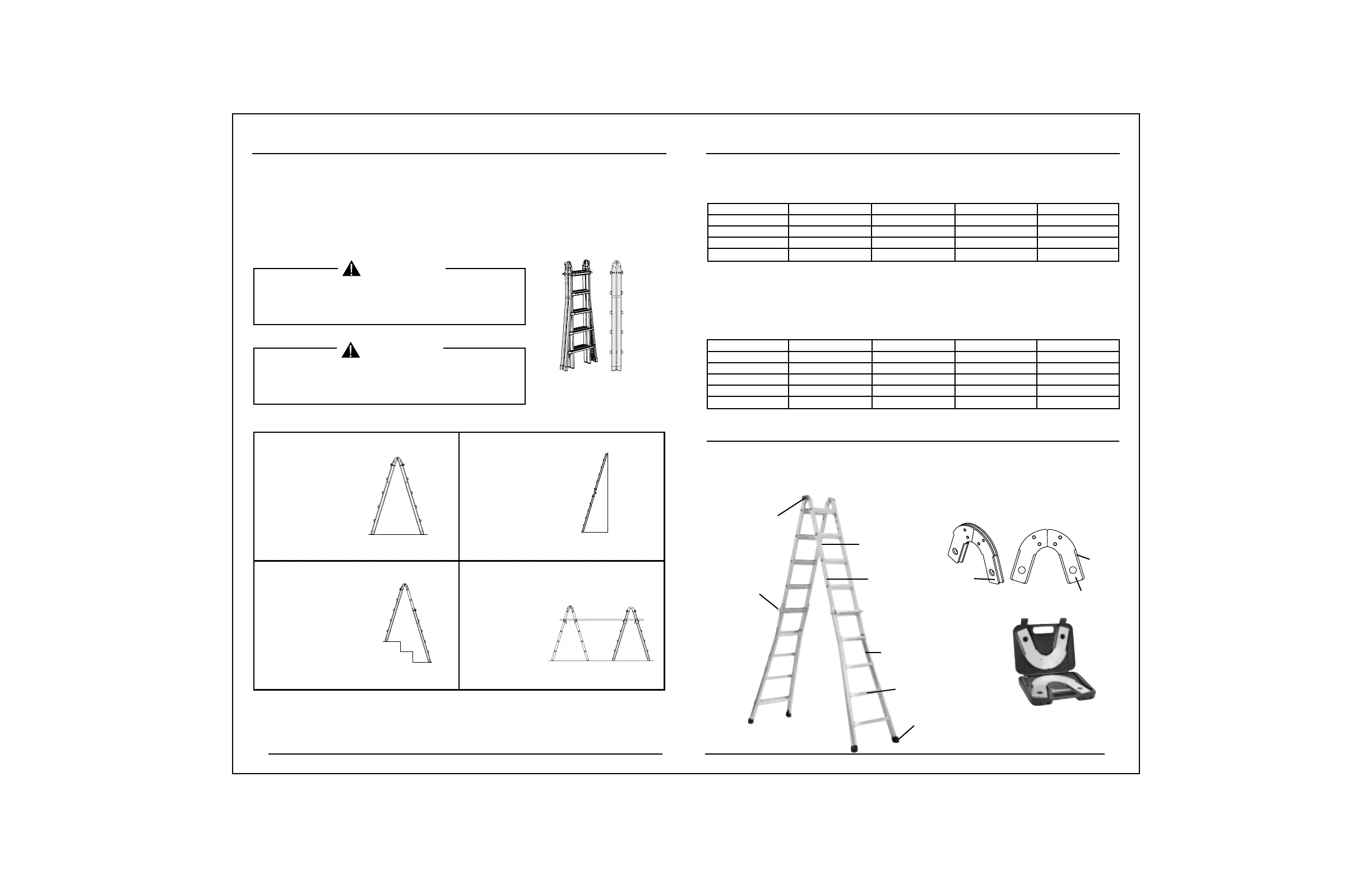

1 DESCRIPTION
PRODUCT OVERVIEW
The Werner MT Series Telescoping Multiladder is a professional grade, multi-purpose
ladder that can be changed into different positions and working heights. The MT Series
ladders consist of three sections and two different locking mechanisms.
(See Positions 1–4)
Use ladder only in positions as shown below. Any other
position is misuse of the product which could result in
serious injury or death.
WARNING
DO NOT overload ladder. Maximum weight of person,
tools, and materials are not to exceed duty rating of
300 lbs.
CAUTION
SEE PAGE 8
SEE PAGE 10
SEE PAGE 11
Position #1
TWIN STEPLADDER
Position #3
EXTENSION LADDER
Position #2
STAIRWAY STEPLADDER
Position 4 requires plank and tie down not included.
SEE PAGE 9
Position #4
SELF-SUPPORTING
2-SCAFFOLD BASE
(WITH PLANK &
TIE DOWNS)
STORAGE POSITION
Positions MT-13 MT-17 MT-22 MT-26
Step 3 4 5 6
Stair 3 6 10 15
Extension 5 7 9 11
Scaffold 2 3 4 5
Total 13 20 28 37
Maximum Reach* MT-13 MT-17 MT-22 MT-26
Step 9' - 4" 11' - 4" 13' - 2" 15' - 1"
Extension 14' - 11" 18' - 10" 22' - 8" 26' - 1"
Stair 9' - 4" 11' - 4" 13' - 2" 15' - 1"
Scaffold 8' - 5" 9' - 5" 10' - 4" 11' - 4"
WORKING HEIGHTS
POSITIONS
The following chart shows the number of available positions for each of the available units
in each of the 4 main positions.
These ladders are all rated type IA 300 lbs. and meet or exceed all ANSI standards for ladders.
* Assumes a 5' 6" person with a 12" vertical reach. Ladders extend in one foot increments.
Spend time to look at the figure below. Become familiar with names used to describe parts
of the Werner Telescoping Multiladder. They will be used throughout this manual.
TERMINOLOGY
MODEL MT-22
spring
loaded “J”
lock
Soft Touch
push knob
locking hinge
inner
ladder
section
ladder
side rail
outer ladder
section
rung / step
end cap
dynamic
hinge
outer
tab
inner tab
dynamic hinges
and case
The following chart shows the working heights of each of the available units in each of the
4 main positions.
