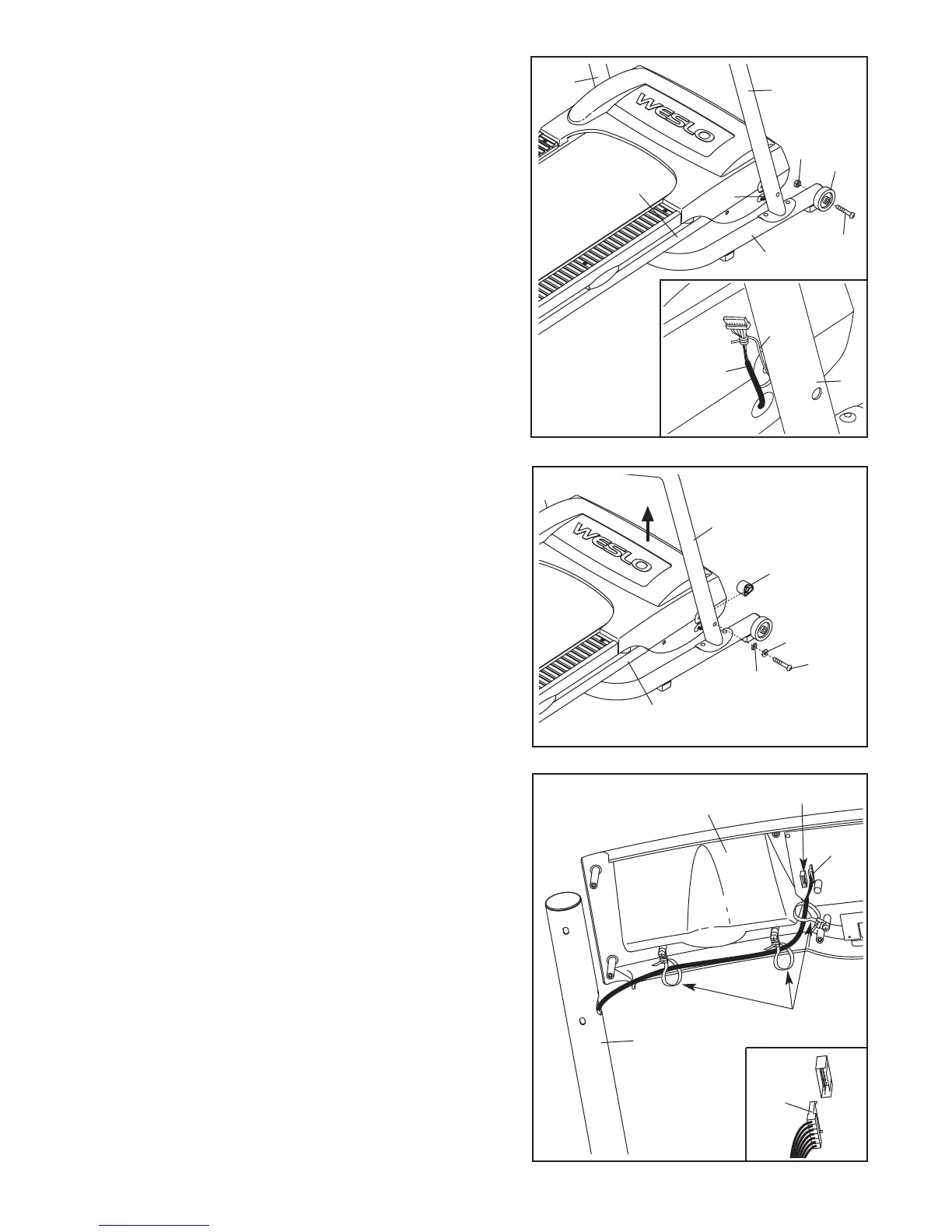

5. Hold the Console Base (1) near the Right Handrail (6).
Touch the Right Handrail to discharge any static.
Remove the wire from the end of the Wire Harness (22).
Insert the end of the Wire Harness through the three
looped plastic ties. Next, press the end of the Wire
Harness into the connector on the back of the Console
Base (1) in the location shown. The end of the Wire
Harness should slide easily into the connector and
snap into place. If it does not, turn the end of the Wire
Harness and then try again.
IF THE CONNECTORS ARE
NOT CONNECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS TURNED ON.
Plastic
Ties
Connector
1
6
22
4. Have a second person lift and hold the front end of the
Frame (55). Hold a Frame Spacer (13) between the Right
Handrail (6) and the Frame. Attach the Right Handrail to
the Frame with a Frame Bolt (10), a Handrail Washer
(30), and a Handrail Star Washer (60).
Repeat this step on the left side of the treadmill.
13
55
60
10
30
6
5
3. With the help of a second person, raise the Handrails
(6, 7) so the Base (71) is flat on the floor as shown.
Attach the Wheels (15) to the outer sides of the Base
(
71) with two Wheel Bolts (14) and two Nuts (17) as
shown. Do not overtighten the Nuts; the Wheels
should turn freely.
Position the front of the treadmill Frame (55) between the
Handrails (6, 7) as shown. Next, locate the long wire in-
side of the lower end of the Right Handrail (see the inset
drawing). Secure the end of the wire to the end of the
Wire Harness (22). Then, pull the other end of the wire
until the end of the Wire Harness is extending from the
upper end of the Right Handrail.
22
71
17
15
14
6
55
3
22
6
Wire
4
7
22
To Next Page
