ASSEMBLY
T
o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. Do not remove the long wire is inside the Right
Handrail until told to. Note: The underside of the treadmill walking belt is coated with high-performance lubricant.
During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping car-
ton. This does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the
lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrench and your own phillips screwdriver ,
adjustable wrenches , and wire cutters .
Note: To identify small parts used during assembly, see the PART IDENTIFICATION CHART in the center of
this manual. Some parts may be preassembled. To avoid damaging plastic parts, do not use power tools
for assembly.

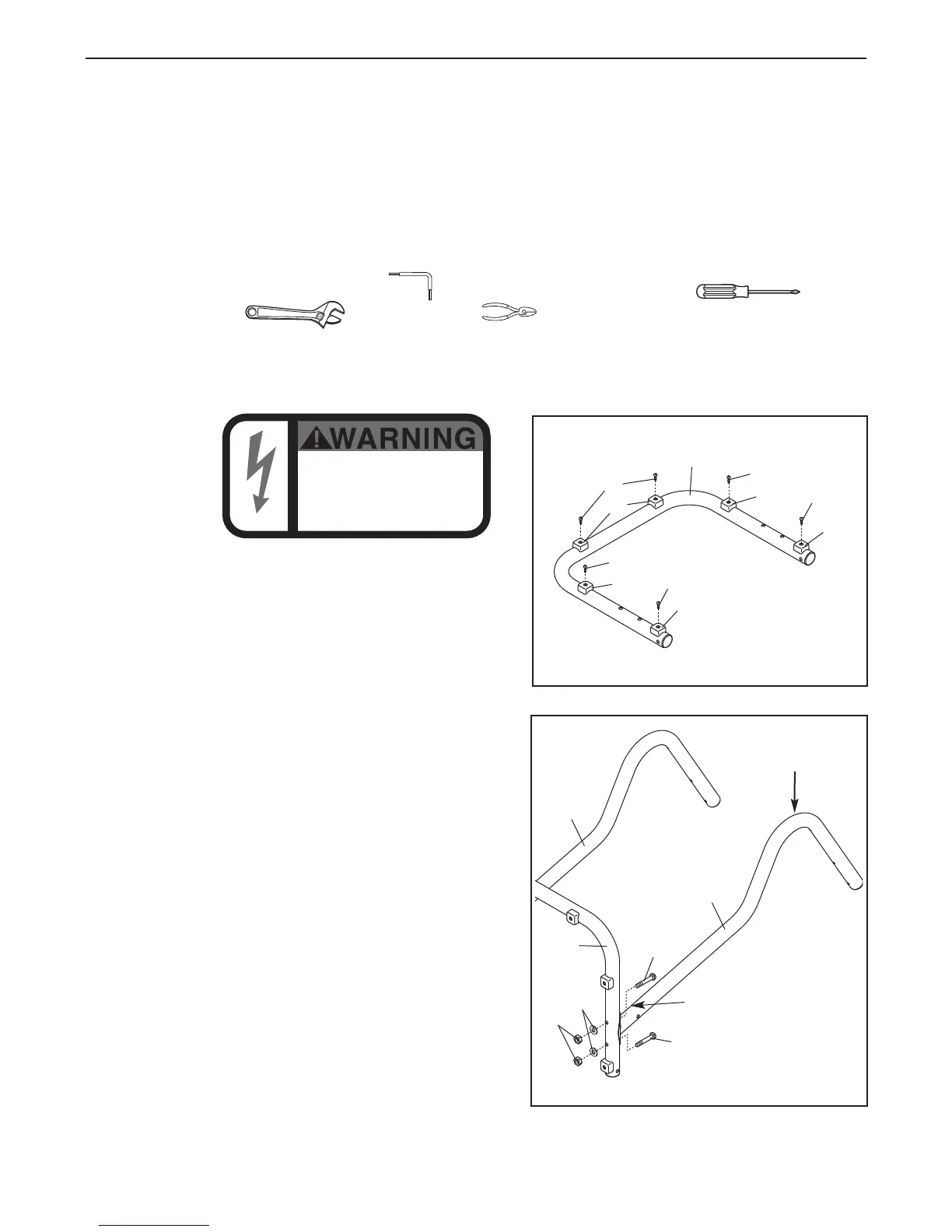

1. Attach the six
Base Pads
(19) to the
bottom of the
Base (71) with
six Base Pad
Screws (42).
Note: The Base Pads may be preassembled.
2. Have a second person hold the Base (71) in the position
shown.
Identify the Right Handrail (6), which has a large hole near
the lower end. Hold the Right Handrail so the bend is in
the position shown. Attach the Right Handrail to the
Base (71) with two Handrail Bolts (12), two Handrail
Washers (30) and two Nuts (17). Do not tighten the
Handrail Bolts yet.
Attach the Left Handrail (7) to the Base (71) in the same
way.
71
42
42
19
19
1
2
42
42
19
42
19
19
6
17
Large
Hole
71
12
12
30
7
Bend
¥Hazardous Voltage
¥Risk of Electric Shock
¥Unplug Treadmill before Assembly
/Disassembly.
To Next Page
